External panels

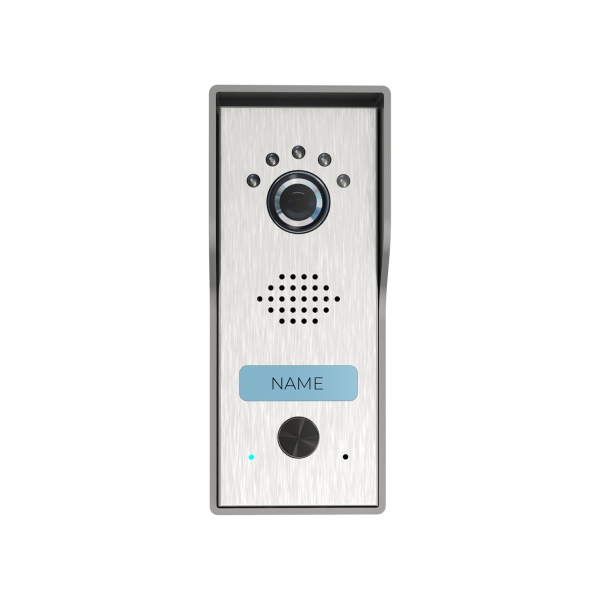

The video outdoor unit to expand ACERO set facilitates access to a property for authorised persons with the help of one button built into the device. The outdoor unit is equipped with a name label. The electric door strike with a maximum current consumption of 300mA is powered directly from the video doorphone, thus reducing the number of wires run to a wicket.
A camera with wide 93° horizontal and 46° vertical viewing angle, built into the ACERO outdoor unit, provides a full view in front of the wicket both during a call and while monitoring.
The outdoor unit equipped with a motion sensor facilitates video recording and photo taking after a movement near the wicket is detected. The incident is recorded on microSD card. The 1920x1080 Mpx Full HD camera registers videos and photos with a very clear image. White LED lighting ensures excellent image quality even after dark.
The 64x153 mm outdoor unit is made of aluminium and has a rain cover. The IP44 rating guarantees durability and weather resistance.
The set may be expanded with an additional outdoor unit (max. 2 per set).
| General information: | |
|---|---|
| Installation technique: | System wieloprzewodowy |
| Number of wires: | 4 |
| Mounting method: | Montaż natynkowy |
| Number of call buttons: | 1 |
| Operation mode: | Przycisk |
| With camera: | tak |
| Resolution of the camera: | 2MP, 1920x1080, 1080p |
| View angle (horizontal) [°]: | 93 |
| View angle (vertical) [°]: | 46 |
| Night lighting: | białe LED |
| With digital door code: | nie |
| Card and proximity tags reader: | nie |
| Label space/information surface: | tak |
| With cover: | tak |
| Degree of protection (IP): | IP44 |
| Material front: | Aluminium |
| Colour: | Srebrny |
| Width [mm]: | 64 |
| Height [mm]: | 153 |
| Depth [mm]: | 46 |
