Junction boxes
New

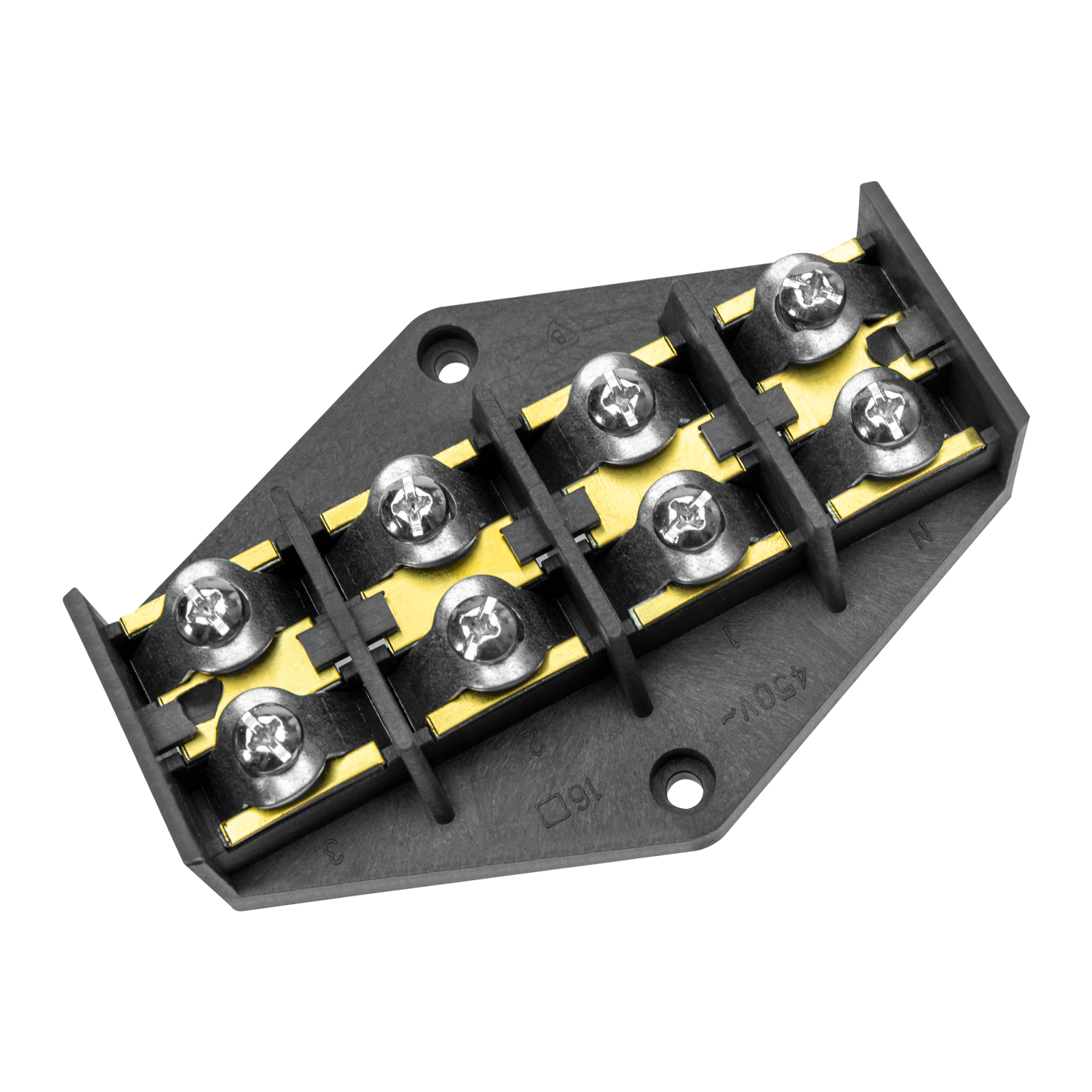

5-way junction box, for connecting 16 mm² cables, used to create electrical connections in installations between wires and various devices, appliances, and machines. They can be installed in junction boxes, electrical boxes, etc. The product is made of black plastic.
| General information: | |
|---|---|
| Drill hole distance centrically: | 26 |
| Explosion-tested version 'Ex e': | Nie |
| Connectable conductor cross section fine-strand without cable end sleeve: | 1..16 |
| Connectable conductor cross section fine-strand with cable end sleeve: | 1..10 |
| Connectable conductor cross section solid-core: | 1..16 |
| Connectable conductor cross section multi-wired: | 1..10 |
| Rated current In [A]: | 76 |
| Rated voltage [V]: | 400 |
| Type of electrical connection 1: | Połączenie śrubowe |
| Type of electrical connection 2: | Inne |
| Number of poles: | 5 |
| Number of clamp positions per pole: | 2 |
| Mounting method: | Montaż bezpośredni |
| Material insulation body: | Tworzywo termoplastyczne |
| Inflammability class of insulation material according to with UL94: | Inne |
| Halogen free: | Nie |
| Width [mm]: | 75 |
| Height [mm]: | 22 |
| Depth [mm]: | 22 |
| Closing plate required: | Nie |
| Colour: | Czarny |
| Transparent: | Nie |
