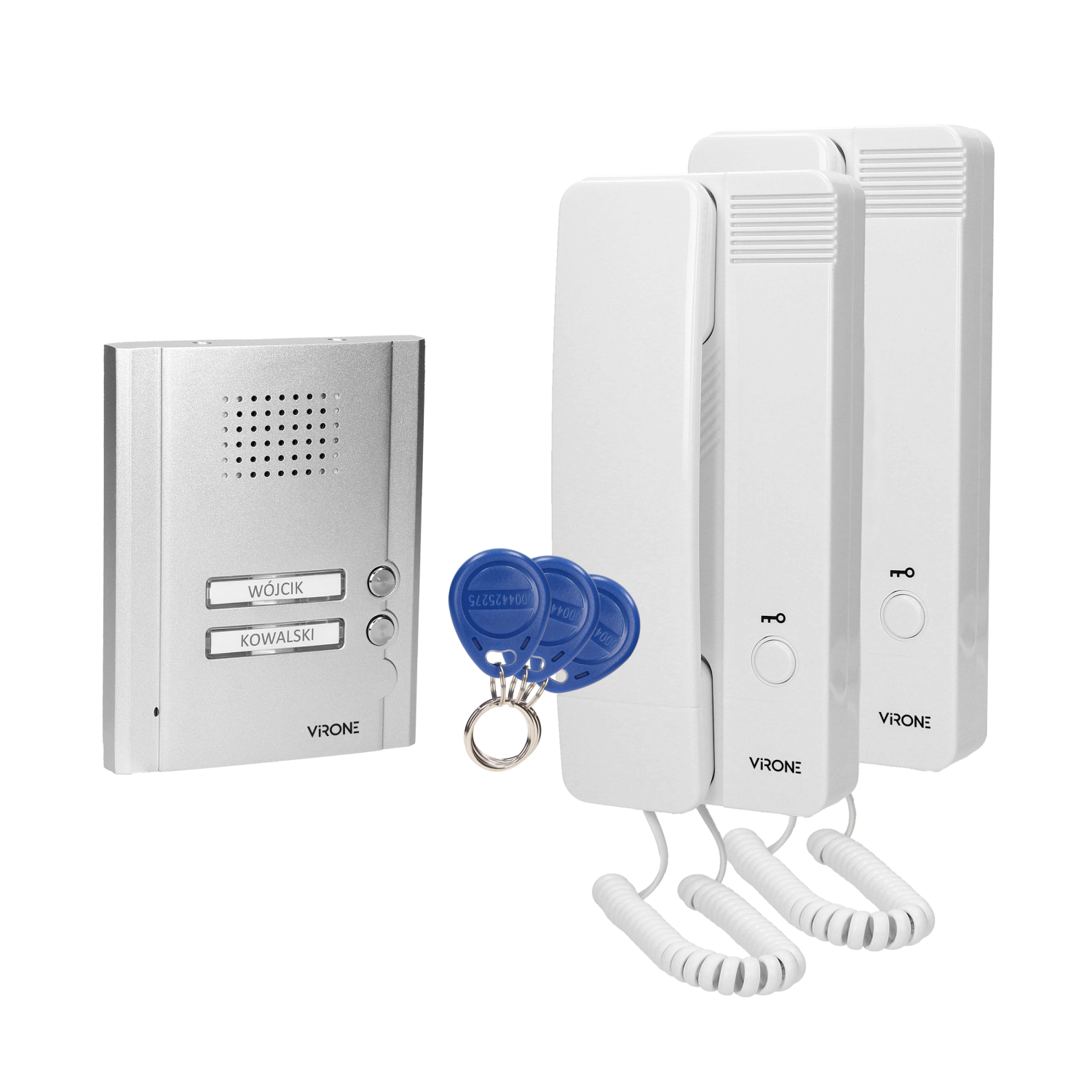

Two-family doorphone set suitable for flush-mounting. Its aluminum external panel has got a nameplate. The lock is released with the use of proximity tags. The handset has got an integrated power supply unit and power cable. Electric strike does not require any additional power supply.
| General information: |
|---|
| Type: | multi-family |
| Installation technique: | Multi-wire system |
| Type of transmission: | wired |
| Current supply: | AC adapter |
| Number of indoor stations: | 2 |
| Number of outdoor stations: | 1 |
| Operation door lock: | Yes |
| Current supply of the electric strike: | from the external panel |

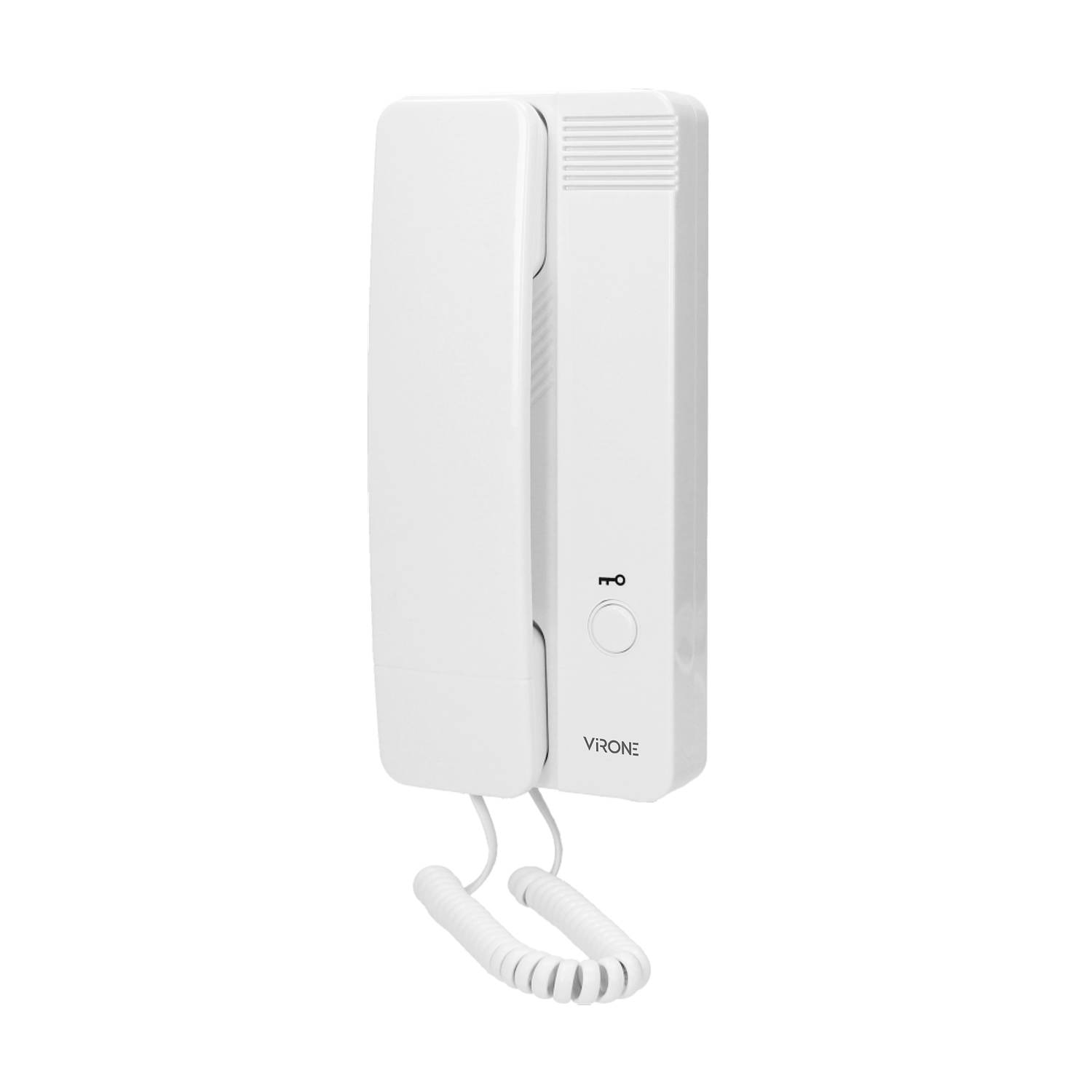

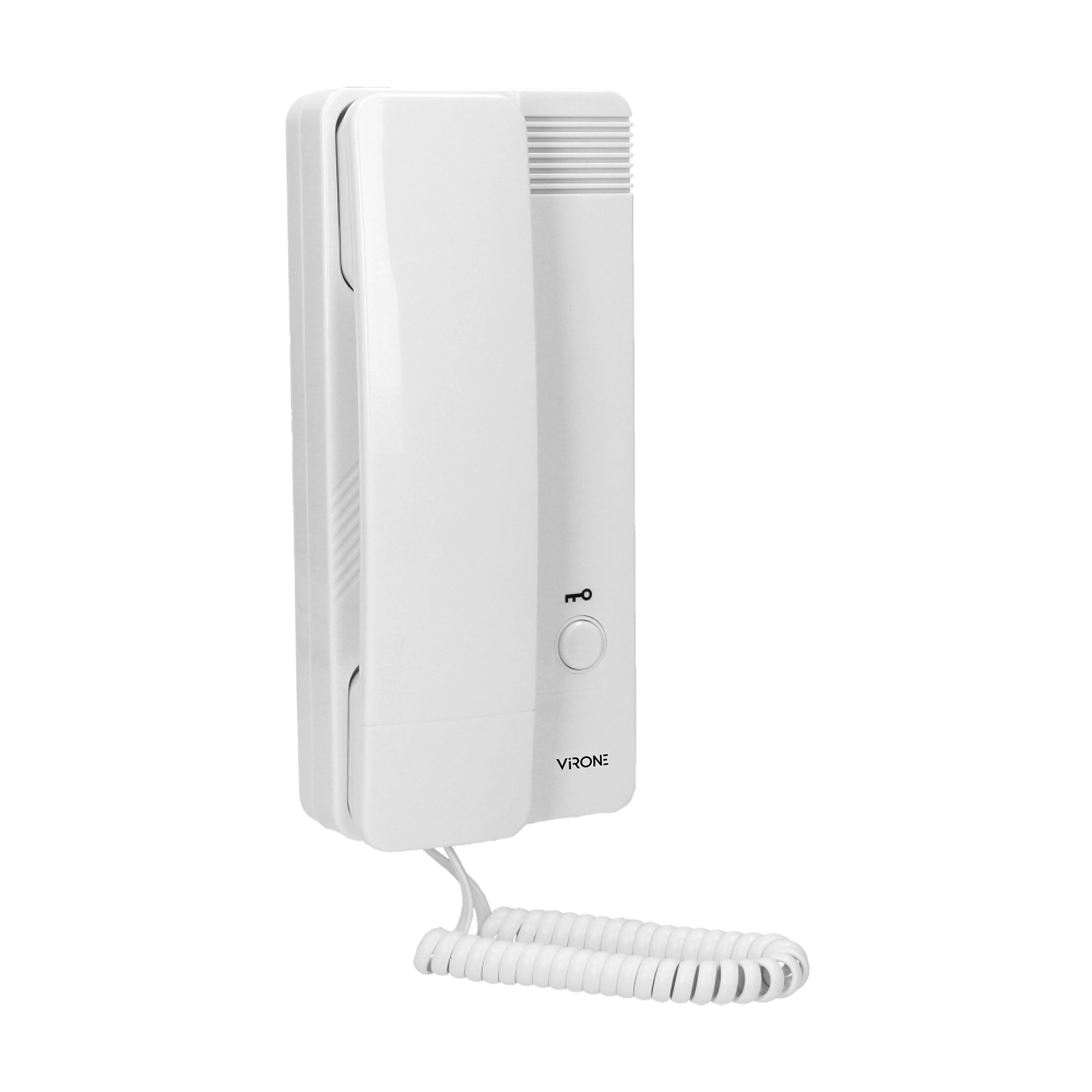

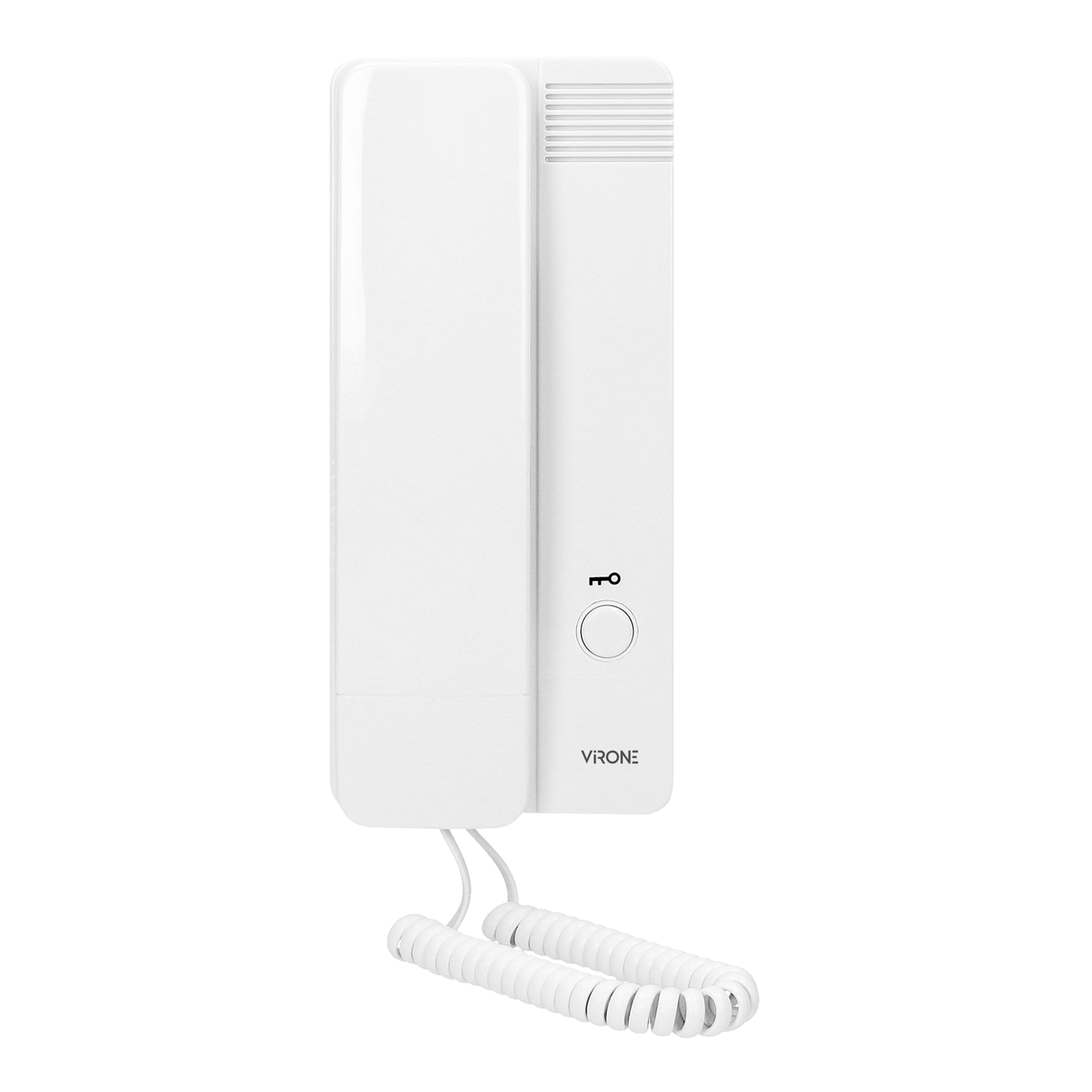

| Indoor panel: |
|---|
| Mounting method - indoor station: | Surface mounted (plaster) |
| Number of ringtones: | 1 |
| Material: | Plastic |
| Indoor station colour: | White |

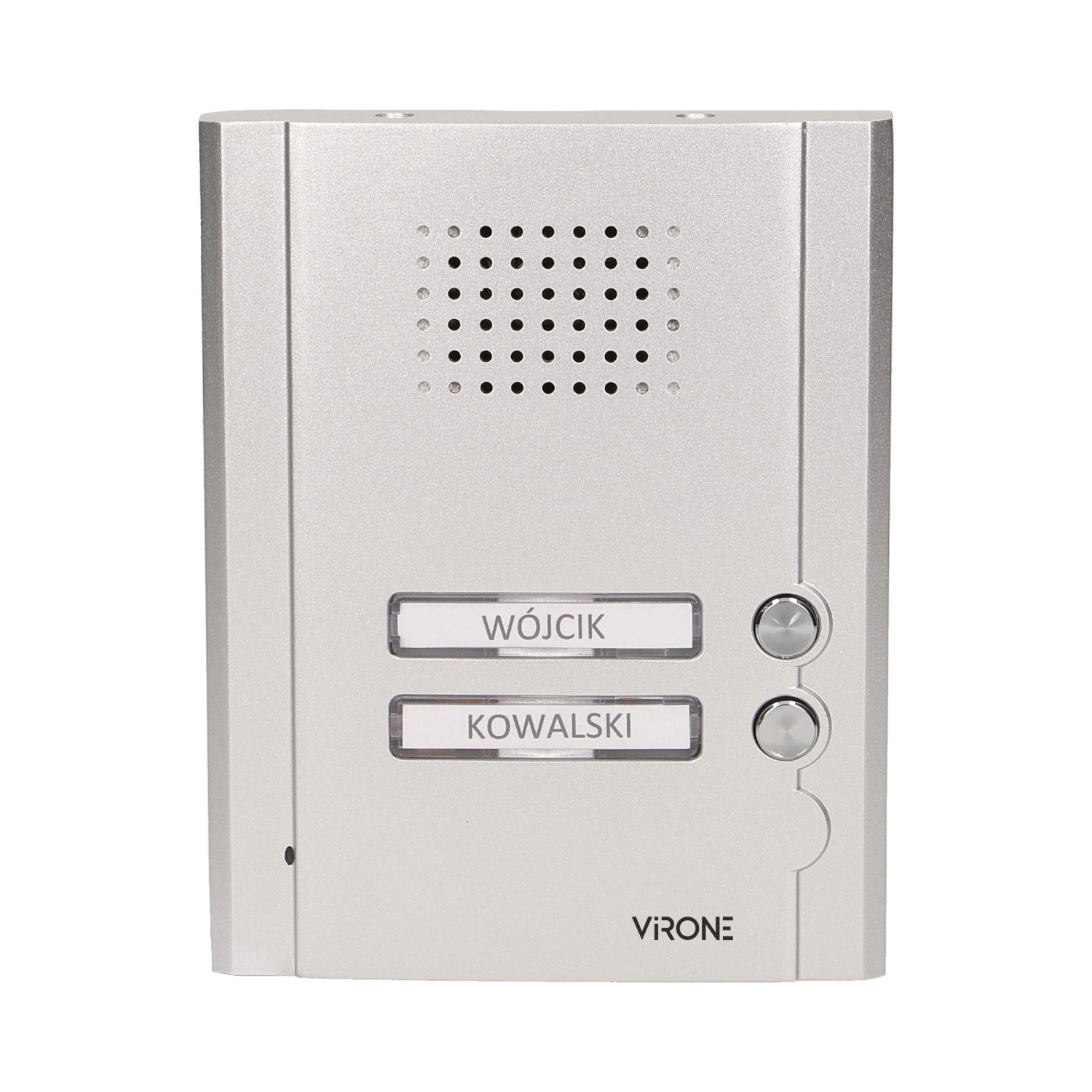

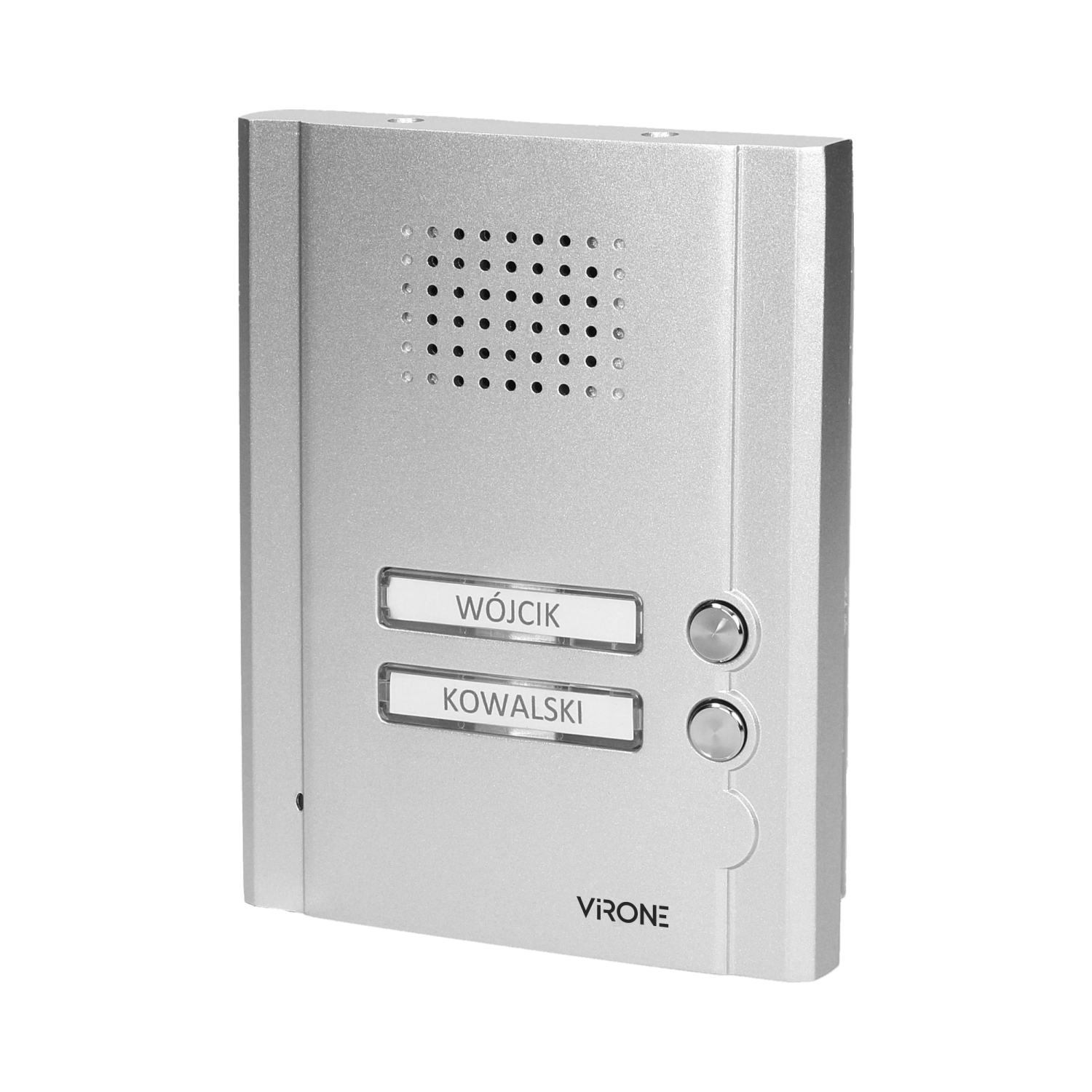

| External panel: |
|---|
| Number of call buttons: | 2 |
| Mounting method: | Flush mounted (plaster) |
| Card and proximity tags reader: | Yes |
| Frequency of proximity cards and tags: | 125 kHz |
| Label space/information surface: | Yes |
| Material front: | Aluminium |
| Colour: | Aluminium |
| Width: | 110 mm |
| Height: | 140 mm |
| Depth: | 35 mm |
| Built-in width: | 100 mm |
| Built-in height: | 130 mm |
| Built-in depth: | 18 mm |
