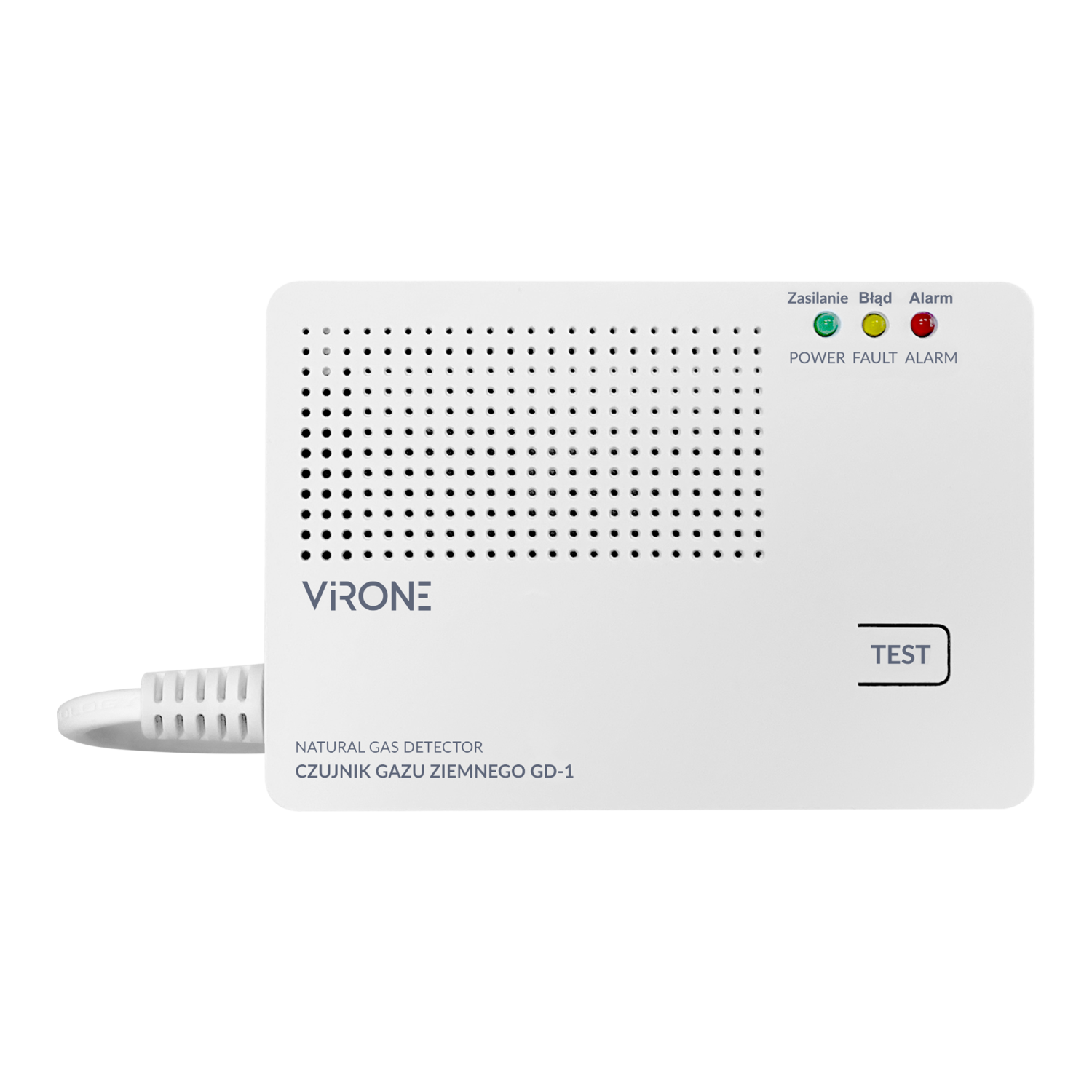

The GD-1 natural gas detector is designed for continuous monitoring of enclosed spaces for the presence of natural gas (CH₄). It is suitable for use in houses, apartments, commercial premises, and any locations where there is a risk of gas leakage. The built-in optical and acoustic alarm immediately alerts the user when gas is detected, enabling a quick response and significantly increasing the safety of occupants and property.
Thanks to surface mounting, installation is quick and does not require any specialist modifications to the existing infrastructure. For proper detection, it is recommended to install the detector approximately 15 cm below the ceiling. The device operates autonomously and only requires a 230 V AC power supply.
The GD-1 model is equipped with a TEST button, allowing the user to verify correct operation at any time. Clear LED indicators and intuitive diagnostics make it easy to monitor the device status, while mains-powered operation eliminates the need for regular battery replacement. The sensor lifespan is 5 years, ensuring long-term protection against potential hazards caused by natural gas leakage.
| General information: | |
|---|---|
| Loudness [dB(A)]: | Stacjonarny |
| Response temperature [°C]: | Skład gazu |
| Smoke switcher: | CH4 |
| Mounting method: | 230 |
| Self-adhesive [°C]: | -10 |
| Separate socket needed [°C]: | 50 |
| Cable entry: | Tak |
| Standalone: | Tak |
| Audible Alarm [dB]: | ≥85dB/1m |
| Alarm level: | ≤25%LEL |
| Degree of protection (IP): | IP20 |
| Length [mm]: | 112 |
| Width [mm]: | 32 |
| Height/depth [mm]: | 79 |
| Sensor lifetime: | 5 lat |
| Sensor type: | półprzewodnikowy |
| Compliant standards: | EN 50194-1:2023 / PN-EN 50194-1:2024-07 |
| Type of test-/pause button: | Przycisk testowy |
| Mounting method: | Montaż powierzchniowy |
| Relative humidity [%RH]: | 10%≤95 |
| Working temperature [°C]: | -10~ 50 |
| Ambient pressure [kPa]: | 101.3 |
| Frequency [Hz]: | 50/60 |
