Other sensors

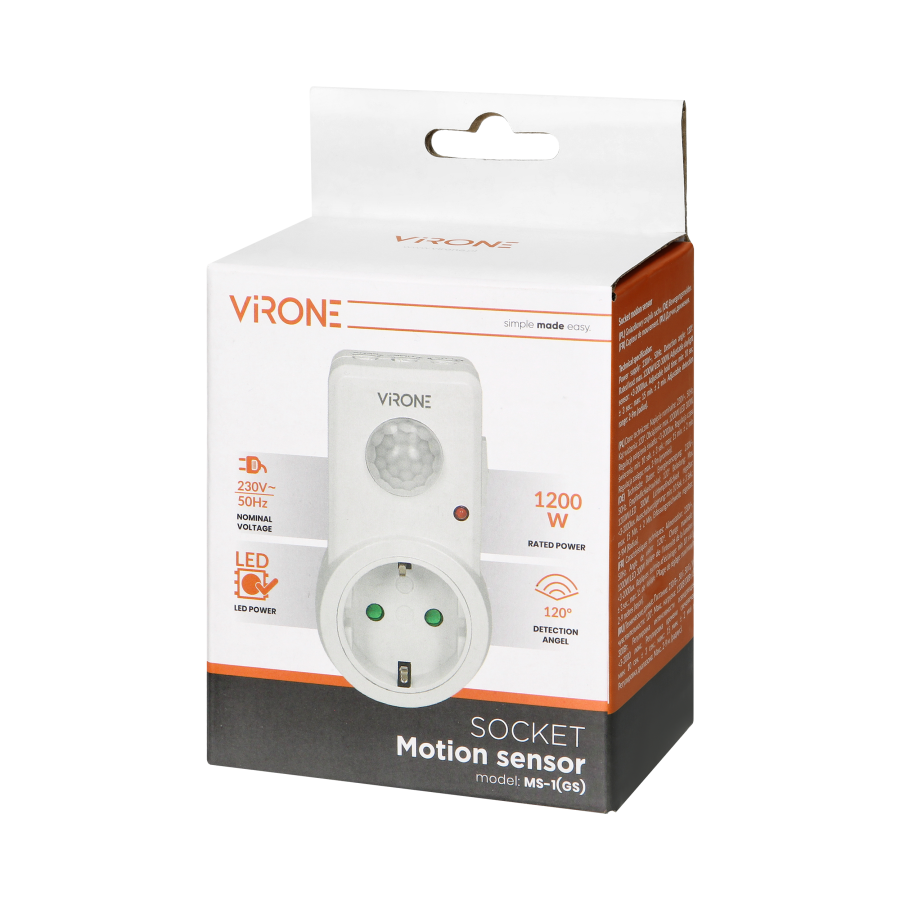

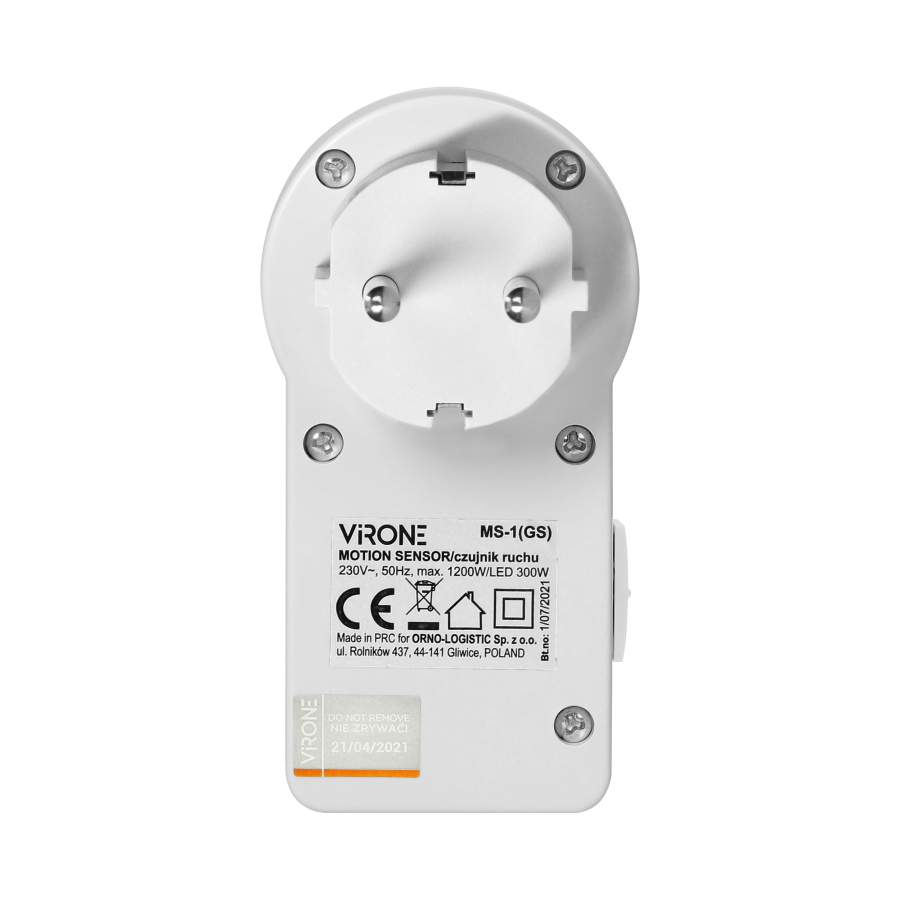

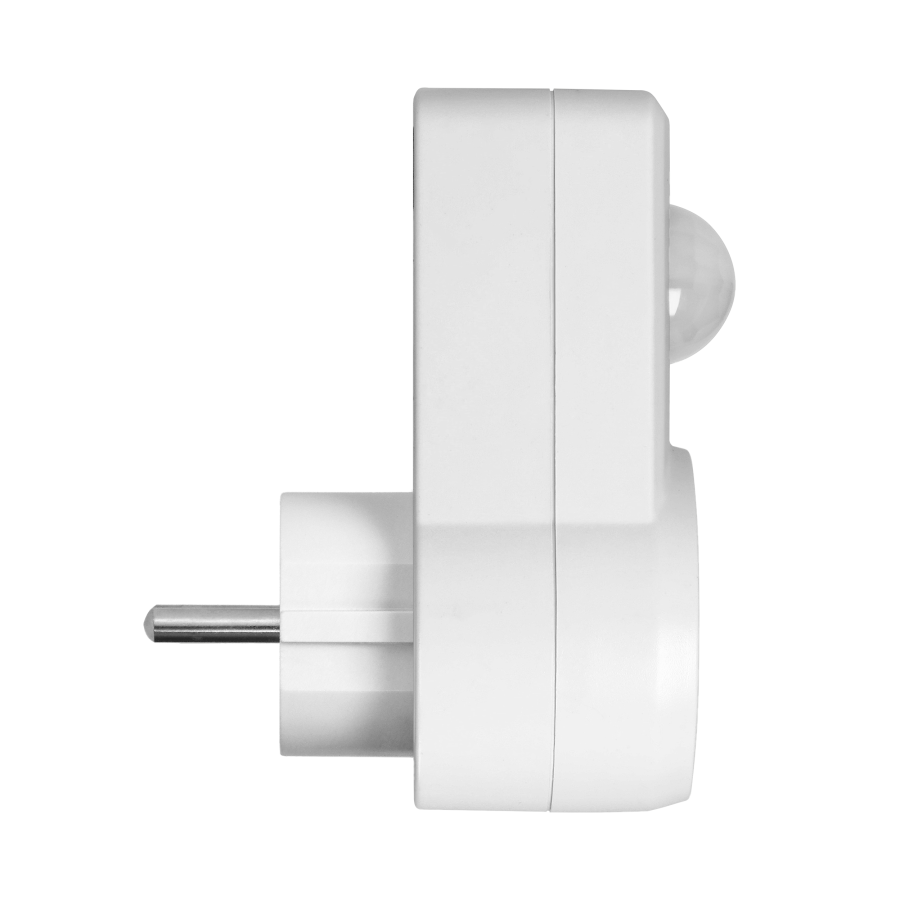

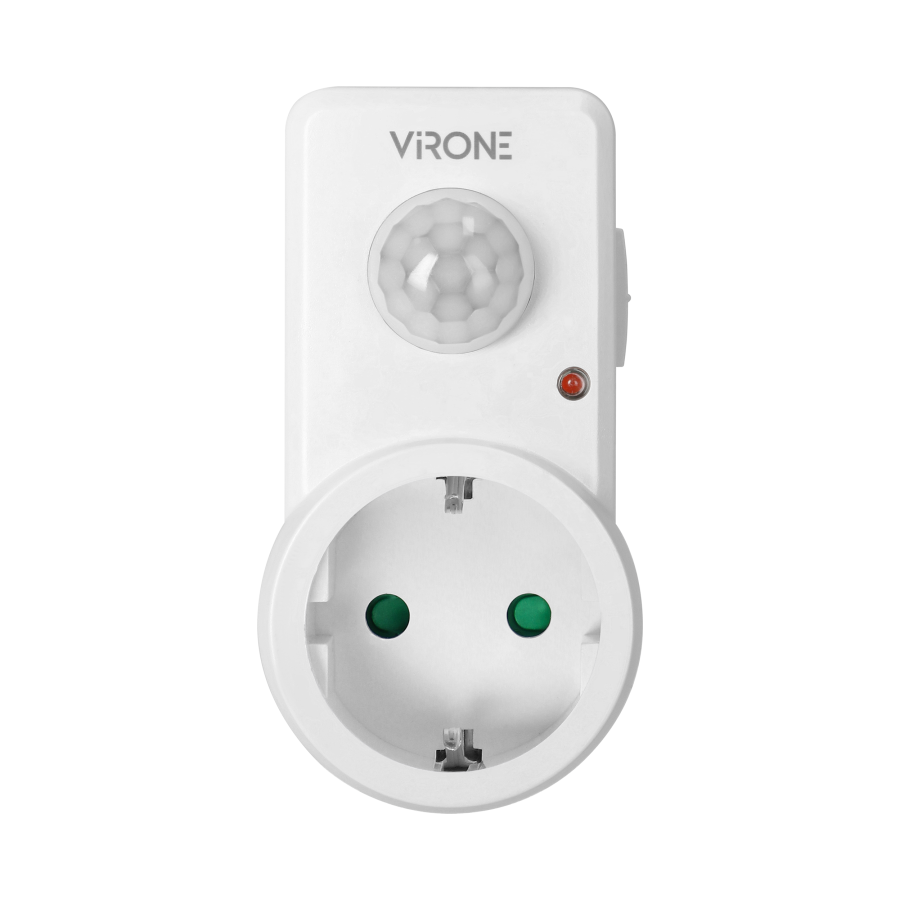

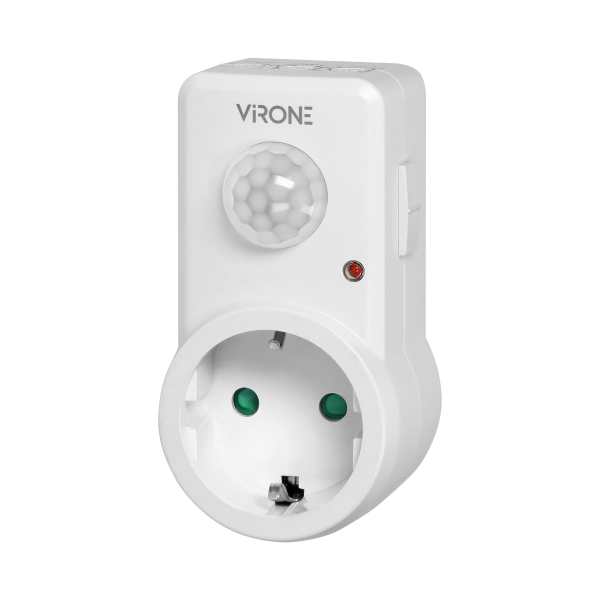

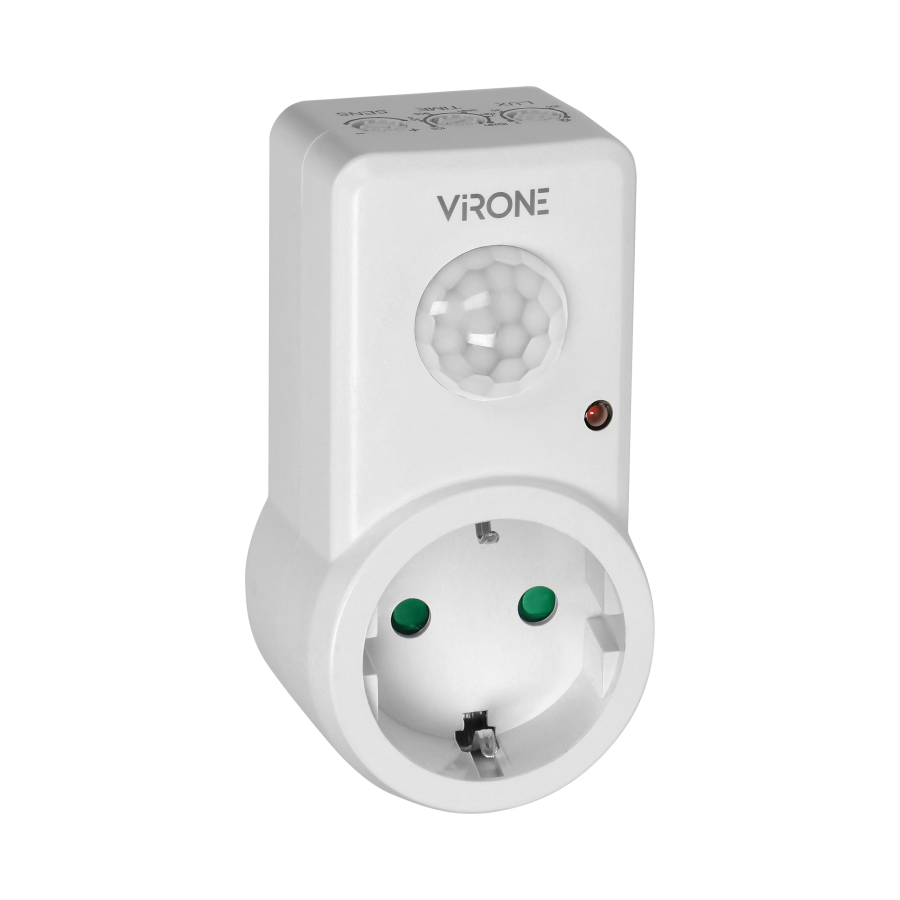

An electrical device that is installed in a standard wall socket. Thanks to the use of a PIR sensor, the device helps to automate the switching on and off of electrical devices after motion detection. The receivers are switched on at the appropriate daylight intensity.
| General information: | |
|---|---|
| Type of sensor: | Infrared |
| Detection angle: | 120° |
| Detection range: | 9 m |
| Nominal voltage: | 230V~, 50Hz |
| Max. load: | 1200 W |
| Max. load of the LED light source: | 300 W |
| Degree of protection (IP): | 20 |
| Colour: | white |

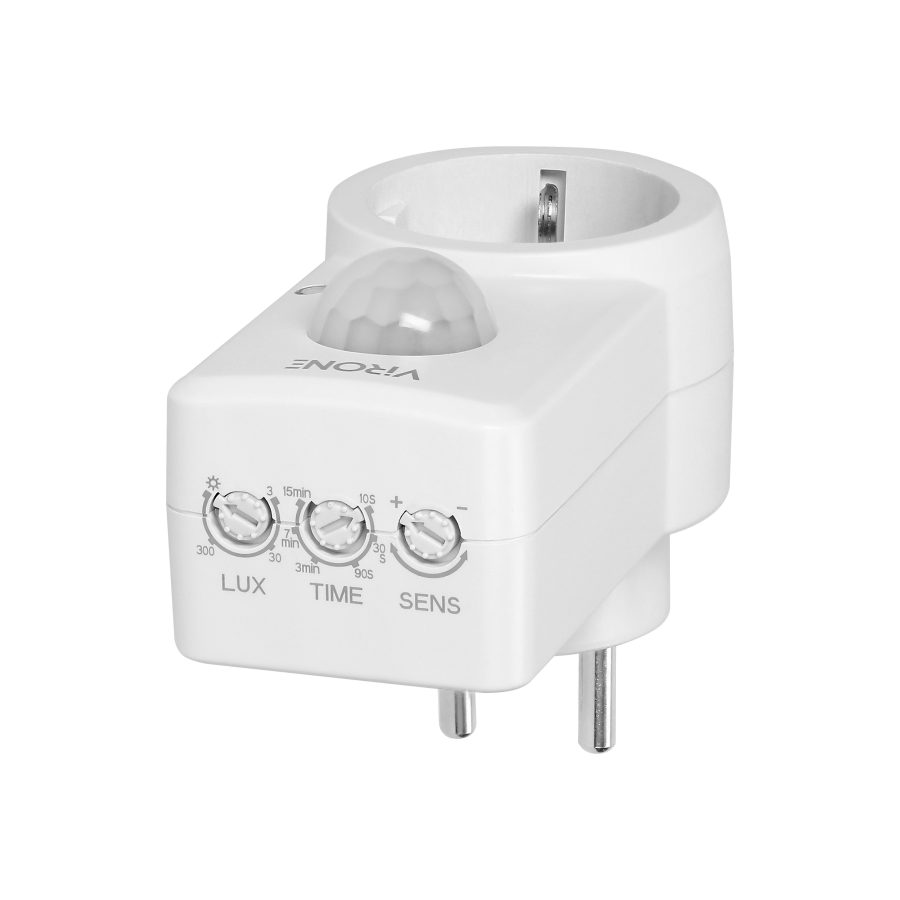

| Adjustable daylight sensor (LUX): | Yes |
| Adjustable time setting (TIME): | Yes |
| Adjustment of motion detection range (SENS): | Yes |
| Relay output: | No |
| Presence detector: | No |
| Working temperature: | -20℃~+40℃ |
| Installation: | To the Schuko socket |
| Dimensions - width: | 45 mm |
| Dimensions - height: | 98.3 mm |
| Dimensions - depth: | 81.5 mm |
| Lighting time adjustment range (TIME): | min.: 10 sek. ± 3 sek., max.: 15min.±2min |
| Daylight sensor adjustment range (LUX): | <3—2000lux |
| Other features: | SENS detection range adjustment: 2-9M |
