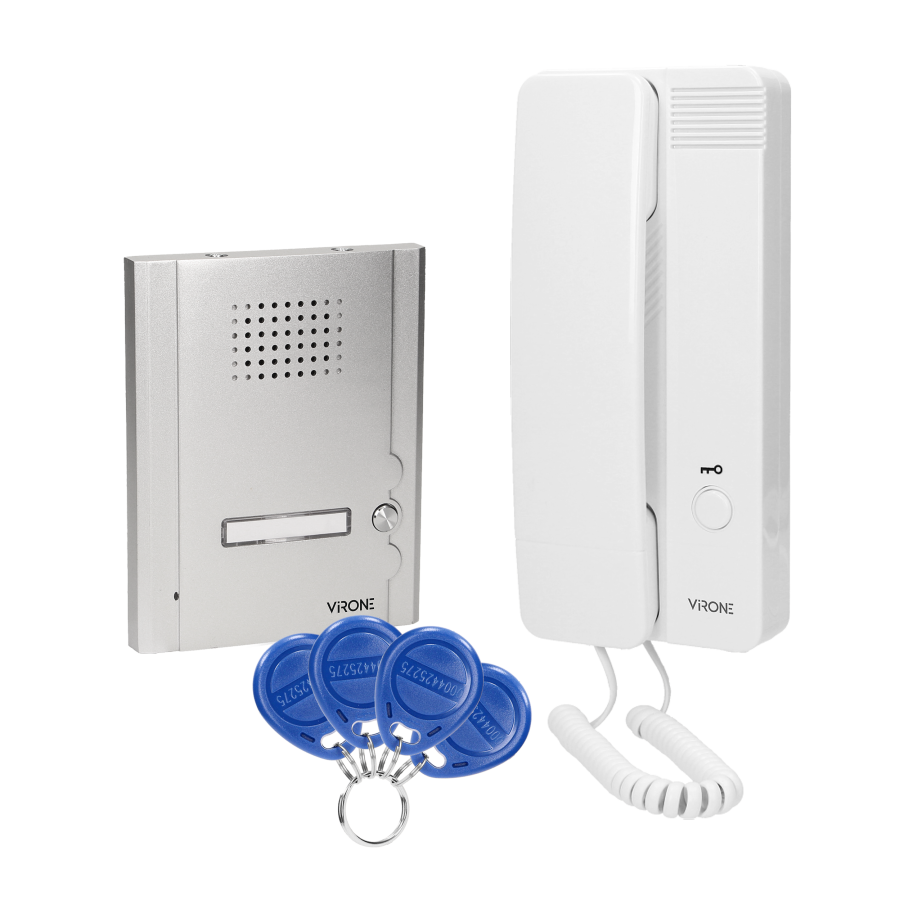

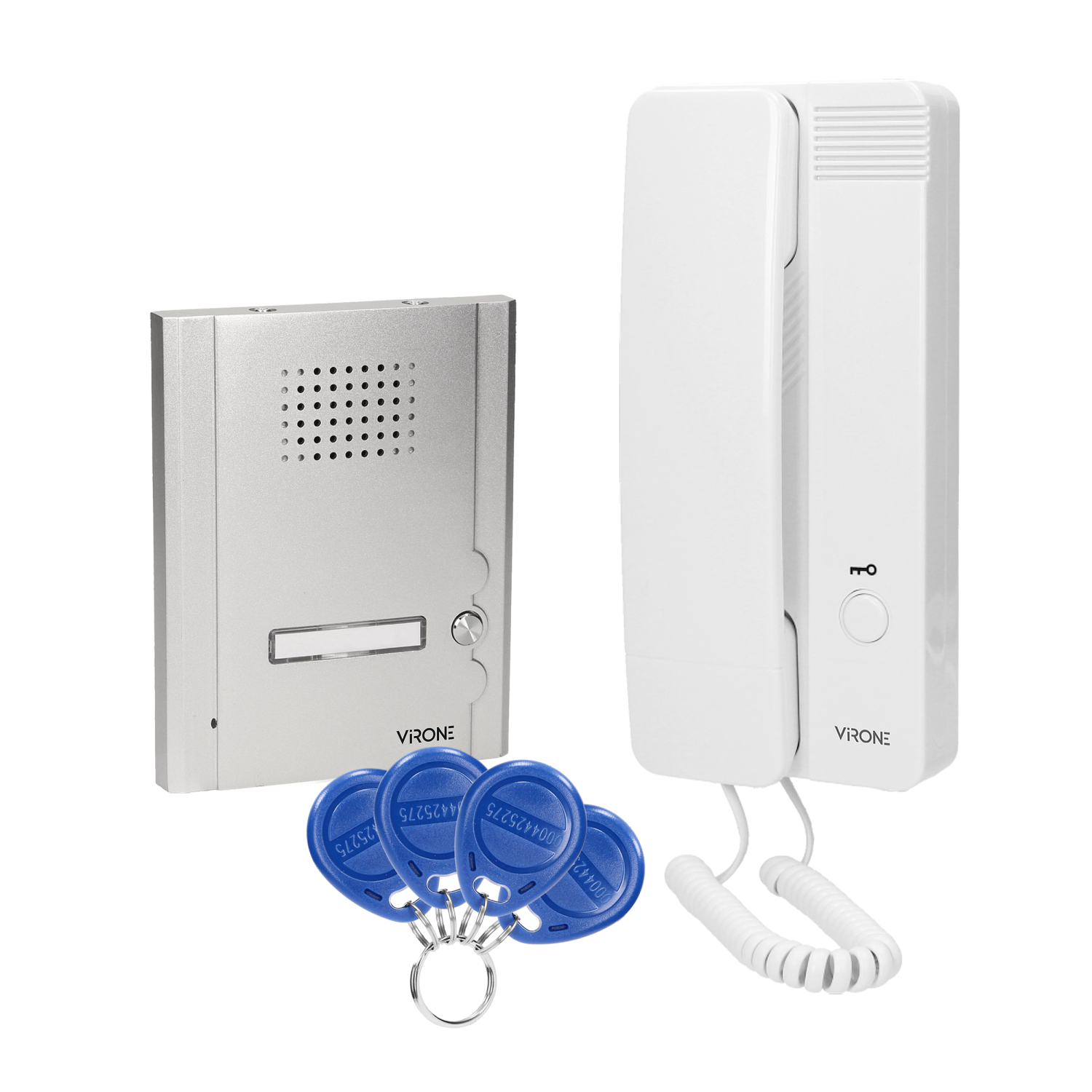

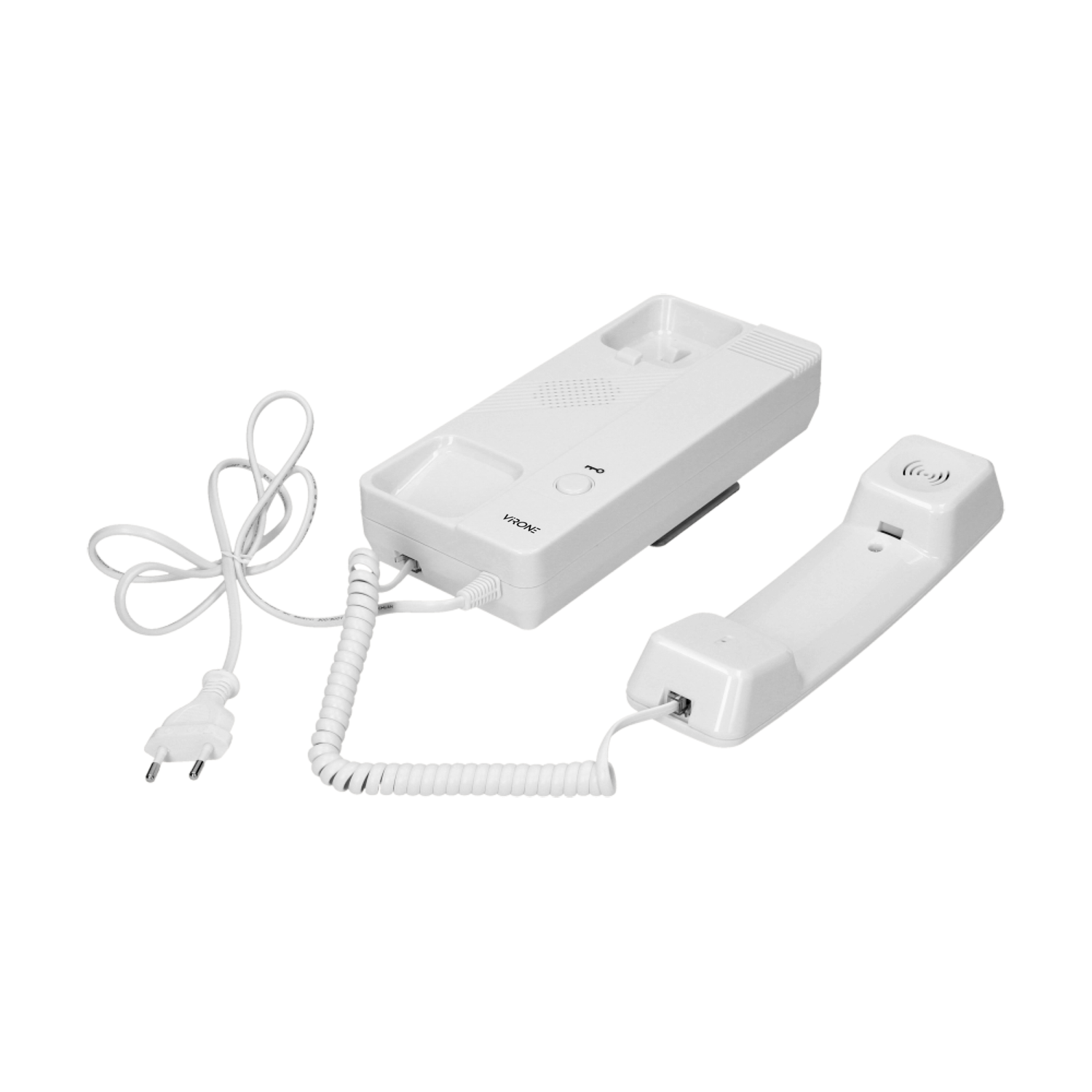

Single-family doorphone set suitable for flush-mounting. Its aluminum external panel has got a nameplate. The lock is released with the use of proximity tags. The handset has got an integrated power supply unit and power cable. Electric strike does not require any additional power supply.
| General information: |
|---|
| Type: | jednorodzinny |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage [V]: | 12V DC |
| Type of transmission: | przewodowy |
| Installation technique: | System wieloprzewodowy |
| Number of wires (*from outdoor station to electric strike): | 4 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 1 |
| Expandable to max. number of outdoor stations: | 1 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| : | z panelem zewnętrznym |
| With automatic door opener: | nie |

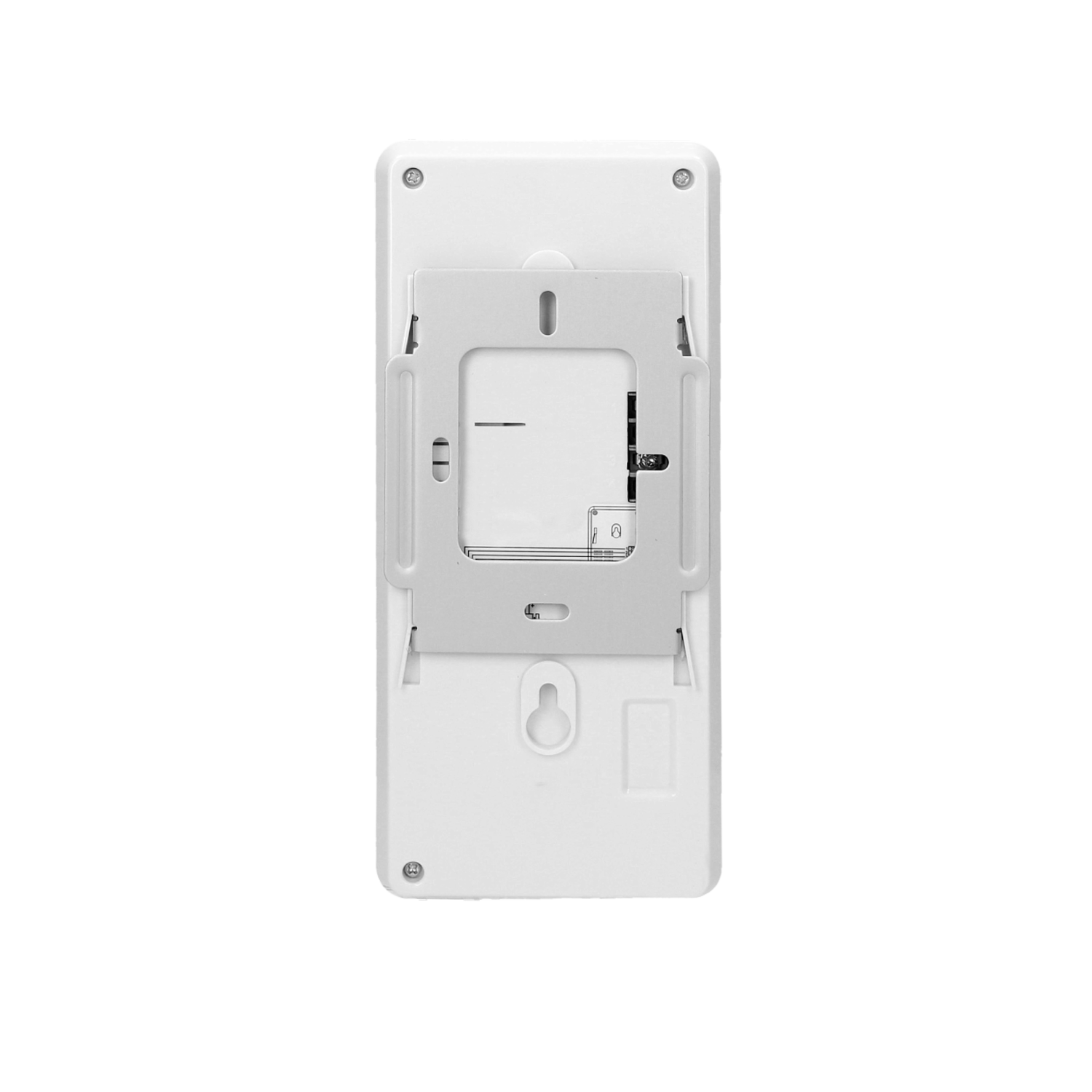

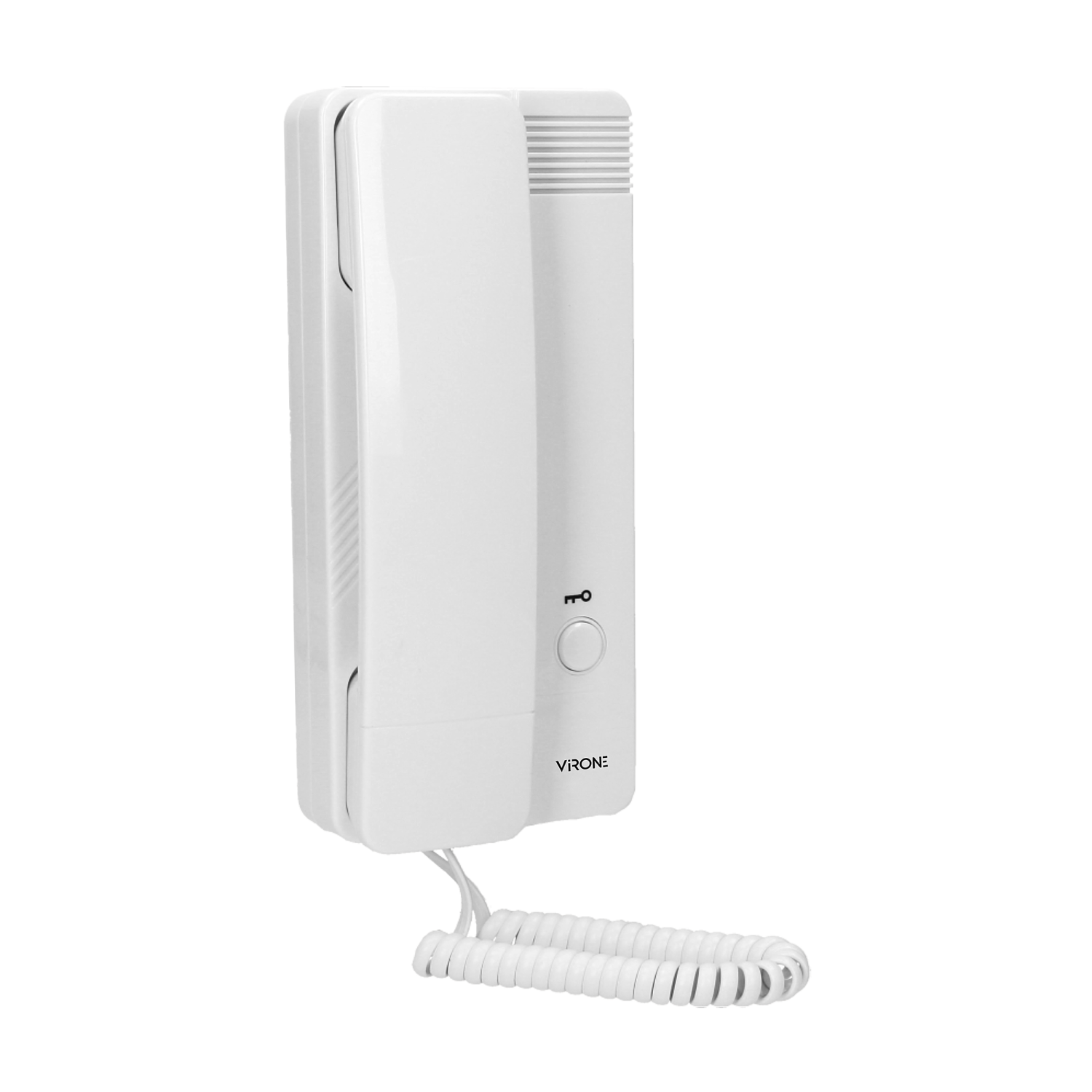

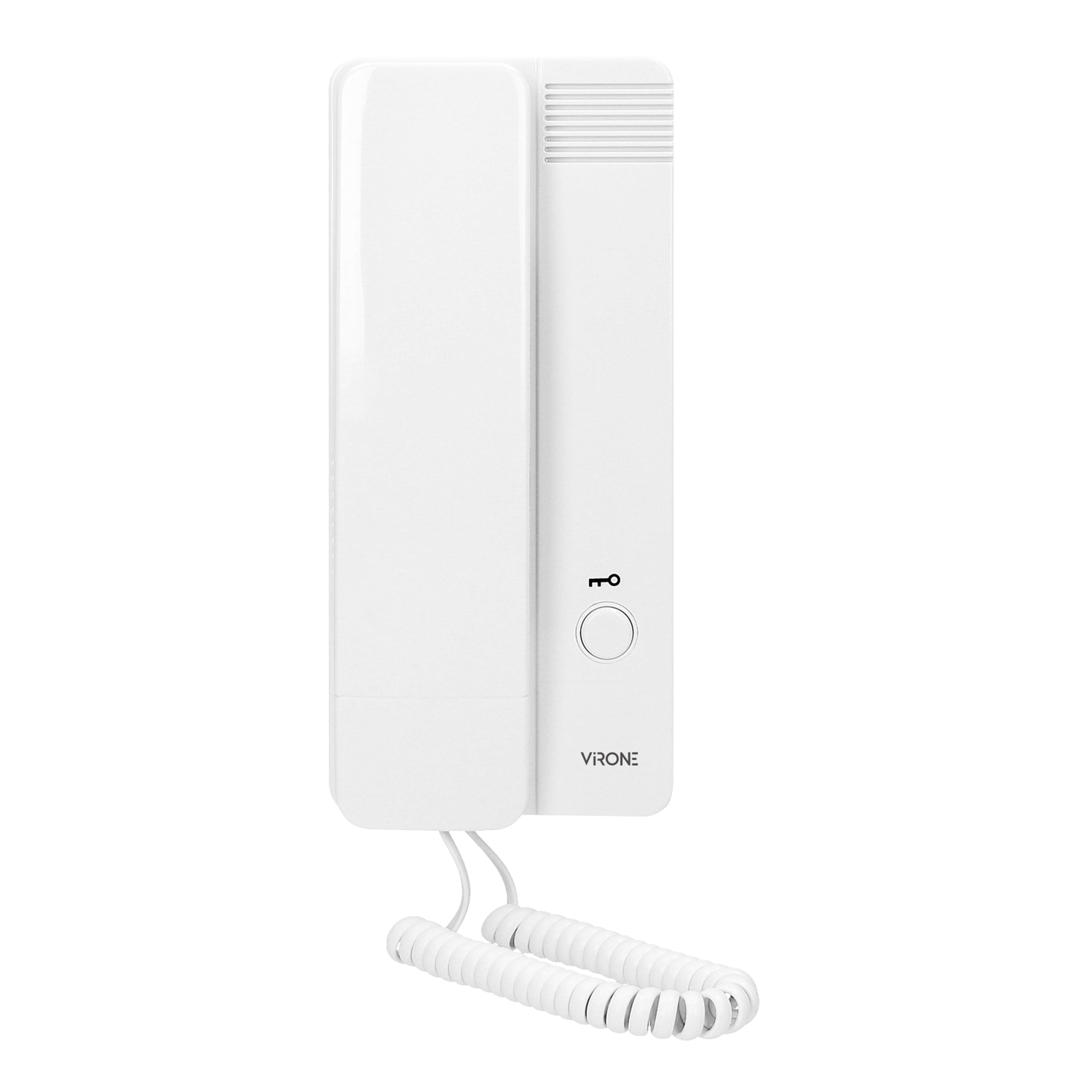

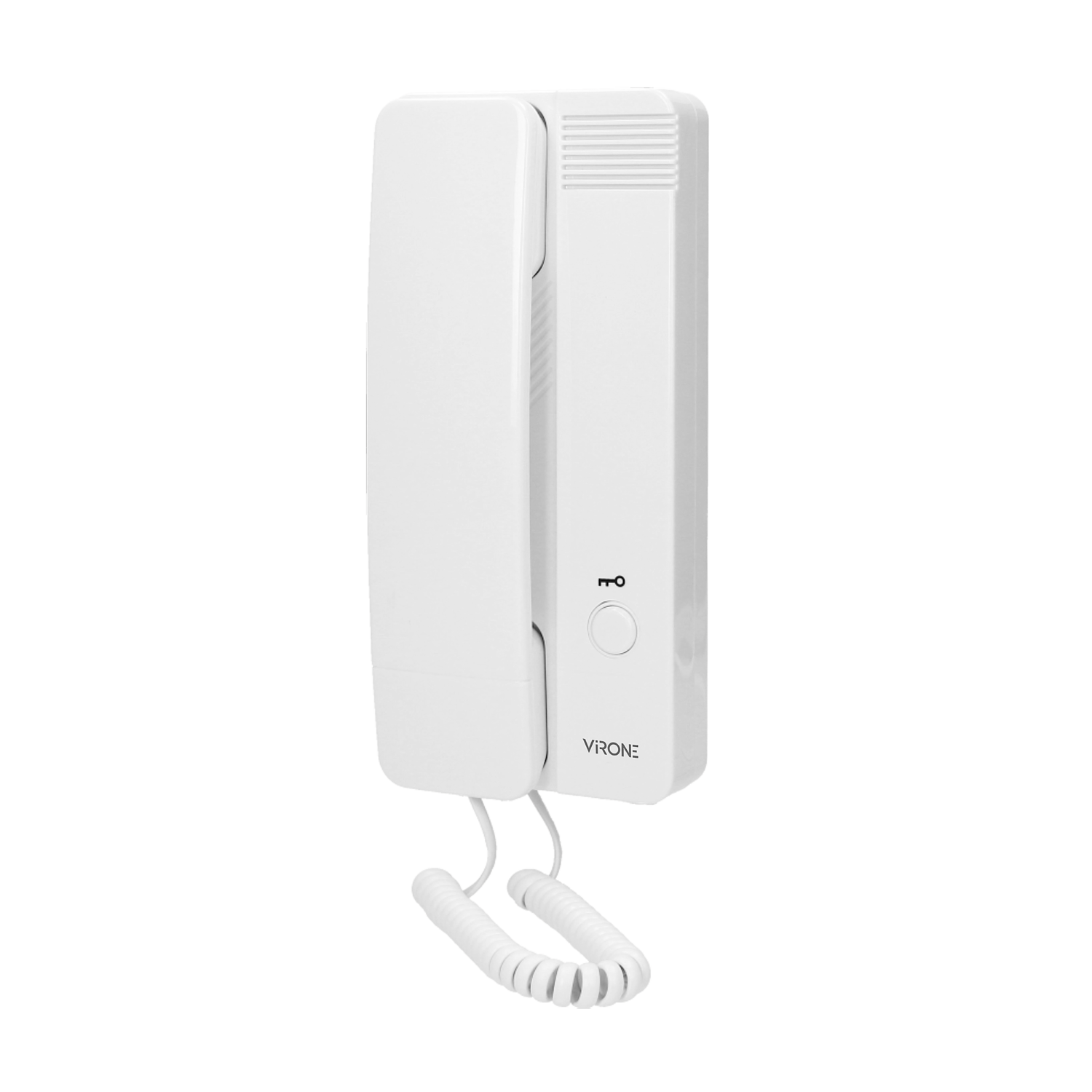

| Indoor panel: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | nie |
| Internal communication: | nie |
| Number of ringtones: | 1 |
| Loudness control: | nie |
| Mutable call tone: | nie |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Biały |
| Width [mm]: | 100 |
| Height [mm]: | 217 |
| Depth [mm]: | 45 |

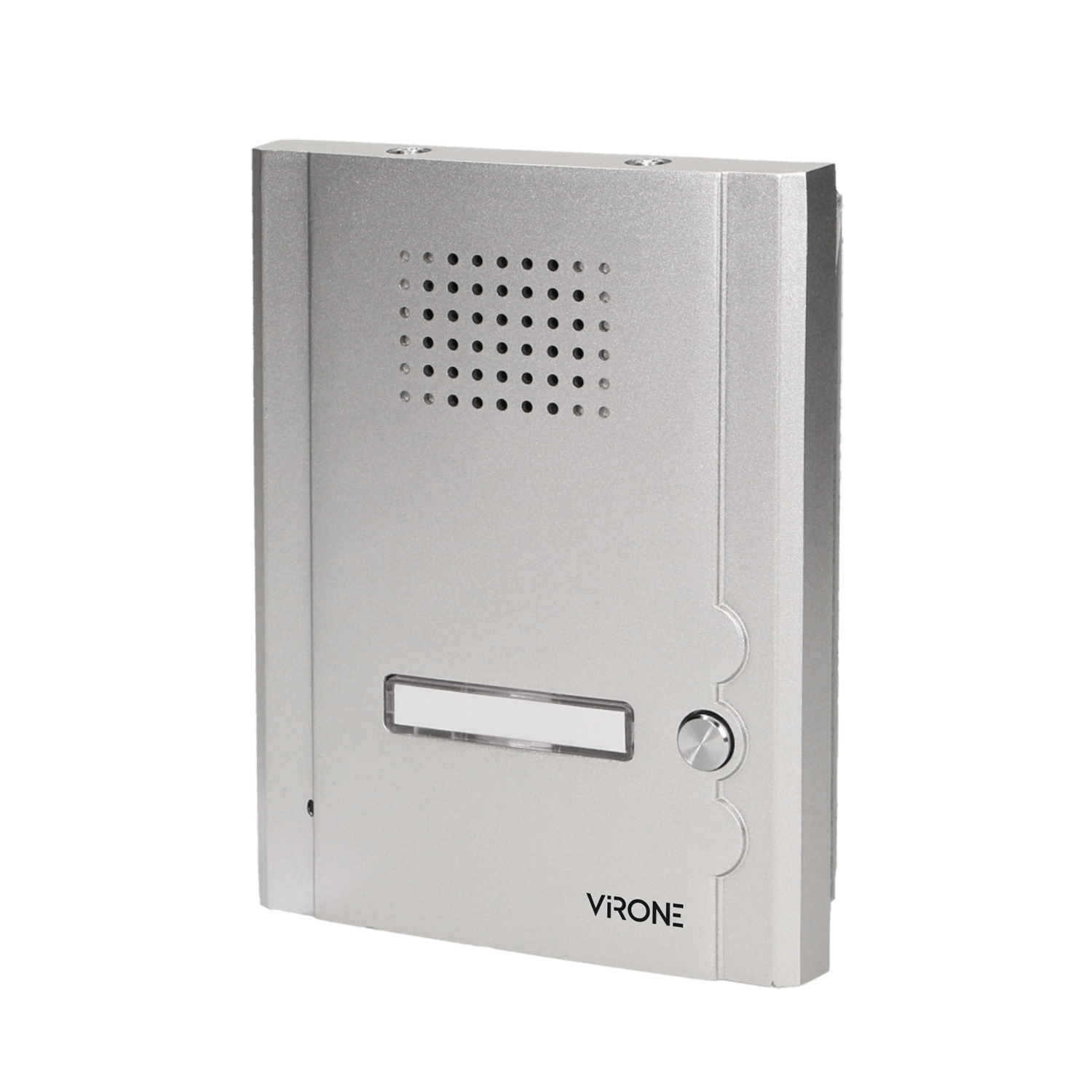

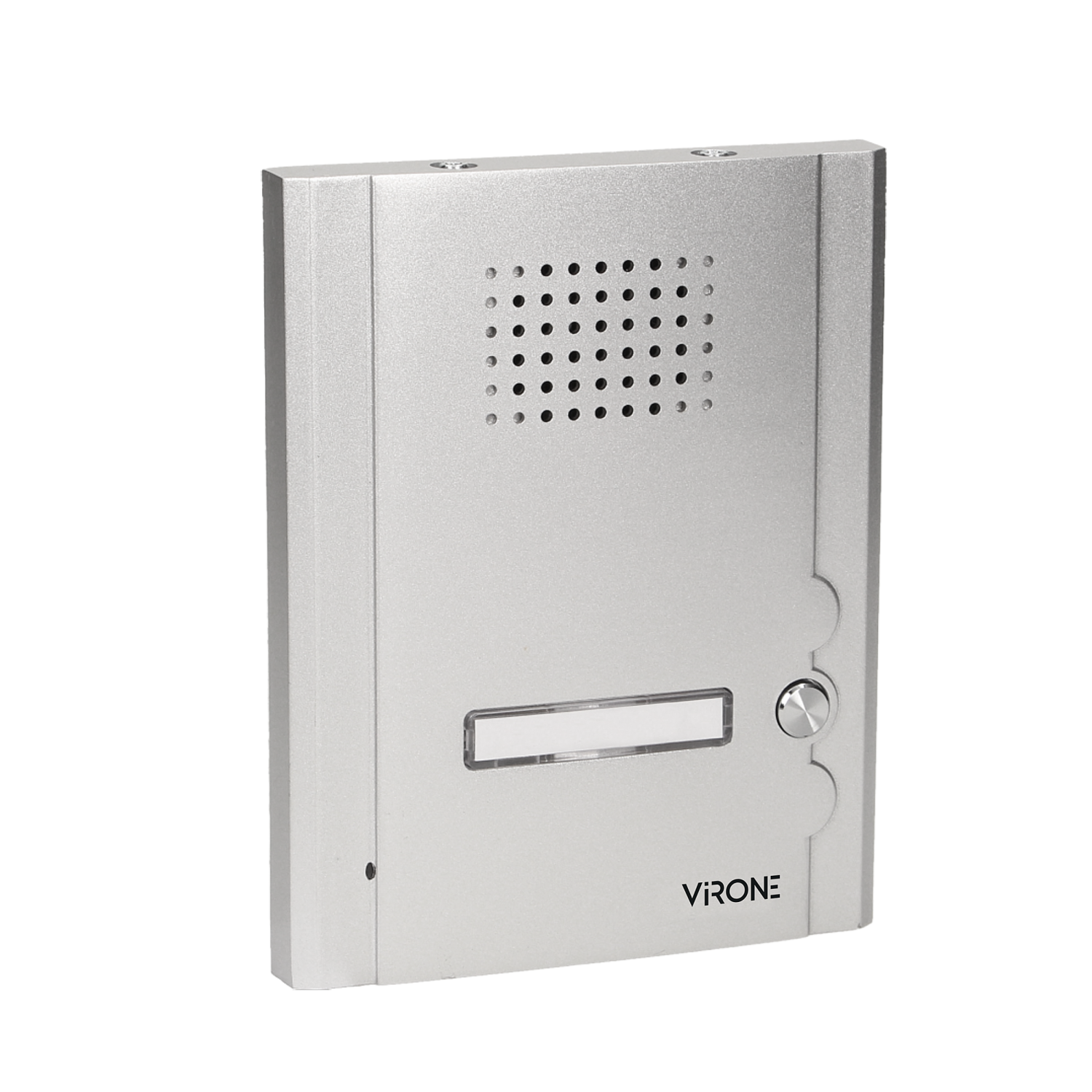

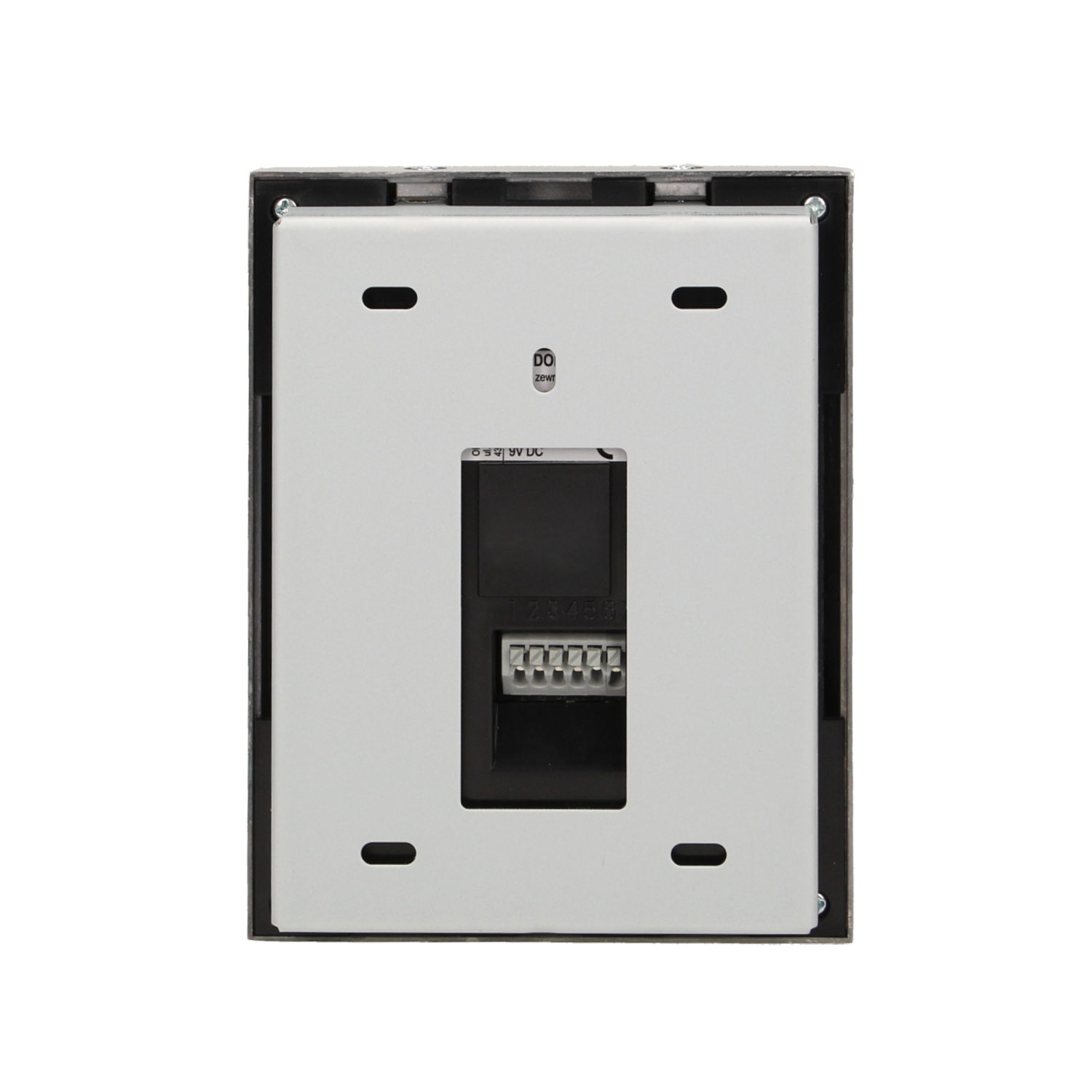

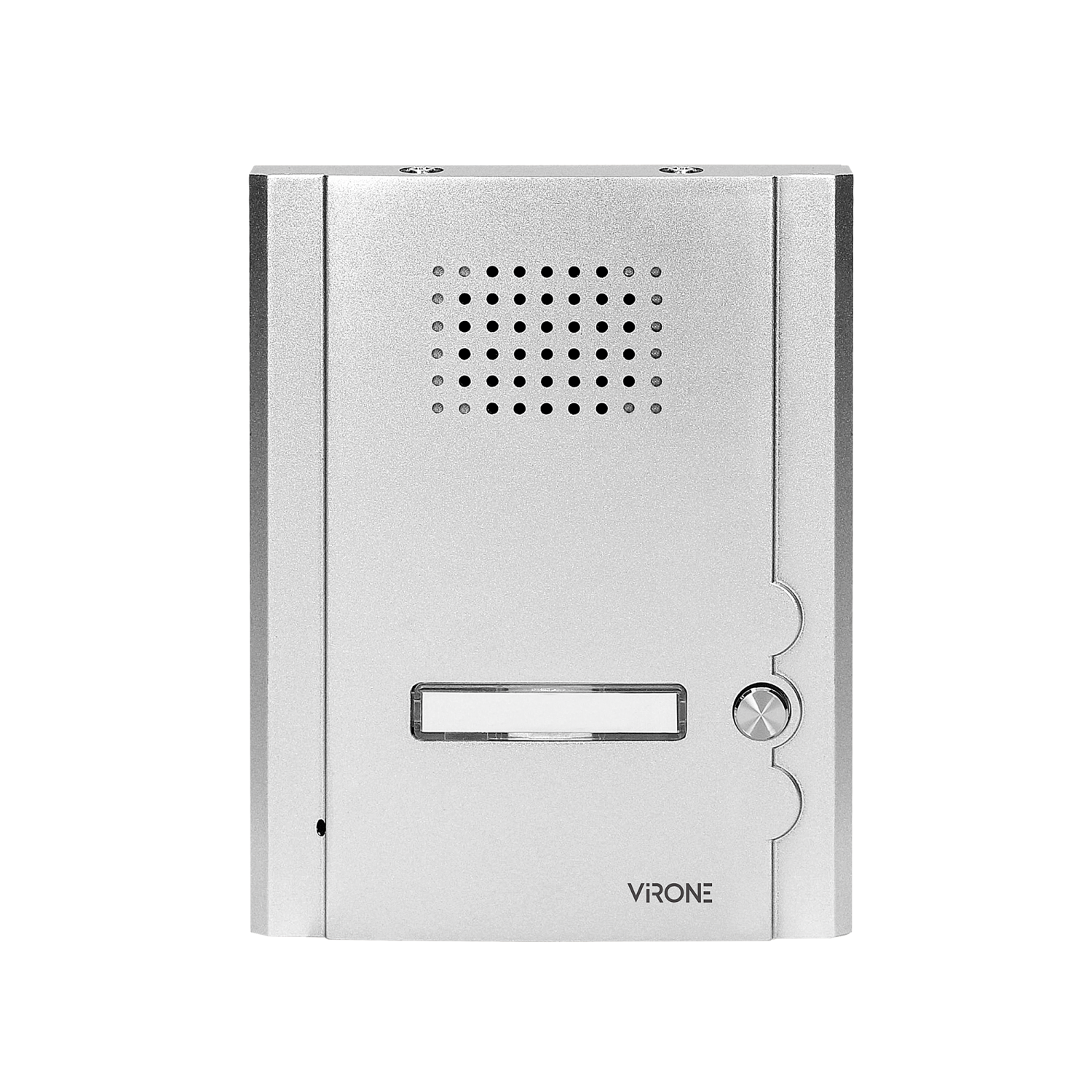

| External panel: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż podtynkowy |
| With digital door code: | nie |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 125kHz |
| Label space/information surface: | tak |
| With cover: | nie |
| Degree of protection (IP): | IP44 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Srebrny |
| Width [mm]: | 110 |
| Height [mm]: | 140 |
| Depth [mm]: | 35 |

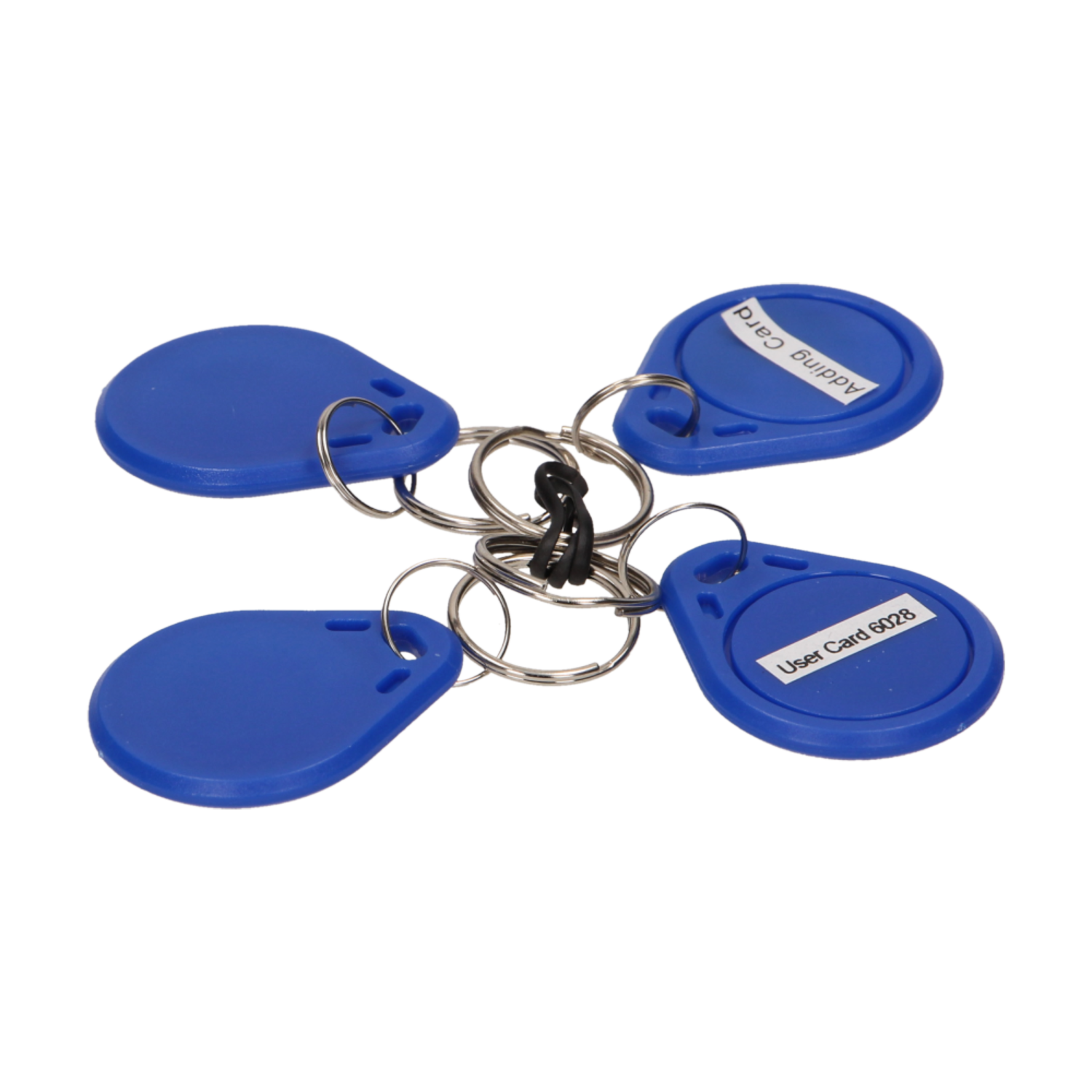

| Other features: | RFID - max. 100 użytkowników (breloki w zestawie: 2 użytkownika + 2 administracyjne) |
