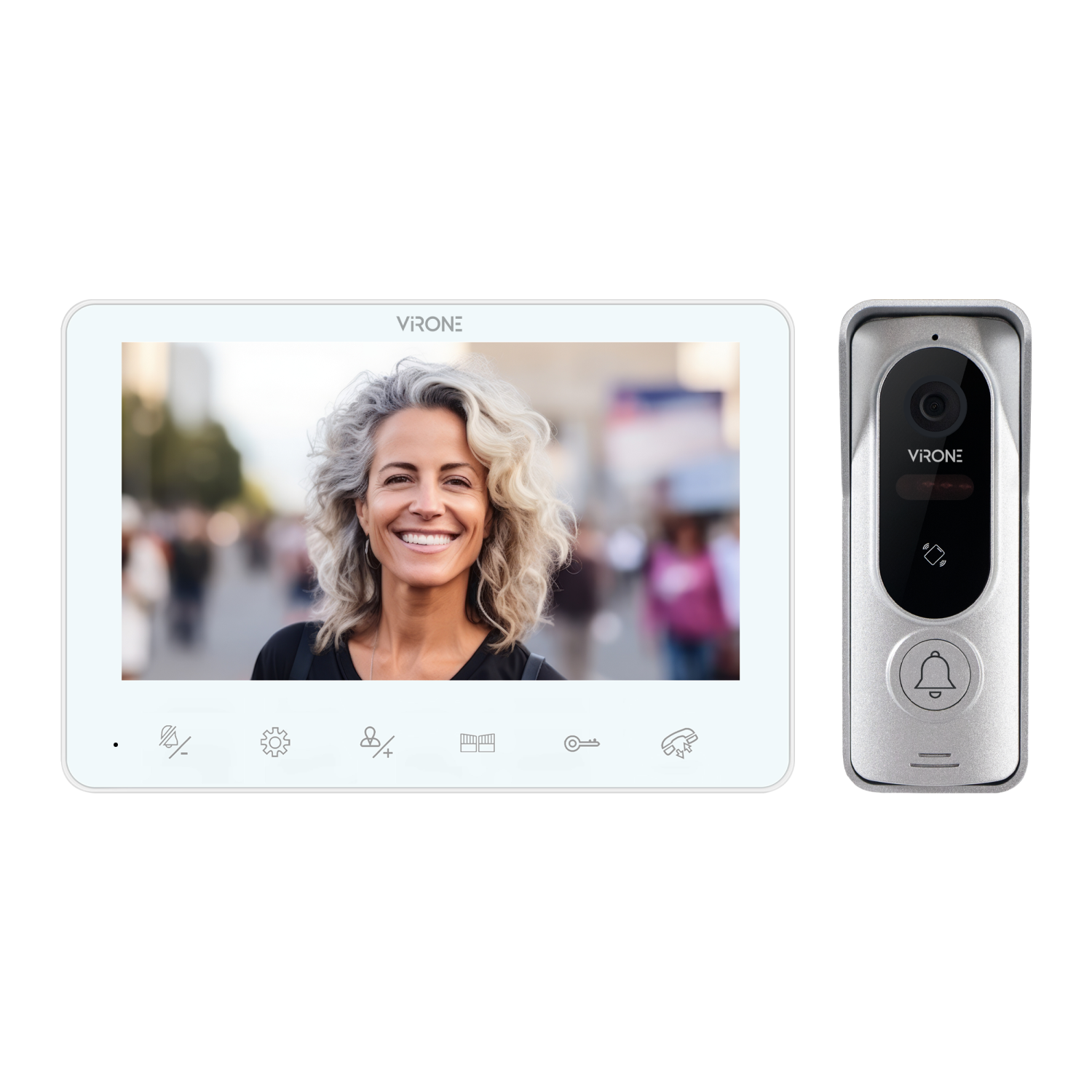

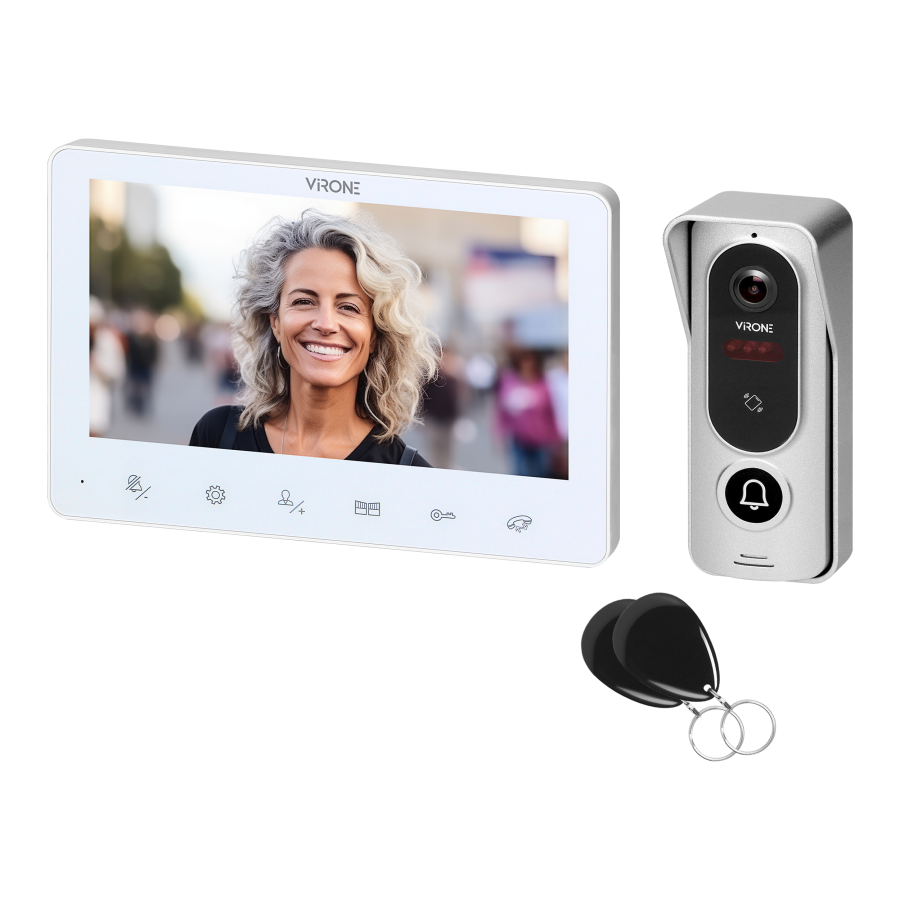

The ANGU video doorphone set designed for single-family houses is a functional solution for entrance monitoring, thus increasing the safety of the user. It consists of an indoor monitor and an outdoor unit, which feature high-quality and modern design.

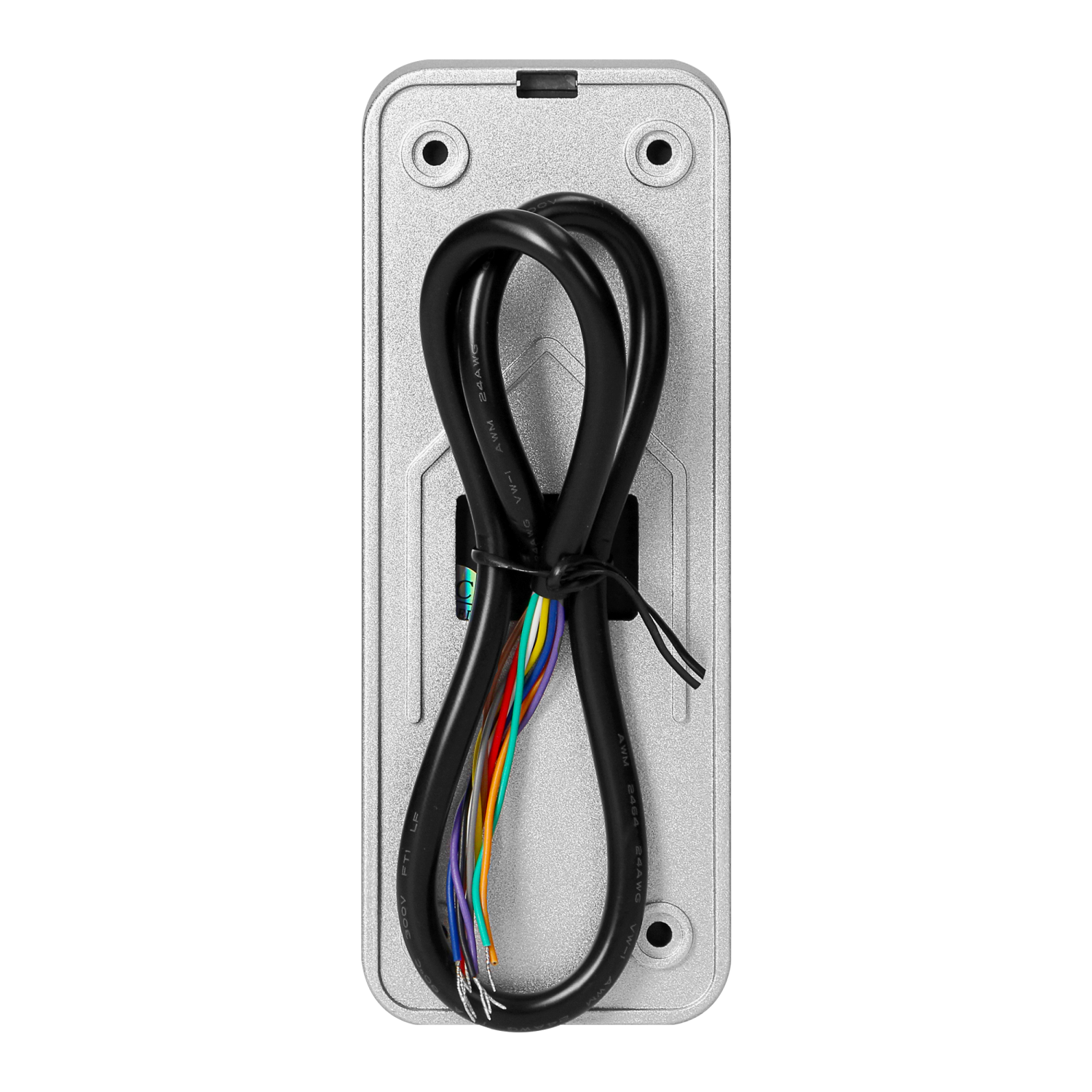

The device has an intuitive 4-wire connection that allows easy and reliable self-installation. Moreover, it reduces the number of cables running to the gate. The gate and door control increases the convenience of use, and the electric strike does not require additional power supply.

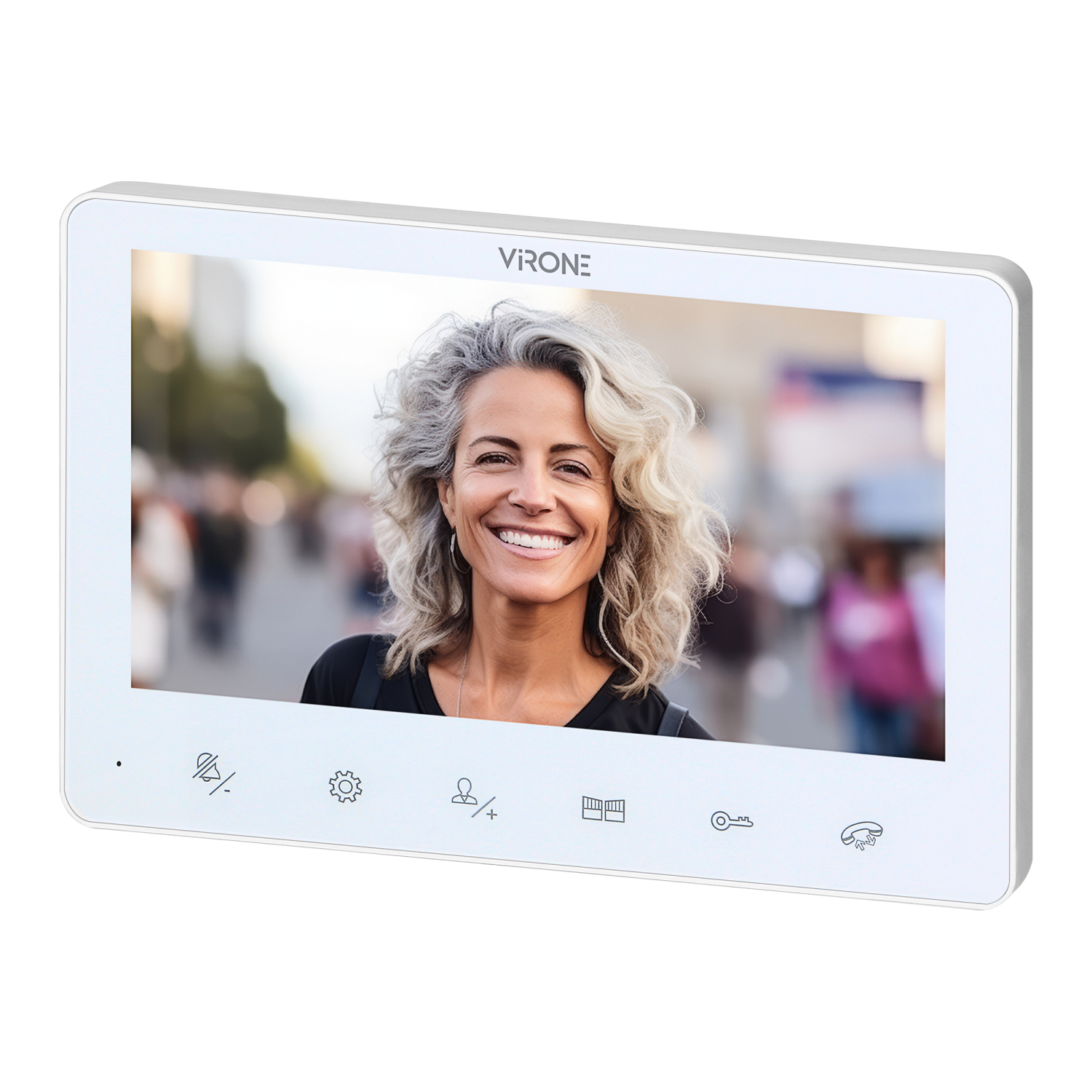

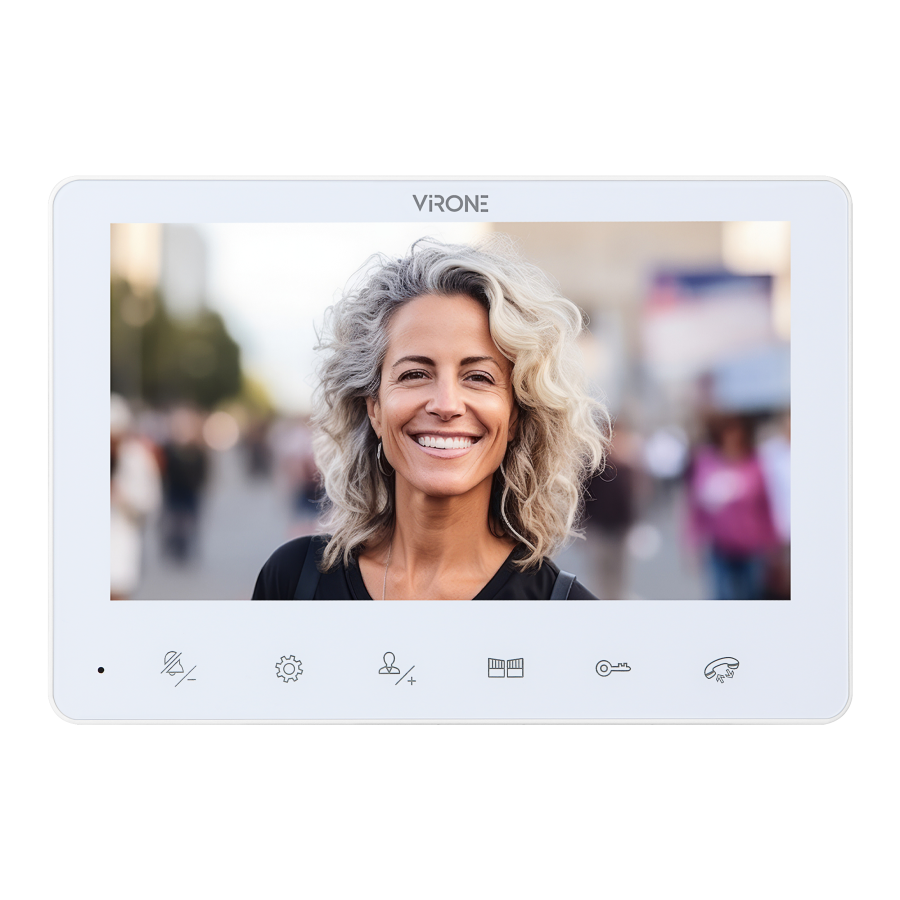

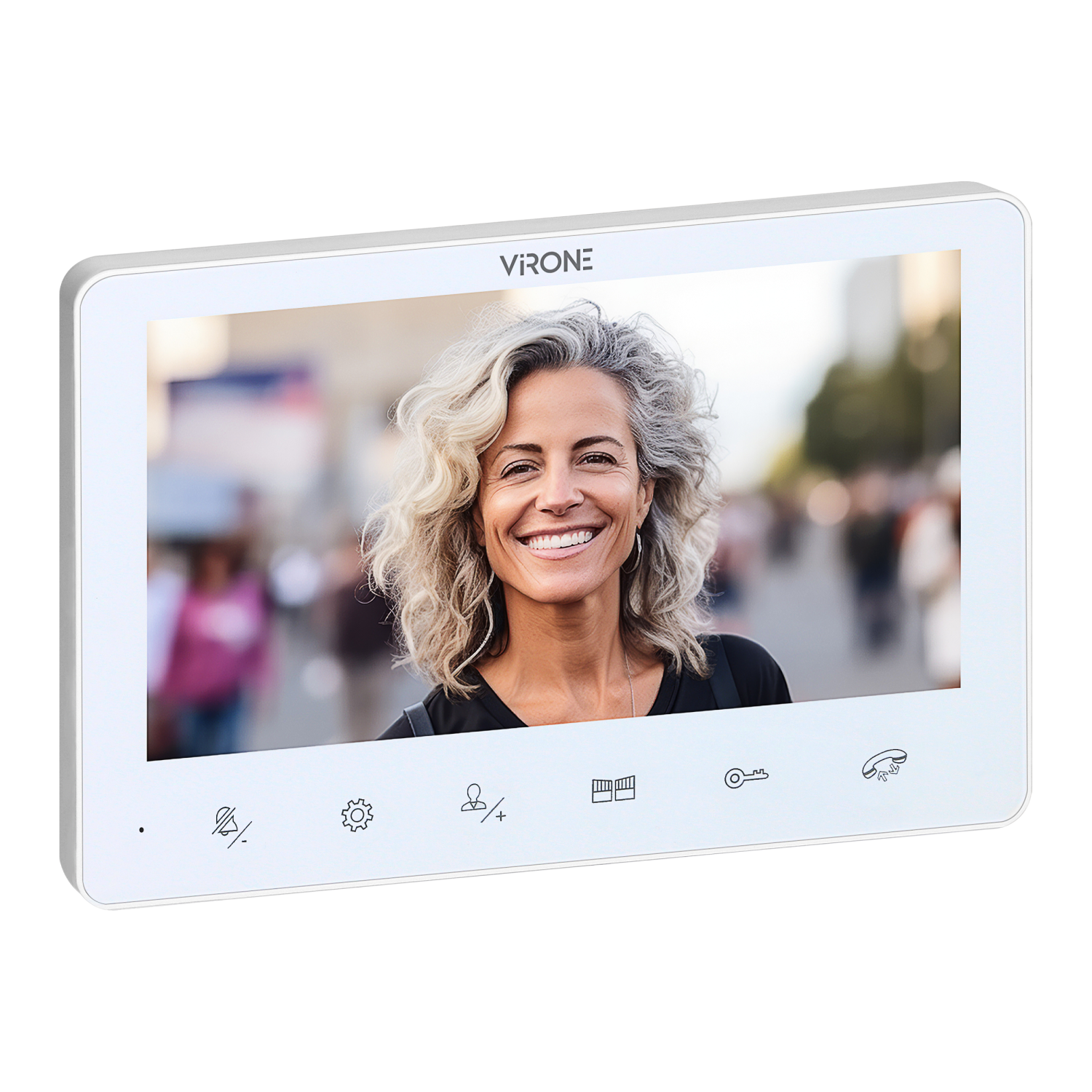

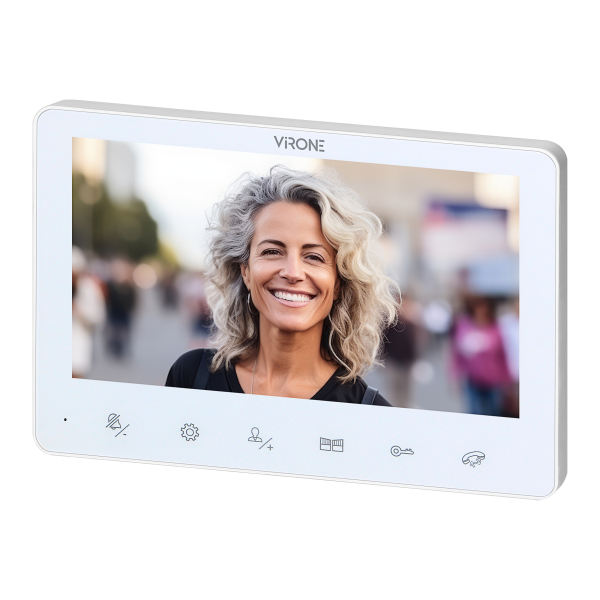

The monitor is equipped with a 7-inch screen with a resolution of 800x480 px offering a clear, color image, as well as simple navigation thanks to sensor buttons. The wide viewing angle of the camera in the external panel (92° horizontally and 65° vertically) allows to monitor what is happening in front of the gate or door.
Additionally, the user can adjust the system to their individual preferences by selecting a ringtone from 12 melodies and adjusting the volume (including complete muting).

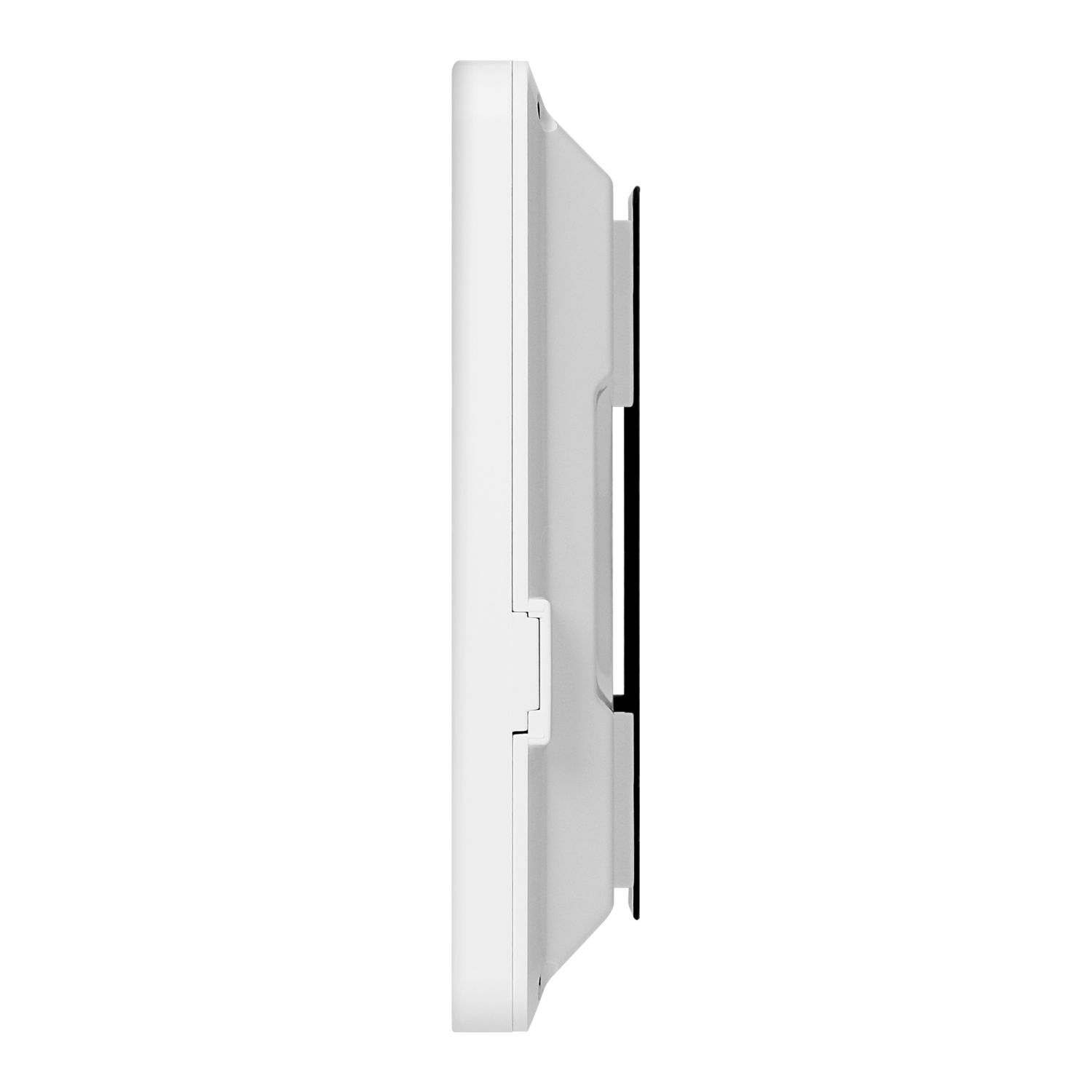

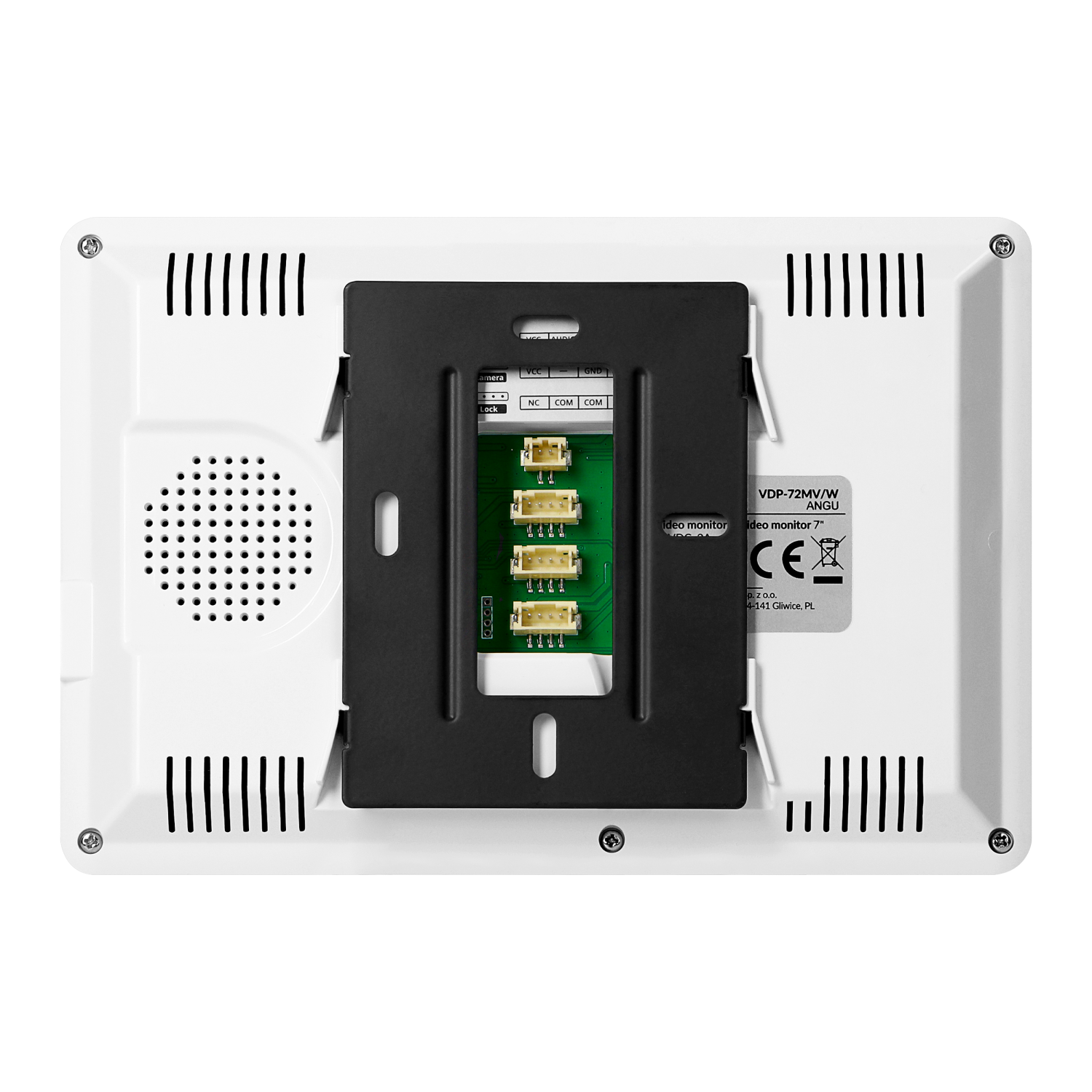

The monitor is made of white plastic. Designed for surface mounting. Dimensions: 185x127x24 mm.

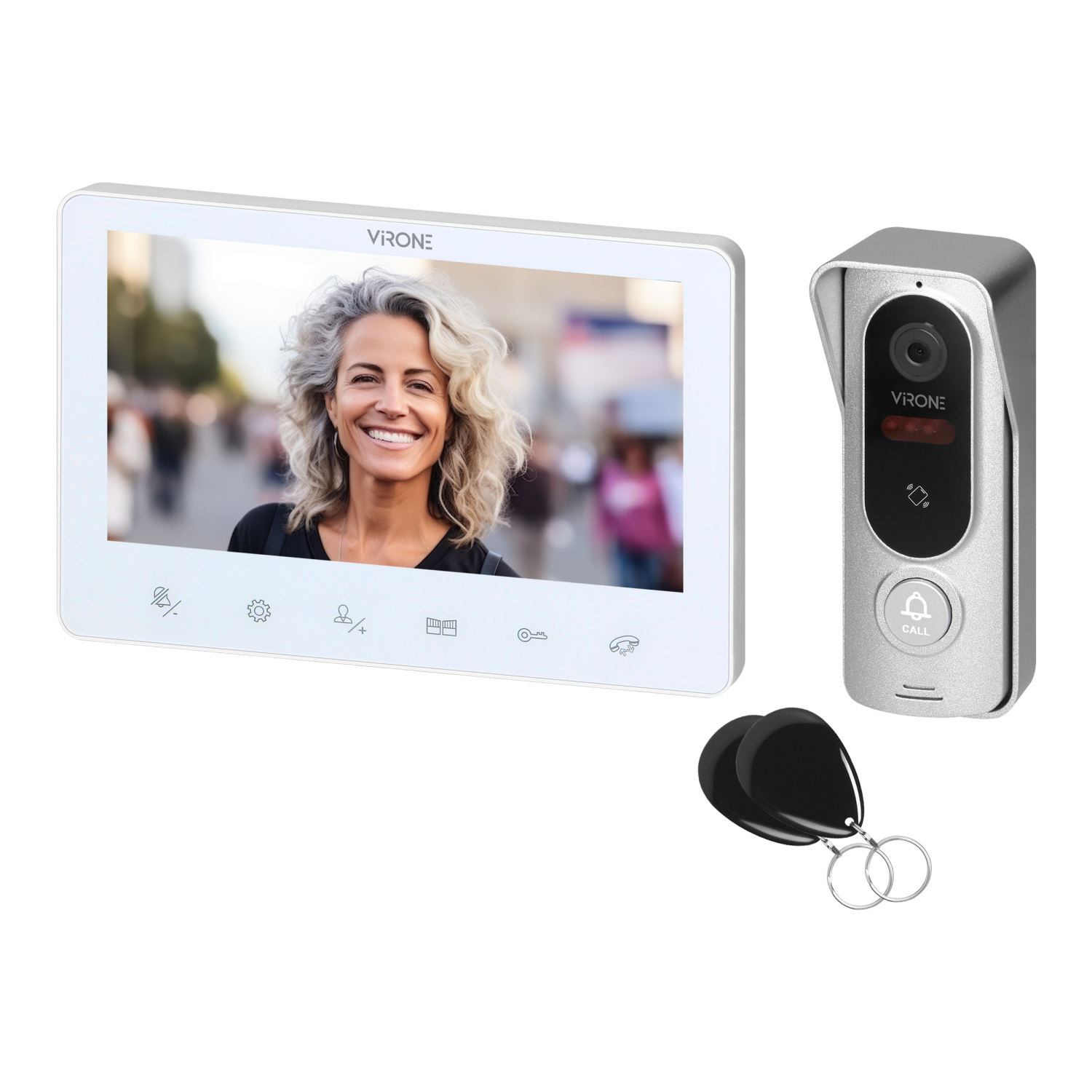

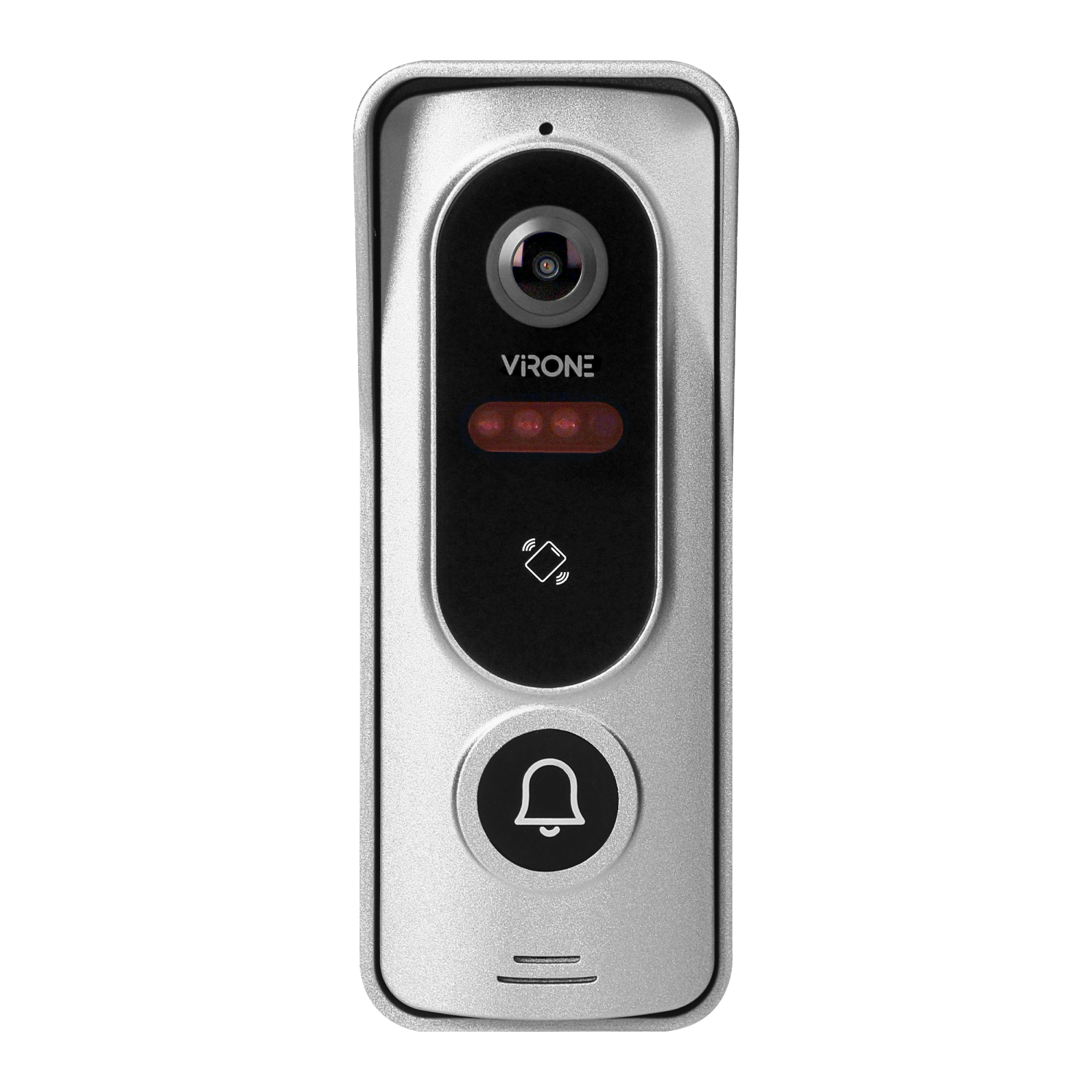

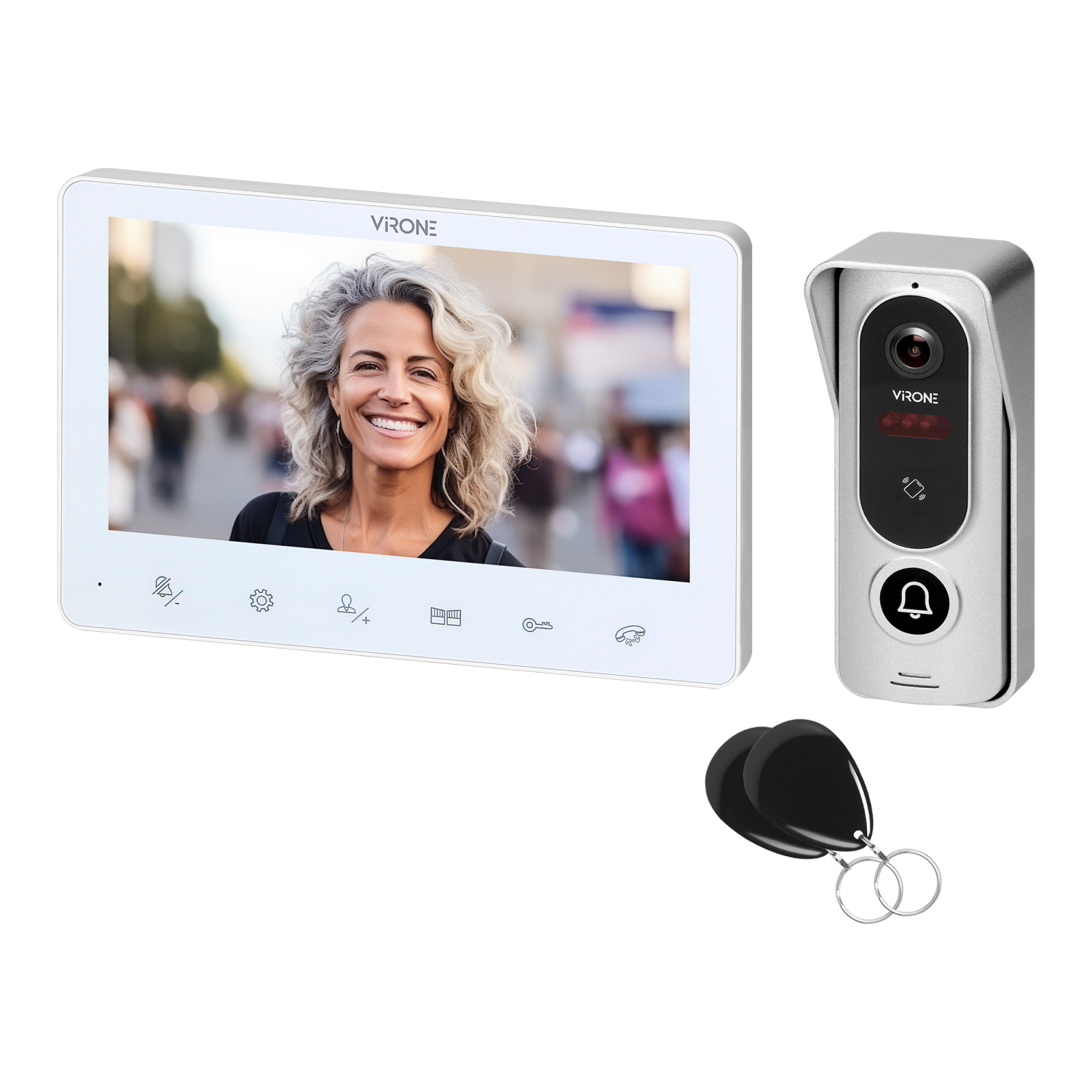

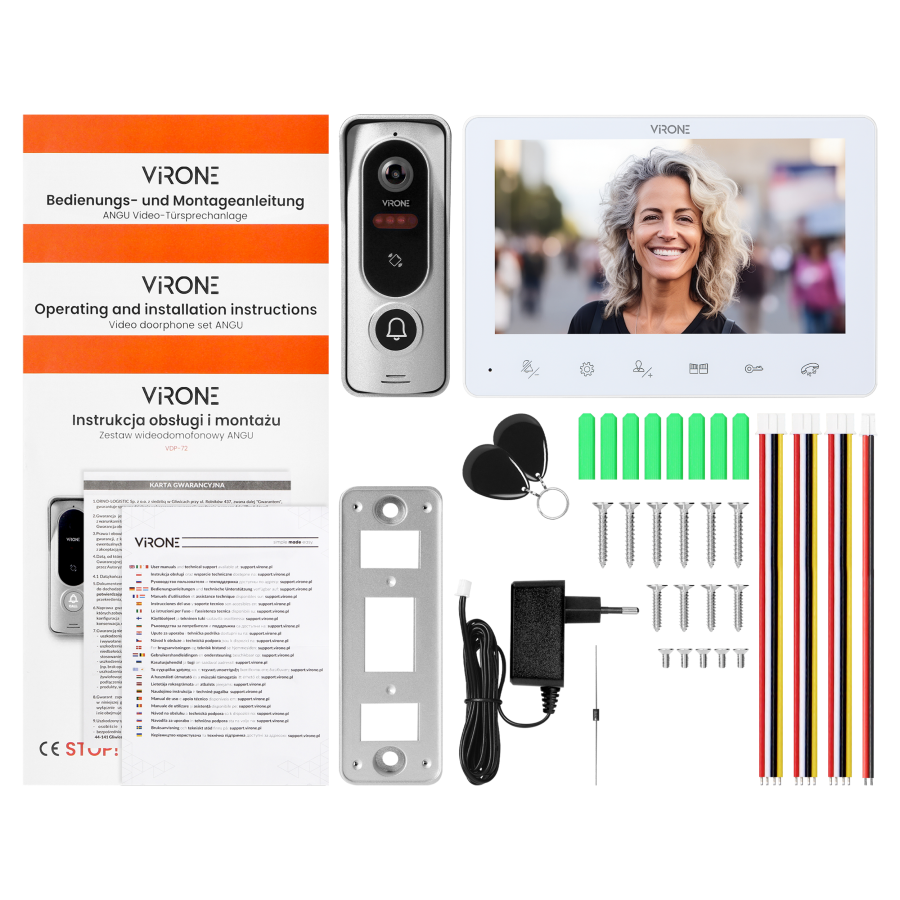

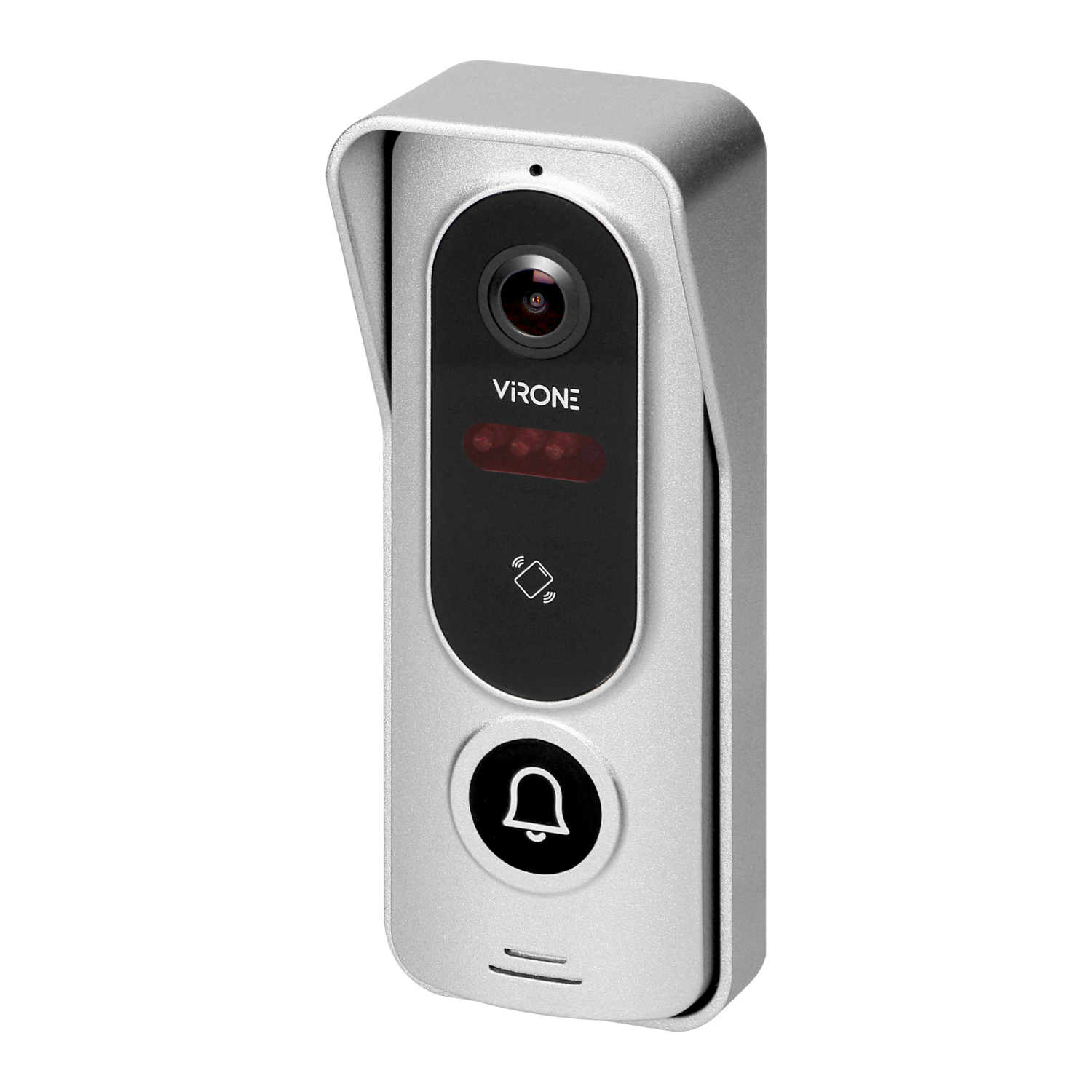

The outdoor unit is equipped with a RFID card and key tag reader operating at a frequency of 13.56 MHz. It allows access for up to 200 users without the need to carry additional keys (two RFID key tags included).
The outdoor unit with IR lighting guarantees visibility at night, without blinding the visitor.

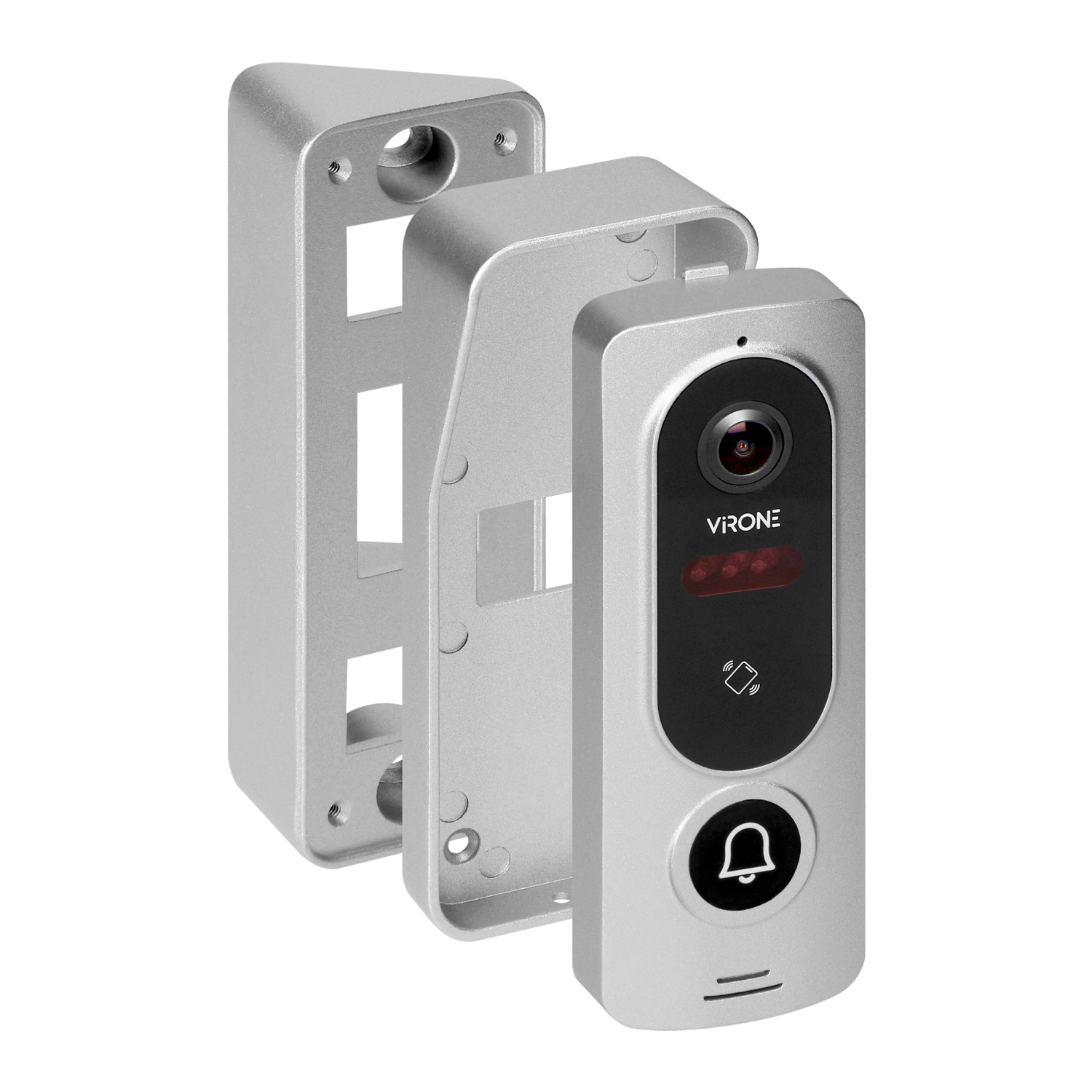

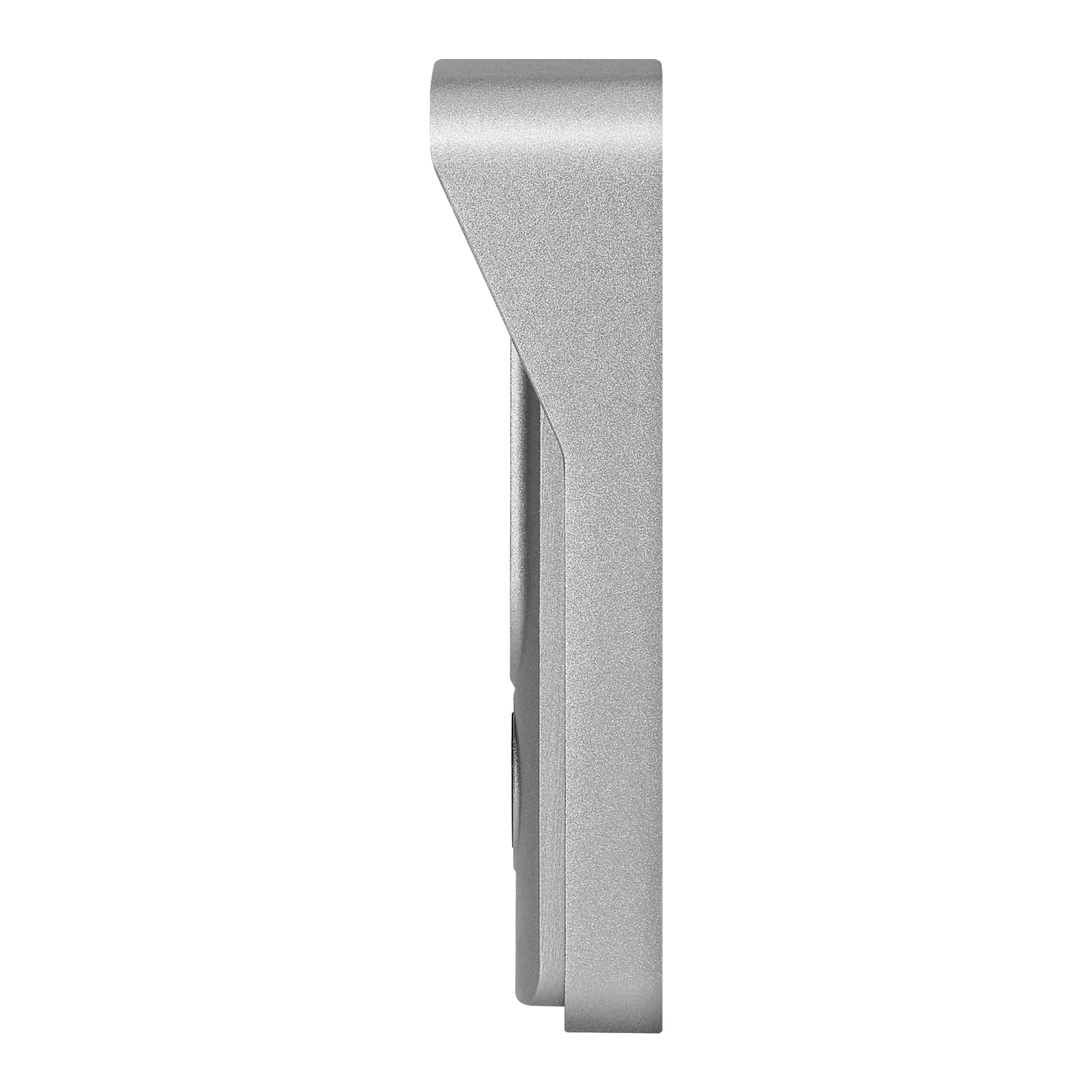

The high IP65 rate and the aluminium housing guarantee resistance to difficult weather conditions and protection against external damage. Silver colour. Designed for surface mounting. Compact dimensions of 54x139x33 mm allow the unit to be placed in narrow spaces.
The set may be expanded with one CCTV camera creating a complete monitoring system.
| General information: |
|---|
| Type: | jednorodzinny |
| With video: | tak |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage [V]: | 15V DC 2A |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | nie |
| Installation technique: | System wieloprzewodowy |
| Number of wires (*from outdoor unit to electric strike): | 4 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 1 |
| Expandable to max. number of outdoor stations: | 1 |
| Expandable to max. number of CCTV cameras: | 1 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |
| With day/night function: | tak |
| Monitor: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | tak |
| Screen diagonal [inch]: | 7" |
| Screen resolution: | 800x480 |
| Touch screen: | nie |
| Property picture system: | Kolor |
| With memory function: | nie |
| Internal communication: | nie |
| Number of ringtones: | 12 |
| Loudness control: | tak |
| Mutable call tone: | tak |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Biały |
| Dimensions of the monitor - Width [mm]: | 185 |
| Dimensions of the monitor - Height [mm]: | 127 |
| Dimensions of the monitor - Depth [mm]: | 24 |
| Outdoor unit: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| Camera resolution: | 800TVL |
| Camera view angle: | 92 |
| Camera view angle: | 65 |
| Night light: | IR |
| With digital door code: | nie |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 13,56MHz |
| Label space/information surface: | nie |
| With cover: | tak |
| Degree of protection (IP): | IP65 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Srebrny |
| Width [mm]: | 54 |
| Height [mm]: | 139 |
| Depth [mm]: | 33 |
| Other features: | RFID - max. 200 użytkowników (2 breloki w zestawie) |
