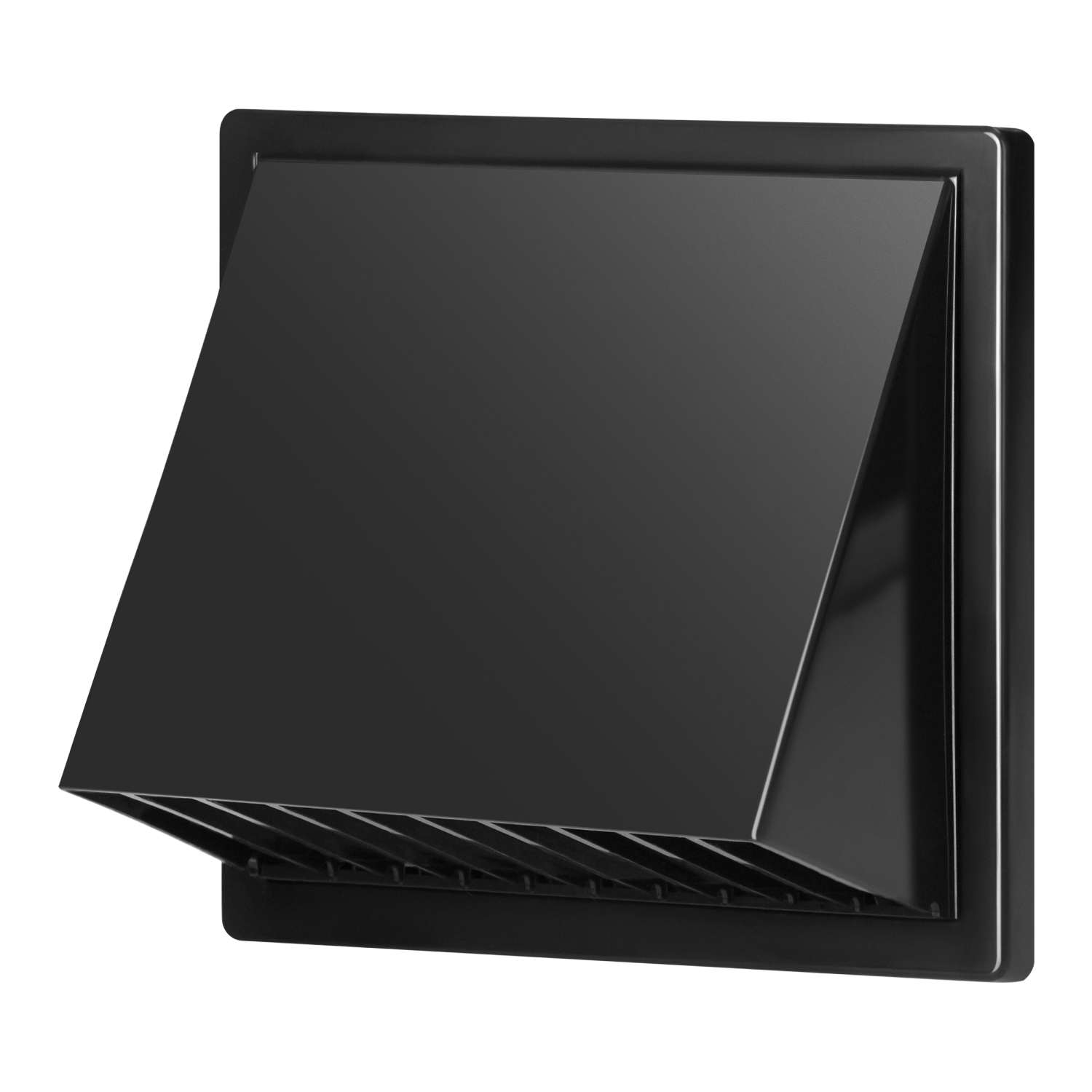

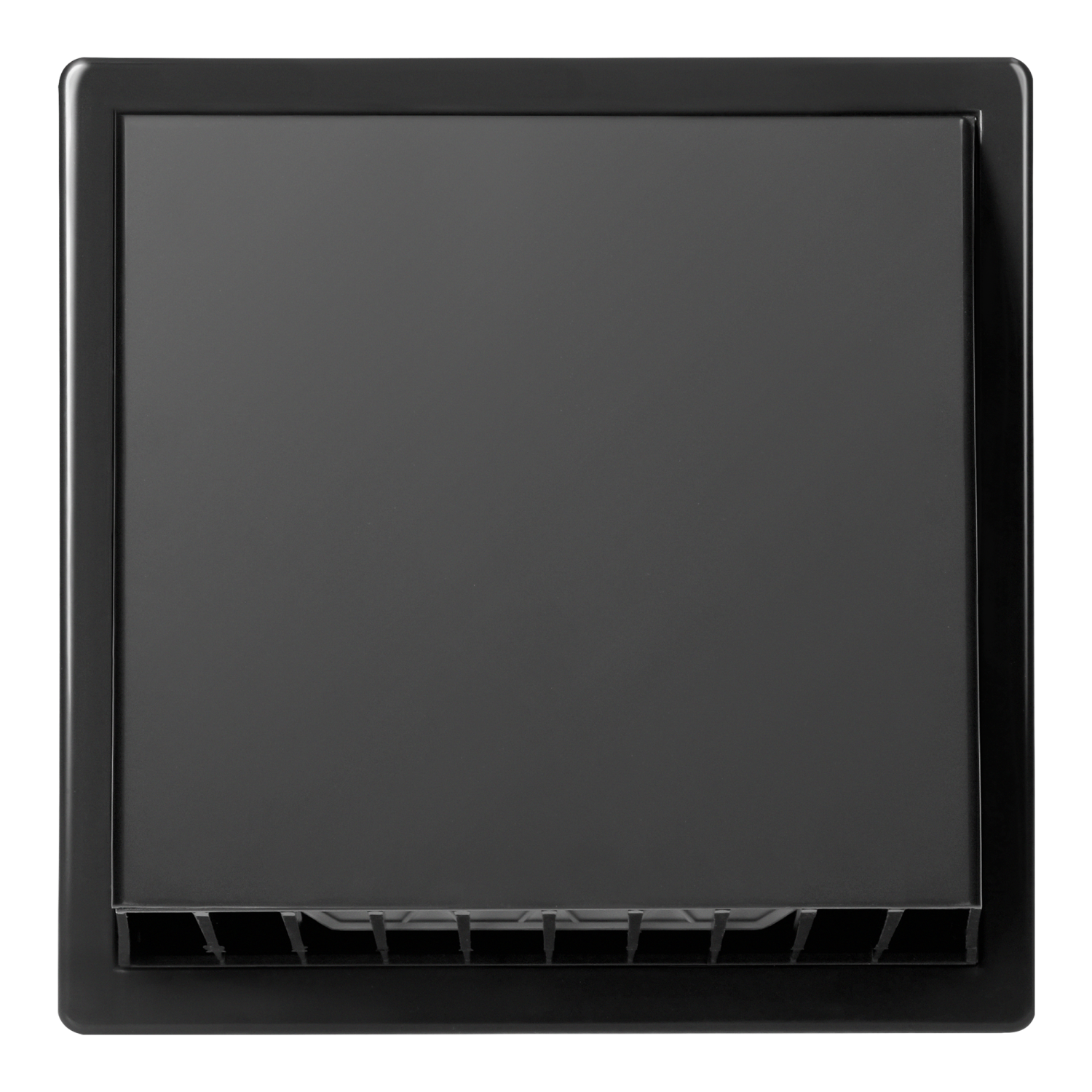

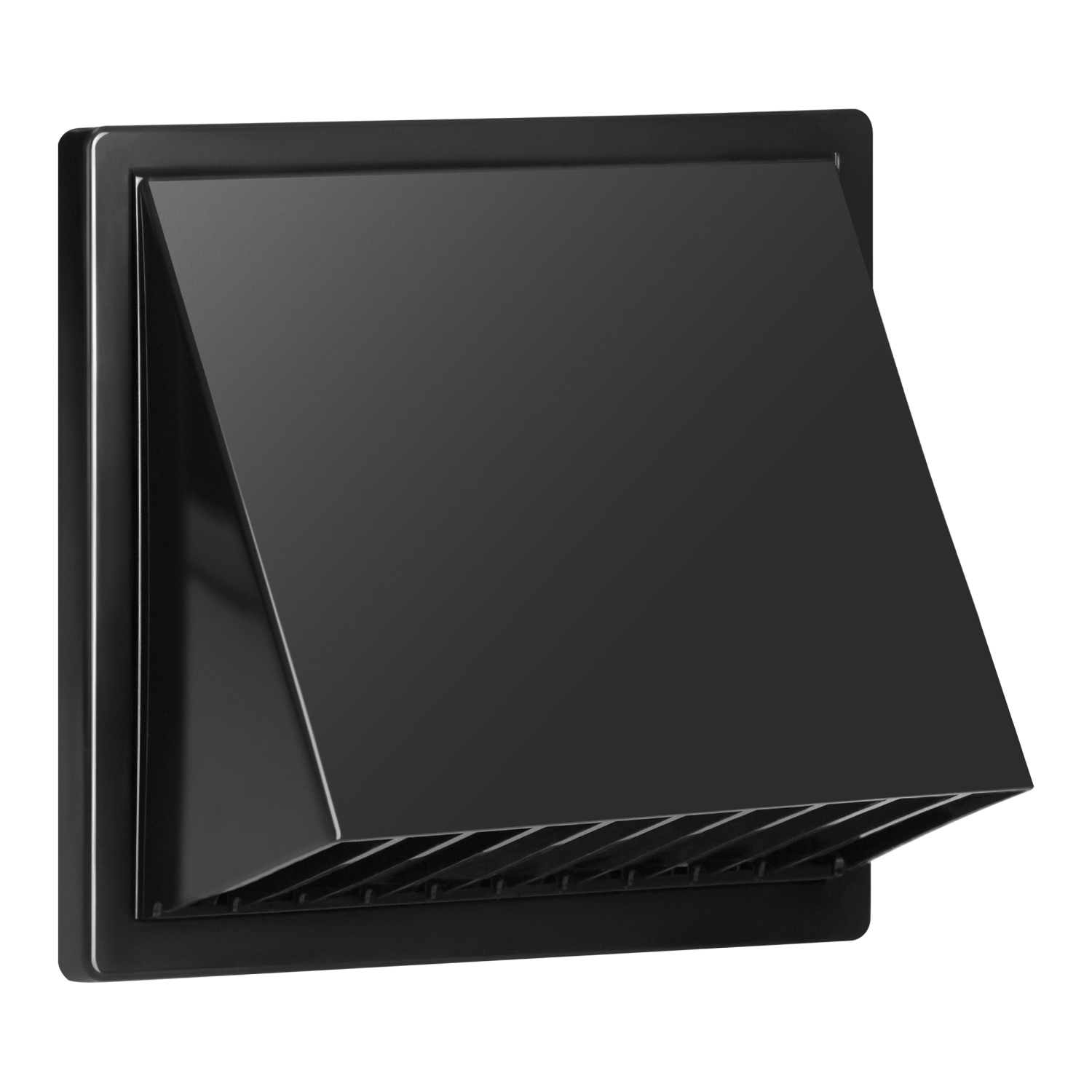

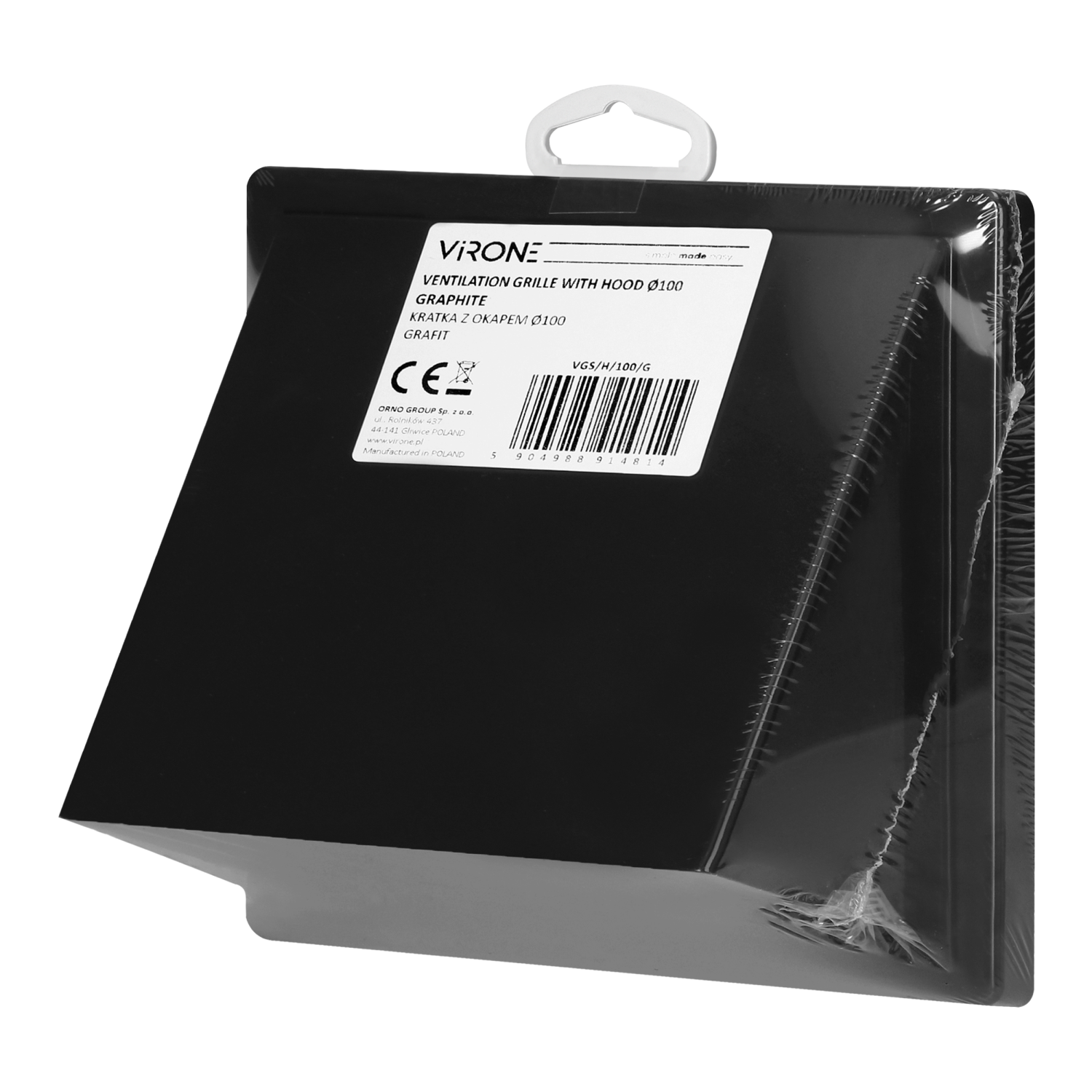

Ventilation grille with hood Ø100, graphite
Ventilation grille with hood Ø100, graphite
Ventilation grille with hood Ø100, graphite
Ventilation grille with hood Ø100, graphite
Ventilation grille with hood Ø100, graphite
Ventilation grille with hood Ø100, graphite
Ventilation grille with hood Ø100, graphite
Ventilation grille with hood Ø100, graphite
Ventilation grille with hood Ø100, graphite
Ventilation grille with hood Ø100, graphite

Ventilation grille with hood Ø100, graphite

VGS/H/100/G

Description

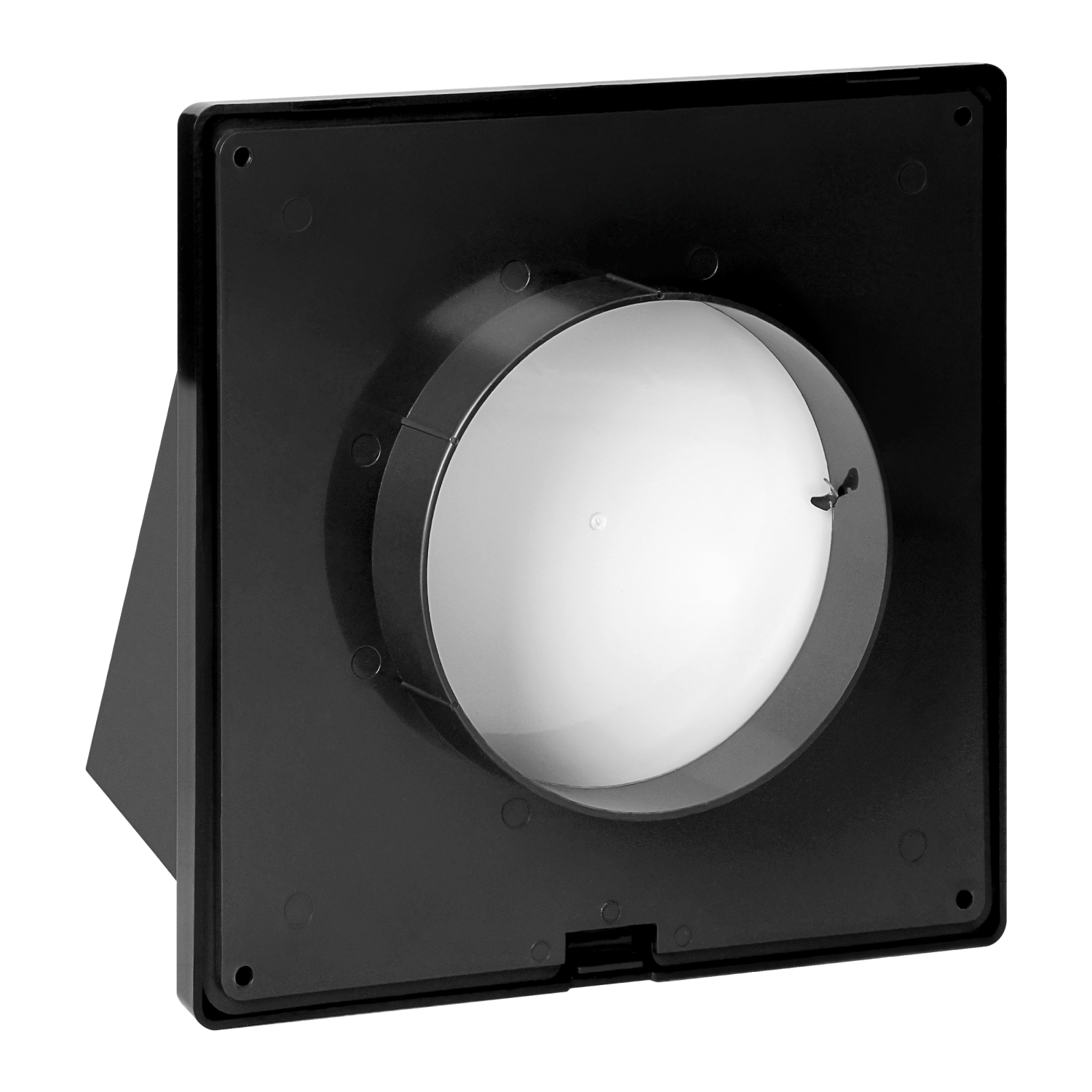

Grille intended for use outside buildings as the end of mechanical ventilation. The shape of the hood protects against water coming in from outside. The check valve protects against adverse backdrafts, and the net blocks bird access and prevents rubbish from falling into the ventilation.

Grille material: ABS.
Available in white and graphite.
Hole diameter: 100 mm.

General information:
Material: ABS
Surface protection: Stan surowy
Front width [mm]: 170
Colour: Grafit
Shape air duct: Okrągły
For duct diameter [mm]: 100

Files to download

File category File language File type File update date
Product data sheetPLpdf2025-05-07 12:48:50Download
Product data sheetENpdf2025-05-07 13:01:52Download
