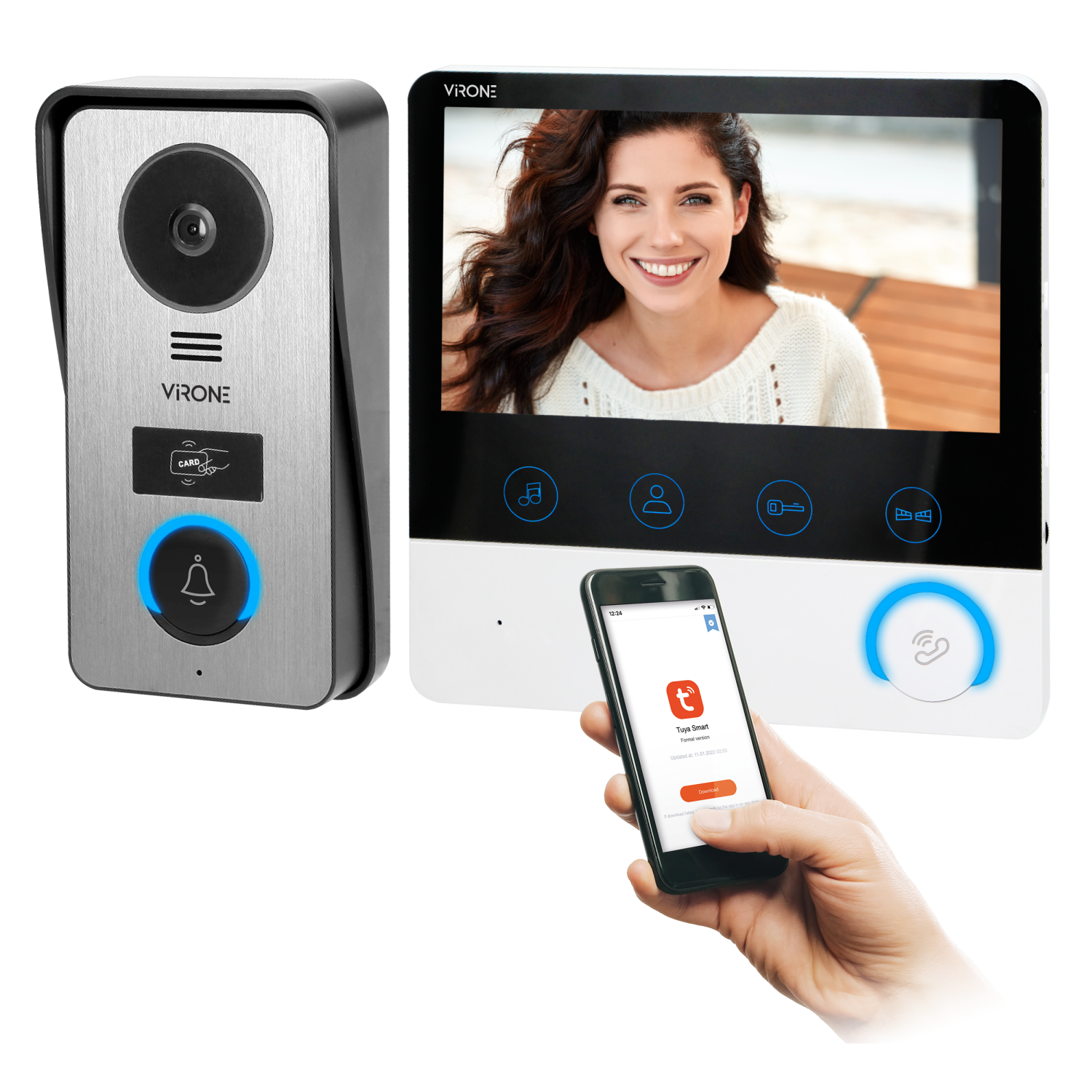

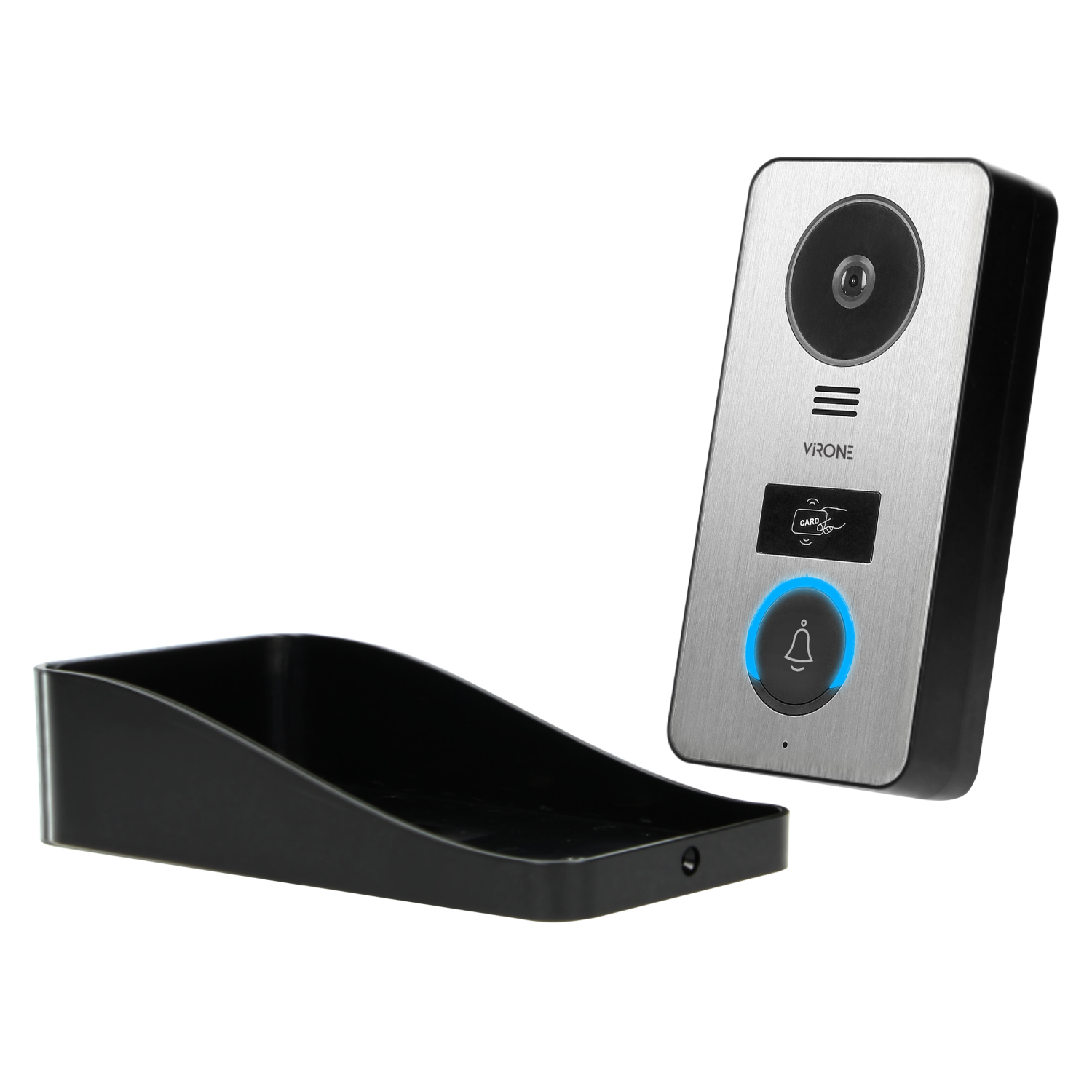

The modern HILIT Full HD video intercom set consists of a 7'' ultra-slim LCD colour monitor providing an excellent quality picture and an external cassette with a Full HD camera with a very wide viewing angle. The external panel is equipped with a canopy providing protection against rain or snow, as well as against sharp sun rays. Communication between the indoor and outdoor panels does not require a handset. After downloading the free TUYA app, the user can control the device from their smartphone and record sounds and videos via the Tuya app and play them back on their smartphone. Additional IR LED illumination on the outdoor panel allows night vision, and a built-in RFID reader allows access with proximity cards and key tags.
| General information: |
|---|
| Type: | jednorodzinny |
| With video: | tak |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage: | 12V DC |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | tak |
| Wi-Fi Frequency: | 2,4GHz |
| Wi-Fi standard: | IEEE 802.11 b/g/n |
| App: | Tuya Smart |
| Installation technique: | System wieloprzewodowy |

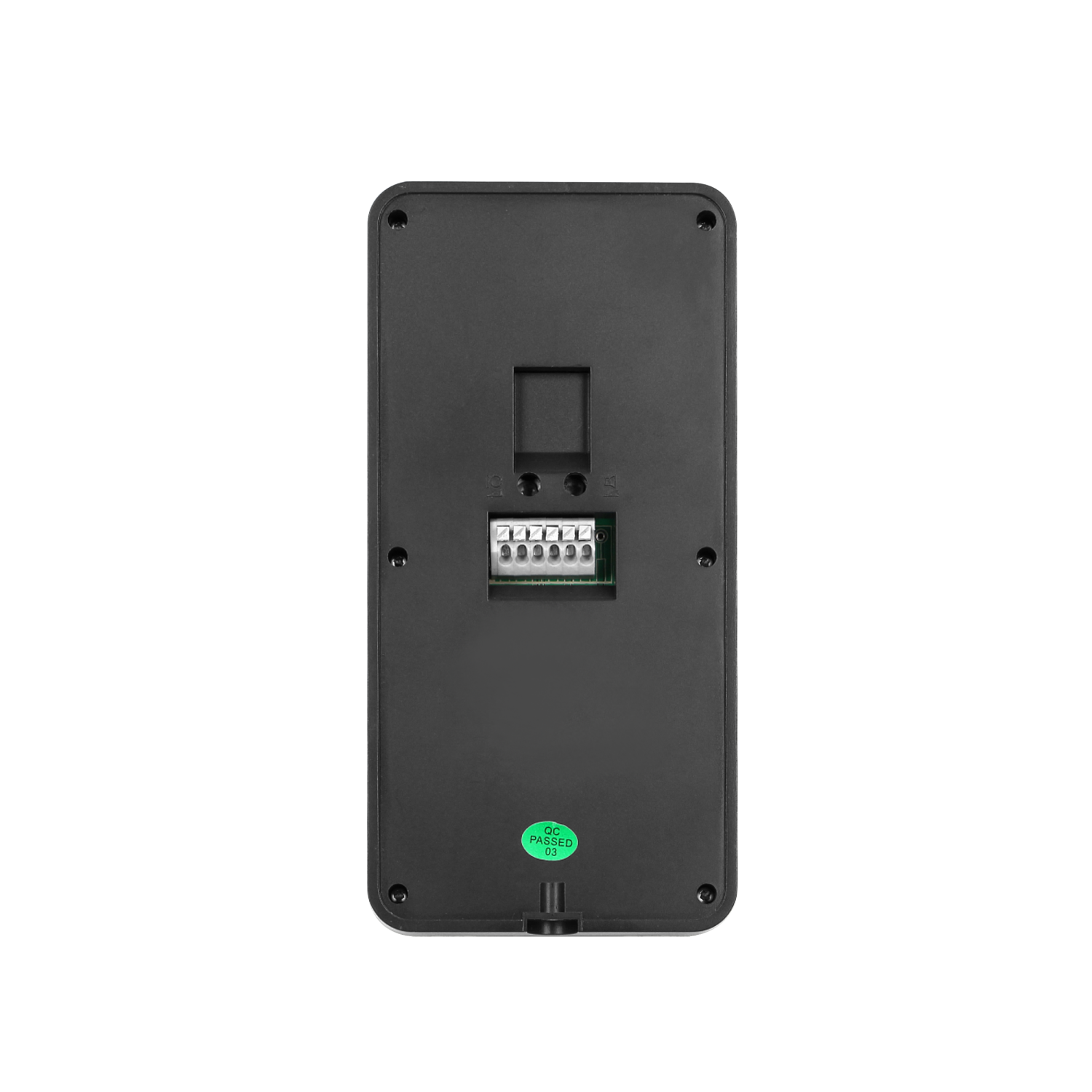

| Number of wires (*from outdoor station to electric strike): | 4 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 1 |
| Expandable to max. number of outdoor stations: | 1 |
| Expandable to max. number of CCTV cameras: | 0 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |
| With day/night function: | tak |

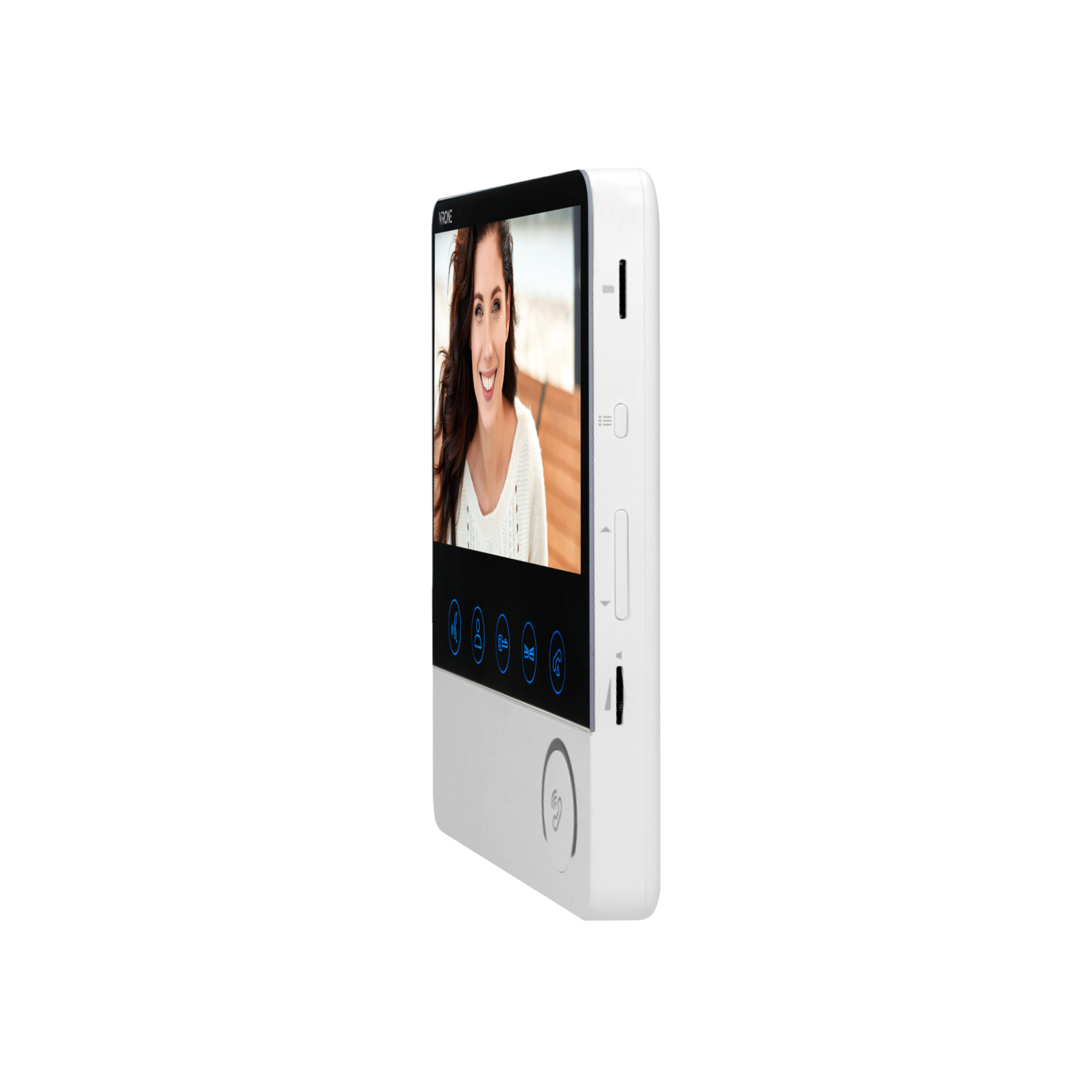

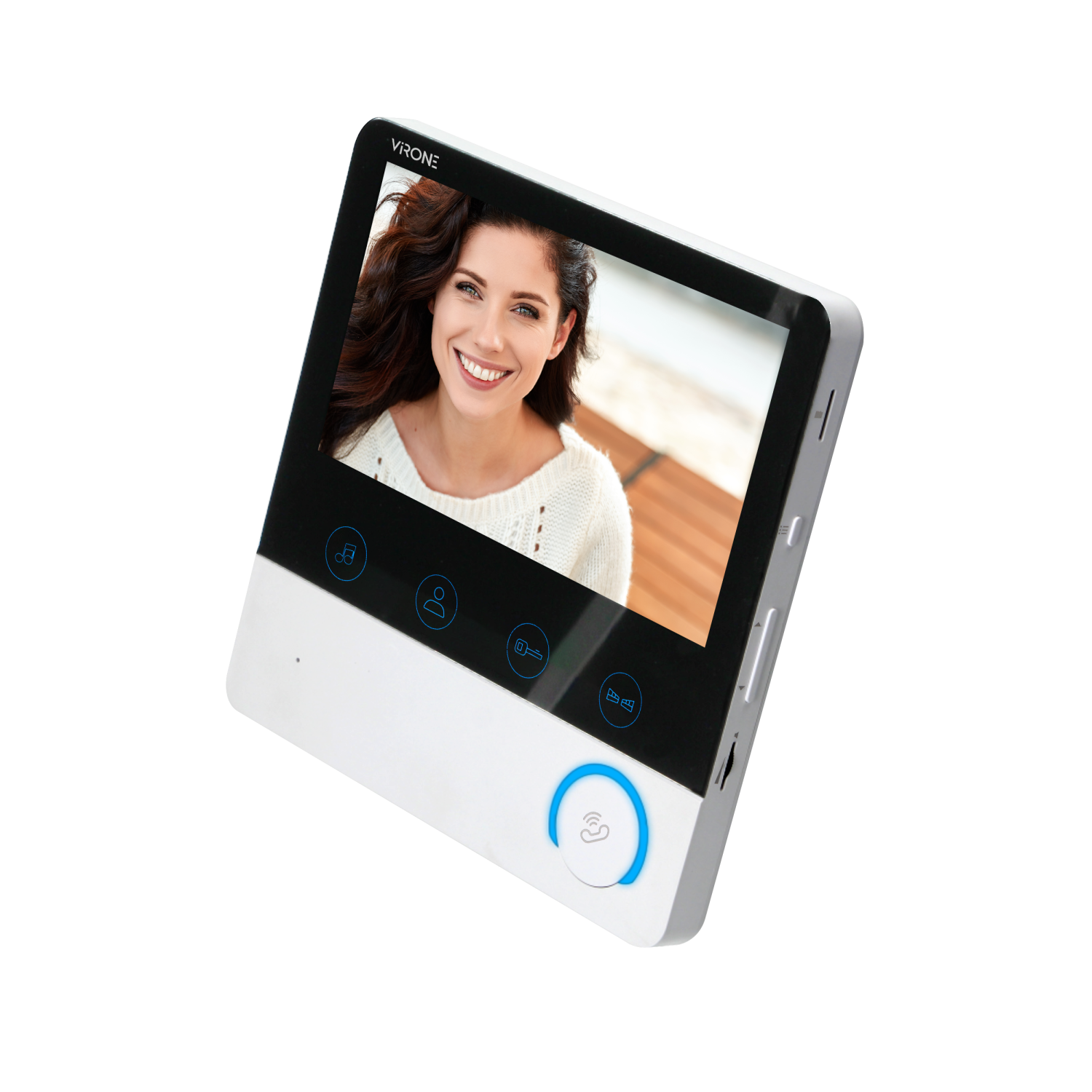

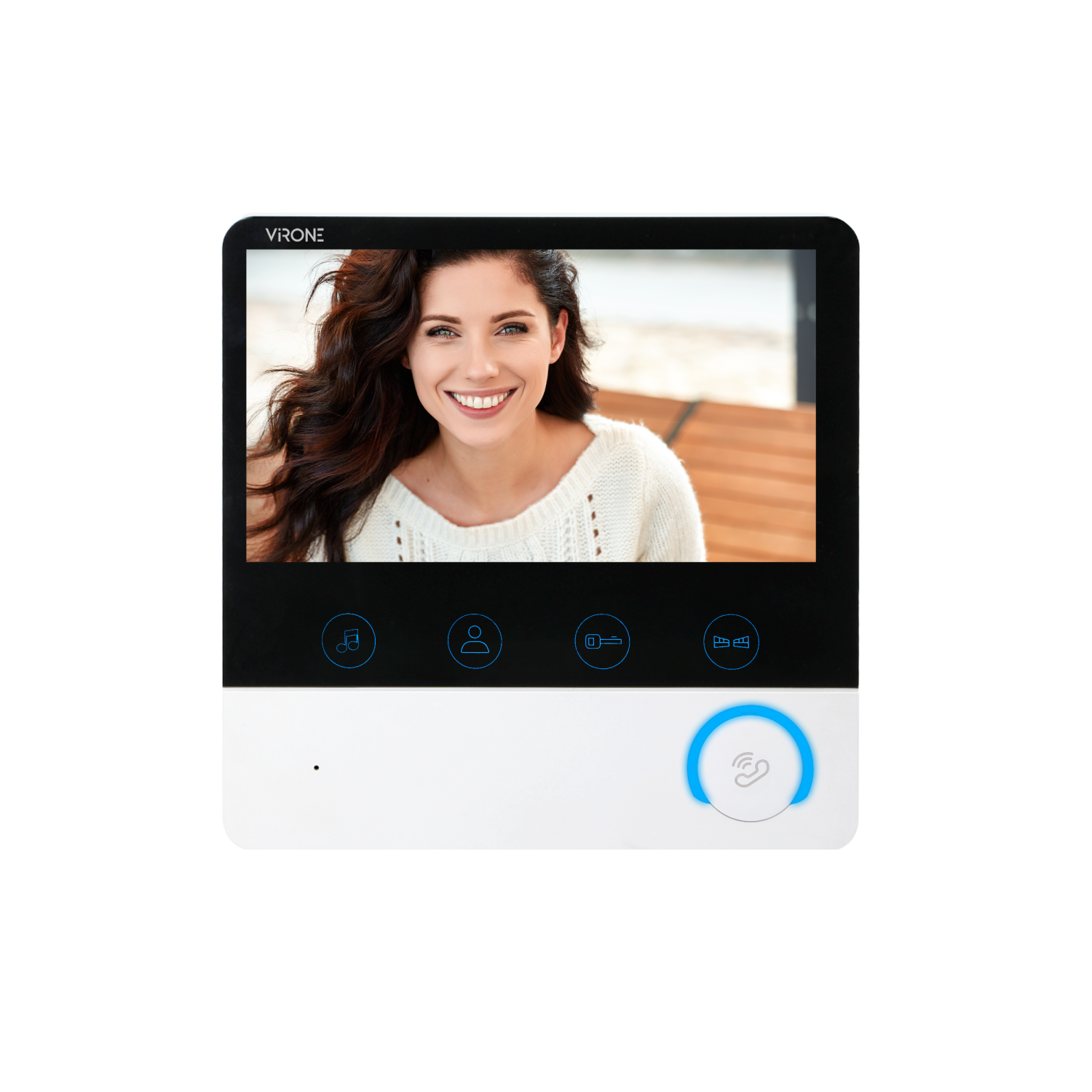

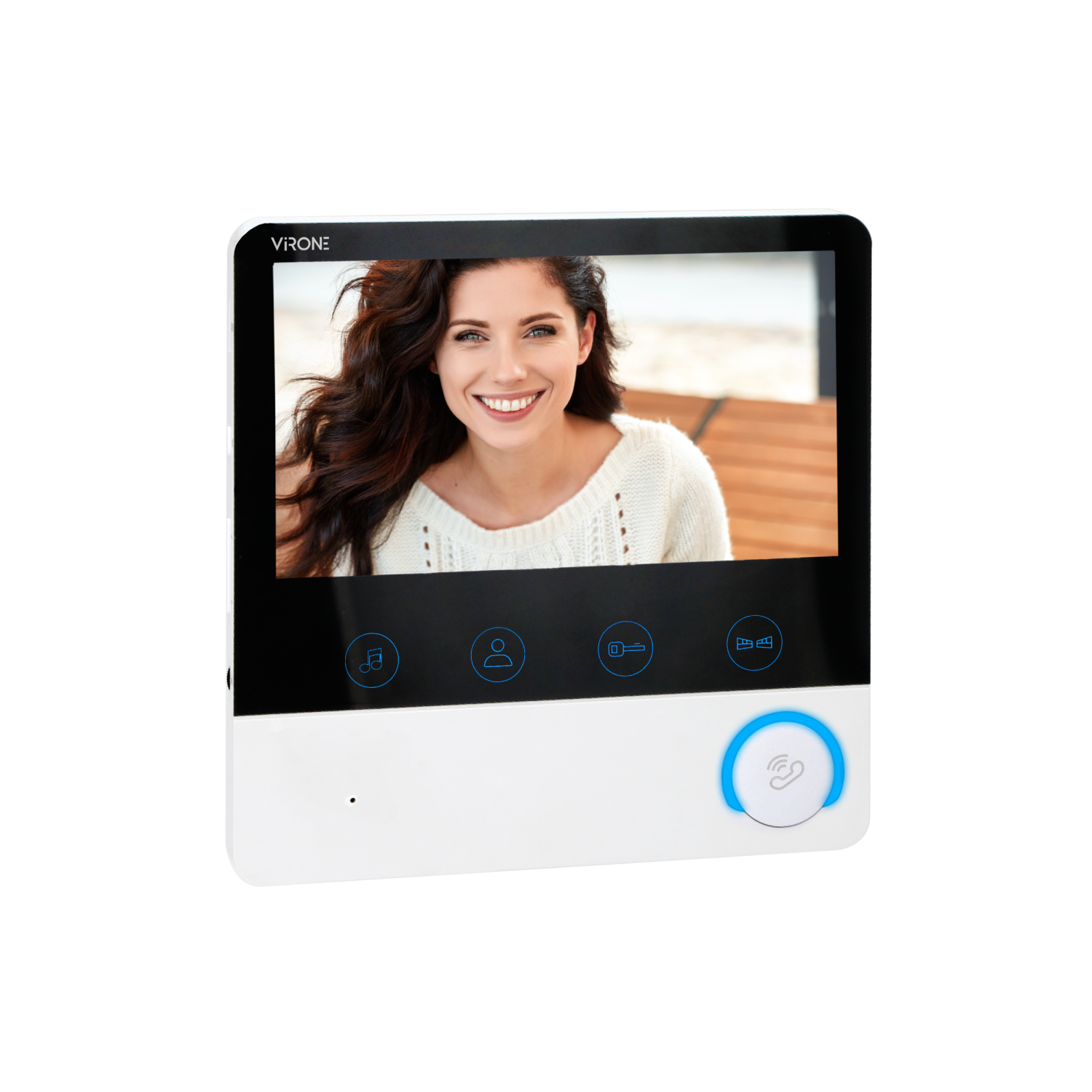

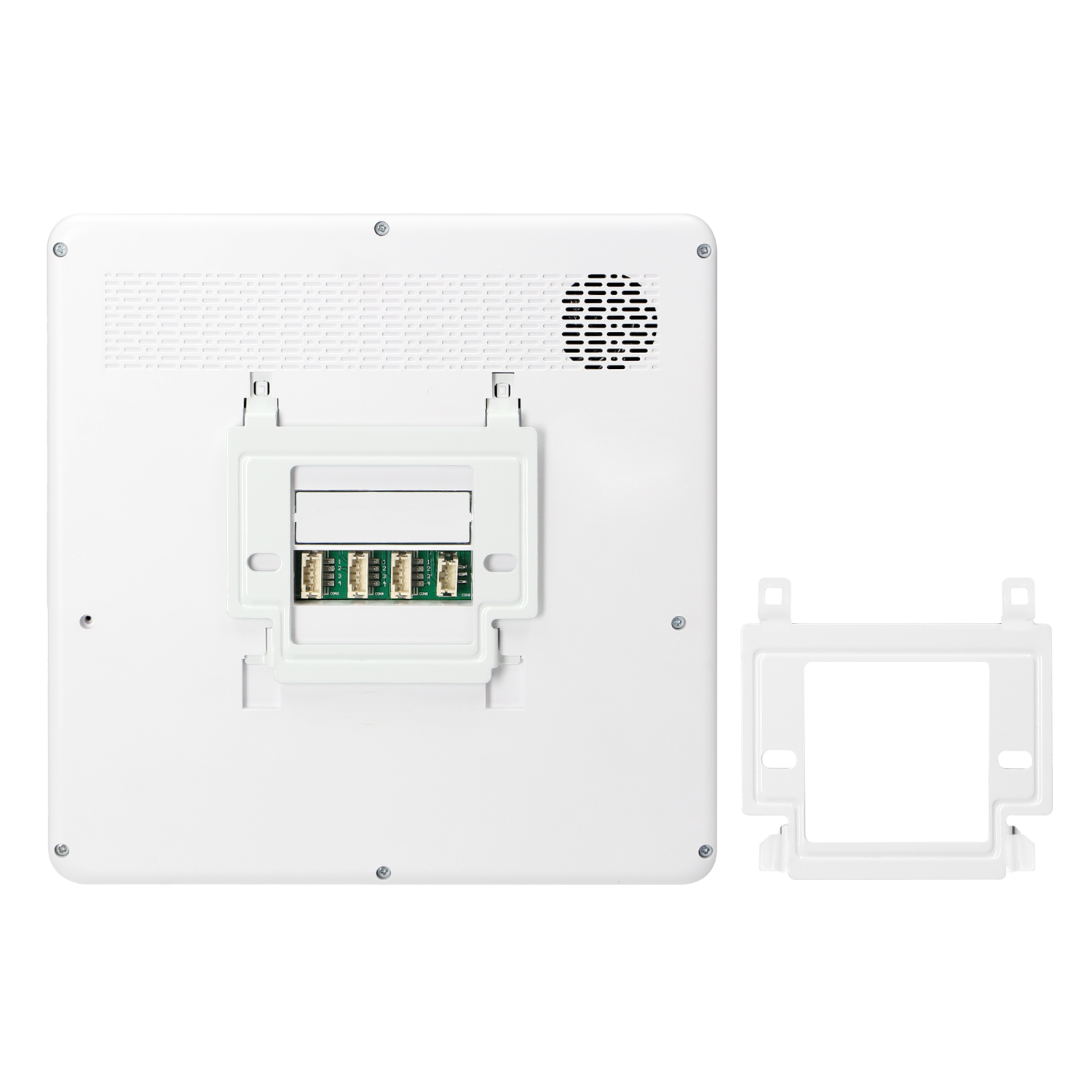

| Monitor: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | tak |
| Screen diagonal [inch]: | 7" |
| Screen resolution: | 1024x600 |
| Touch screen: | nie |
| Property picture system: | Kolor |
| With memory function: | nie |
| SD card reader: | nie |
| Internal communication: | nie |
| Number of ringtones: | 16 |
| Loudness control: | tak |
| Mutable call tone: | nie |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Czarno-biały |
| Dimensions of the monitor - Width [mm]: | 180 |
| Dimensions of the monitor - Height [mm]: | 180 |
| Dimensions of the monitor - Depth [mm]: | 18 |

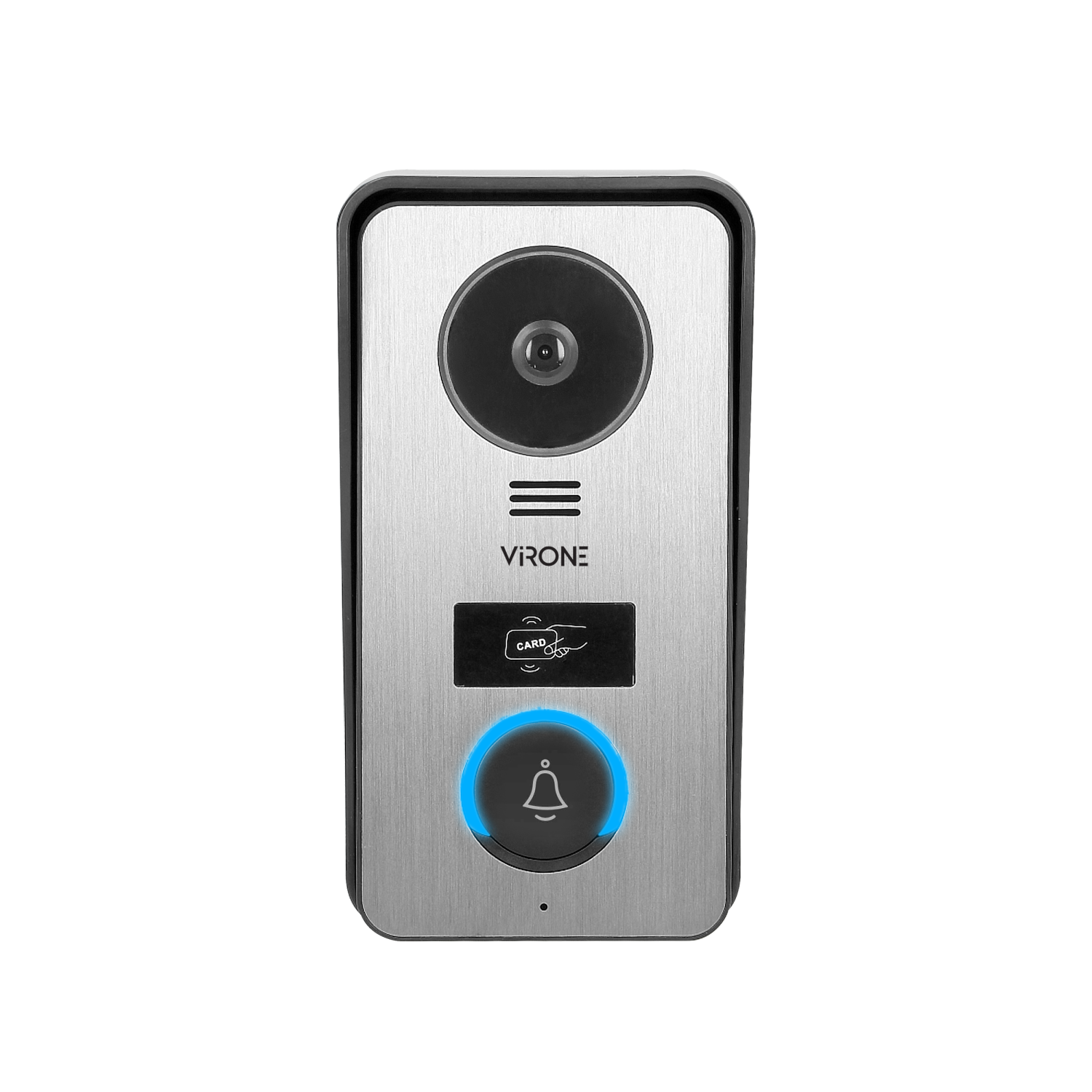

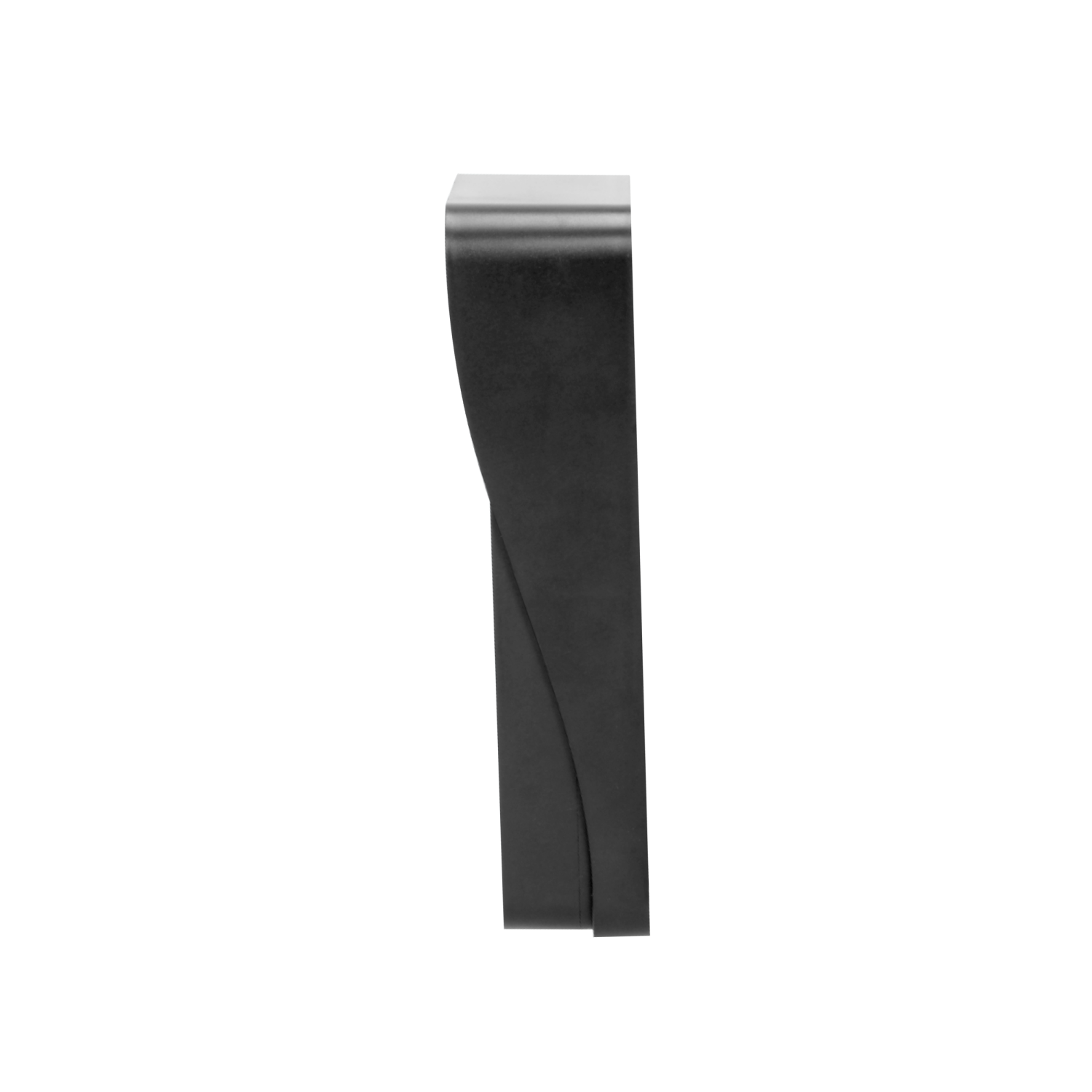

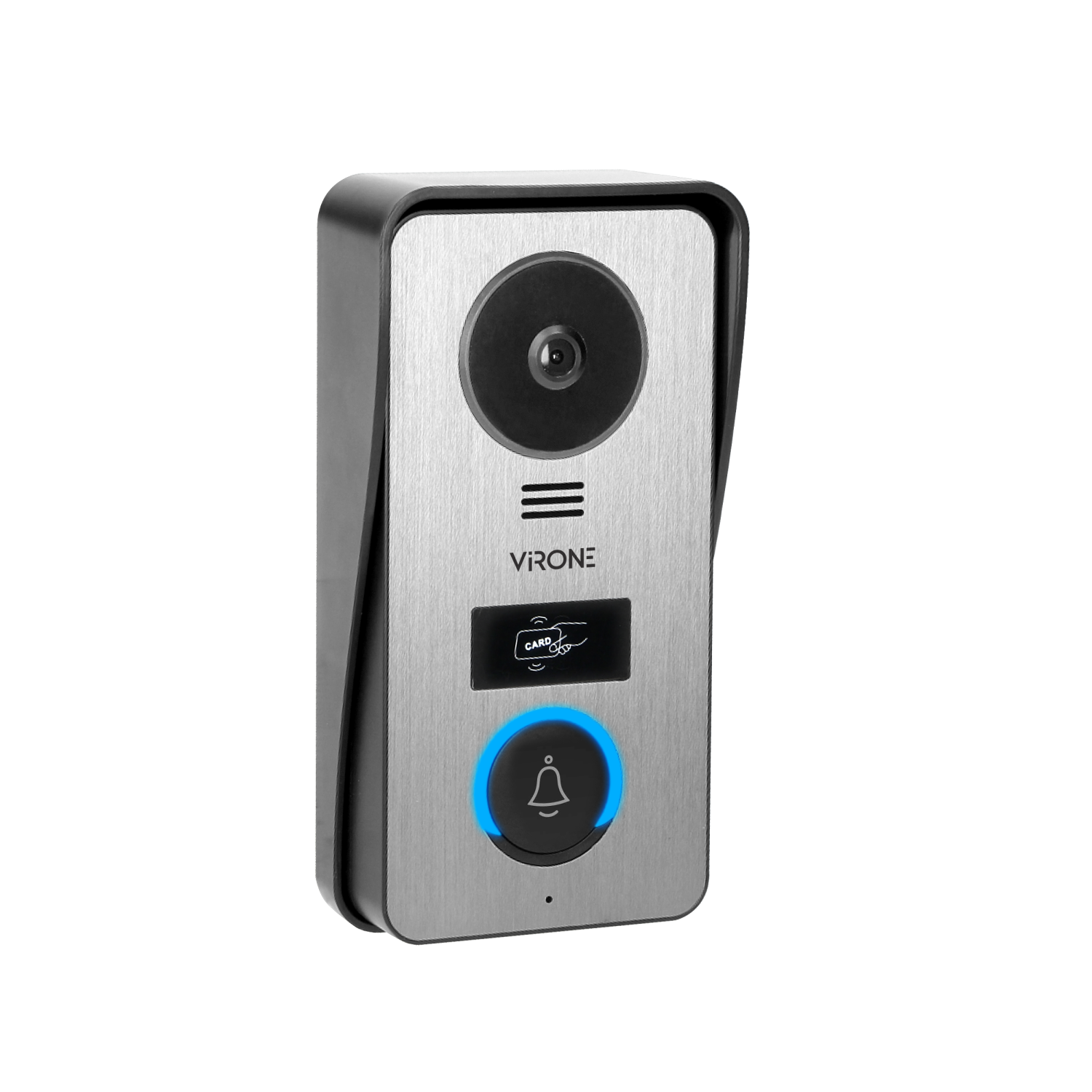

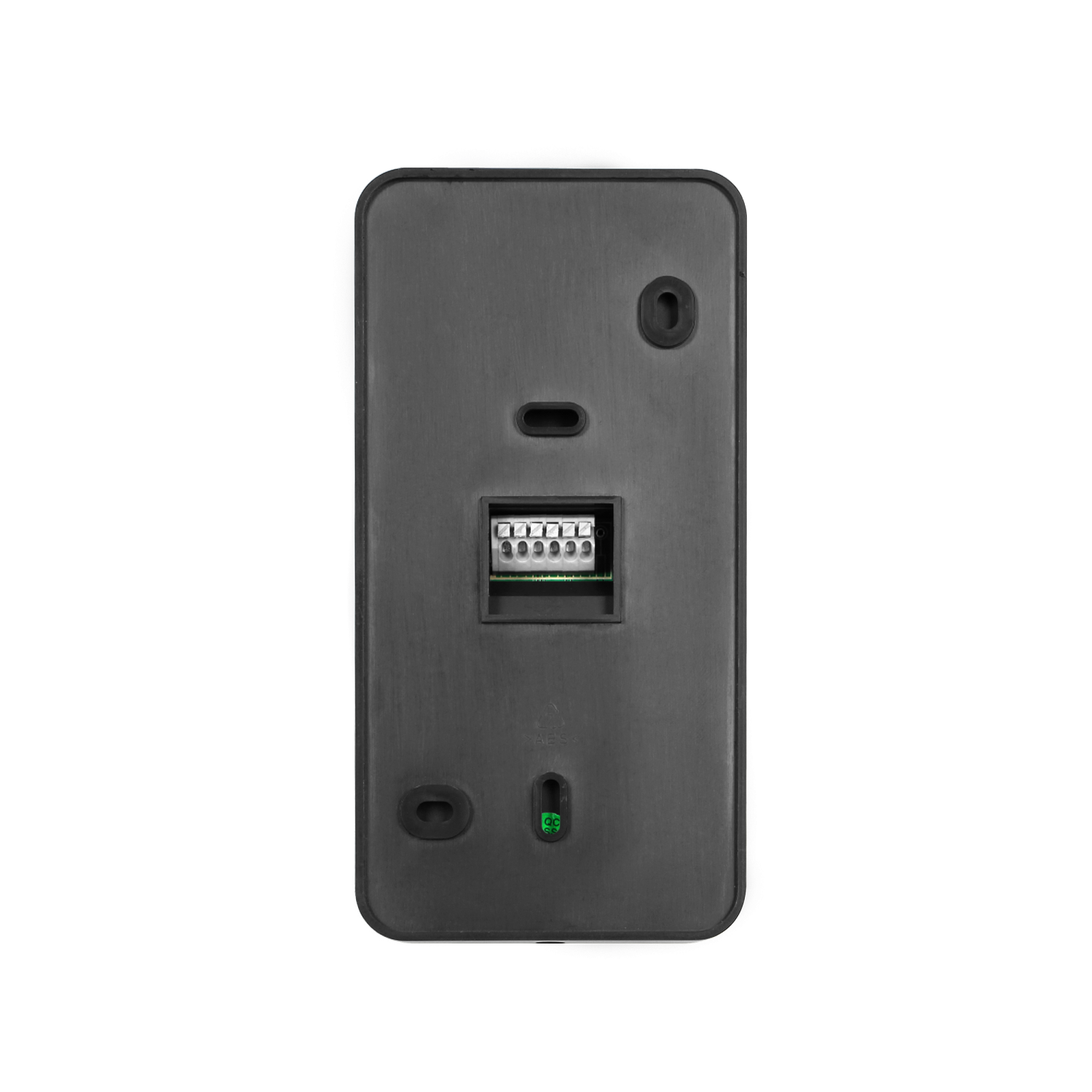

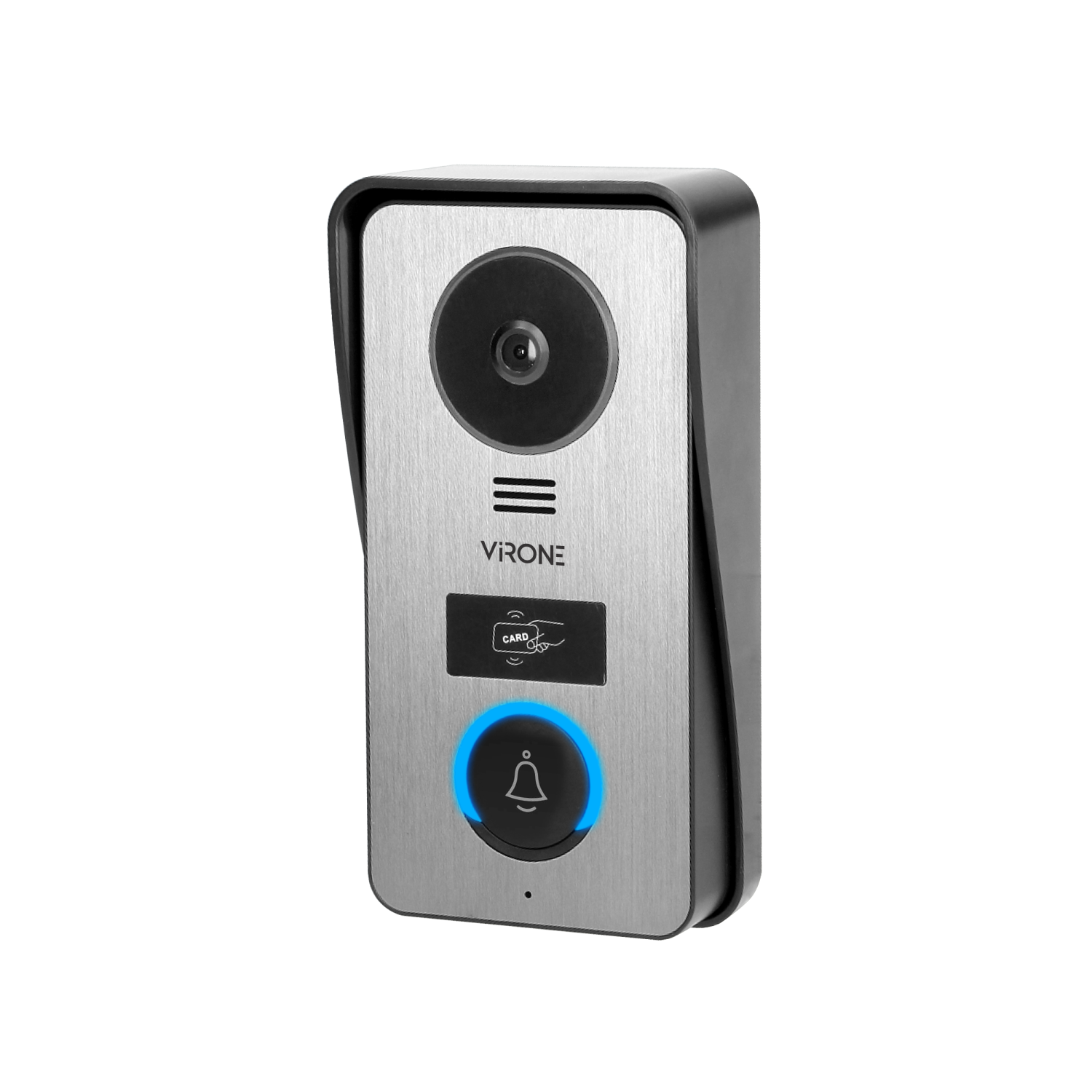

| External panel: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| Camera resolution: | 1920x1080 |
| Camera view angle (vertical): | 54° |
| Camera view angle (horizontal): | 112° |
| Night light: | IR |
| With digital door code: | nie |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 125kHz |
| Label space/information surface: | nie |
| With cover: | tak |
| Degree of protection (IP): | IP55 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Srebrny |
| Width [mm]: | 87 |
| Height [mm]: | 168 |
| Depth [mm]: | 40 |
| Other features: | RFID - max. 24 użytkowników (breloki w zestawie: 5 użytkownika + 2 administracyjne) |
