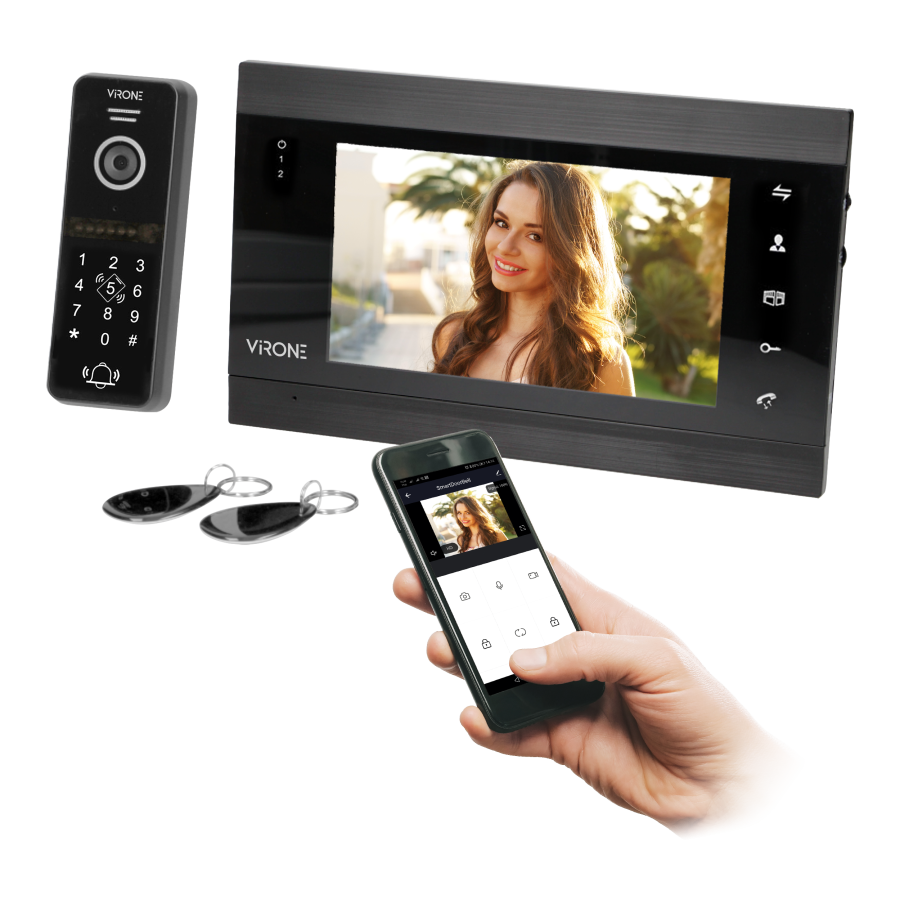

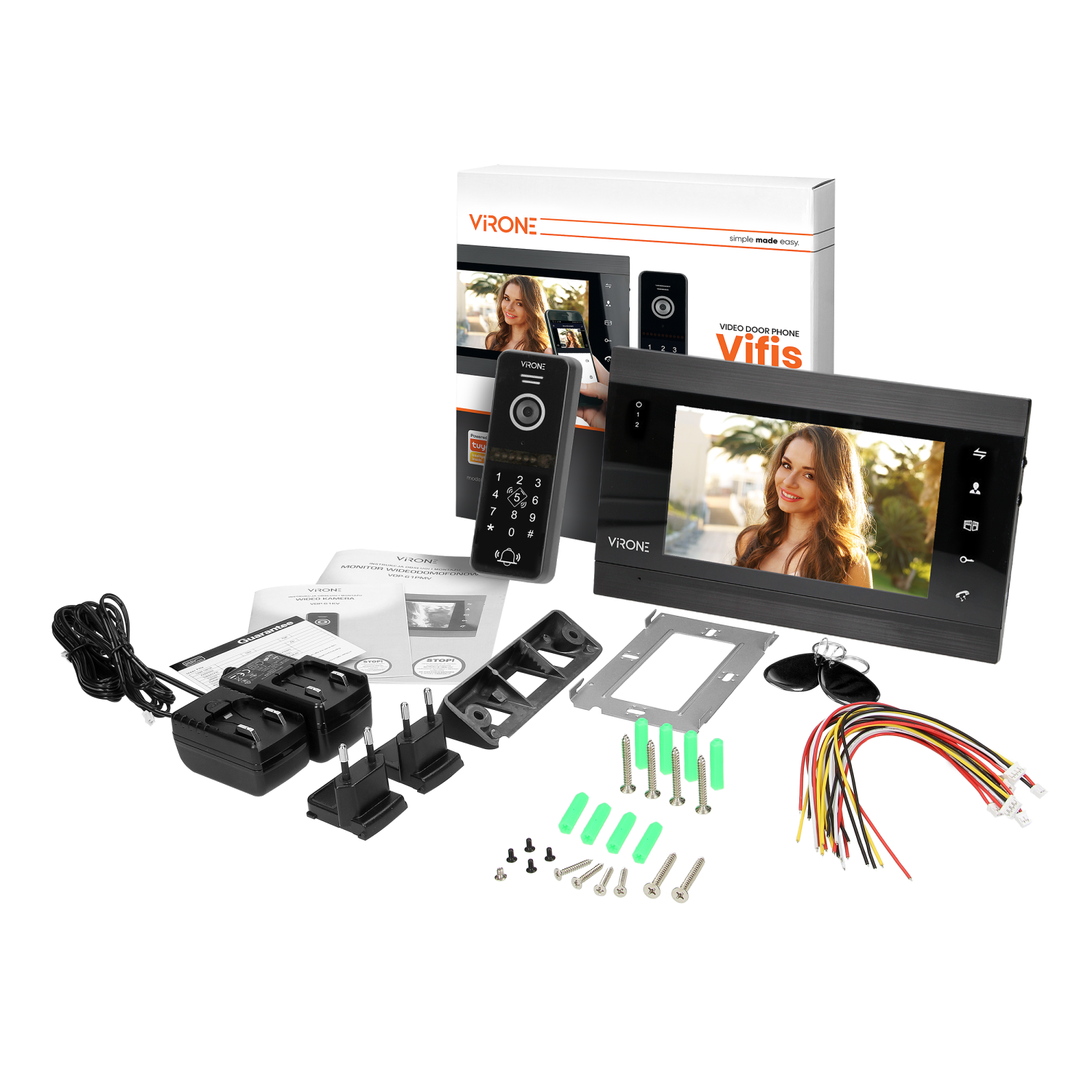

An innovative VIFIS video doorphone set includes a multicolor, ultra-flat 7" LCD monitor and an outdoor video camera. Communication between the indoor and outdoor panels does not require any uniphone. Users can download a free TUYA app to manage the device directly from their smartphones. An additional lighting of the camera panel, provided by bright IR diodes, enables excellent night vision. It has a numeric code lock (to enter pin codes) and cards and proximity tags reader to log in authorized users only. The set enables intercom connection, film and picture recordinggate control function and door lock opening. The set can be expanded with additional VIFIS devices.
| General information: | |
|---|---|
| Type: | single-family |
| Number of wires: | 4+2 |
| Type of power supply: | mains power supply |
| Type of transmission: | wired/WiFi |
| Possibility of extension by an additional external panel: | Yes |
| Possibility of extension by an additional monitor: | Yes |
| Possibility of extension by an additional video uniphone: | No |
| Gate opening: | Yes |
| Current supply of the electric strike: | power supply from the video intercom |
| Connection system: | 4-wire |
| Possibility of extension by an additional cctv camera: | Yes |

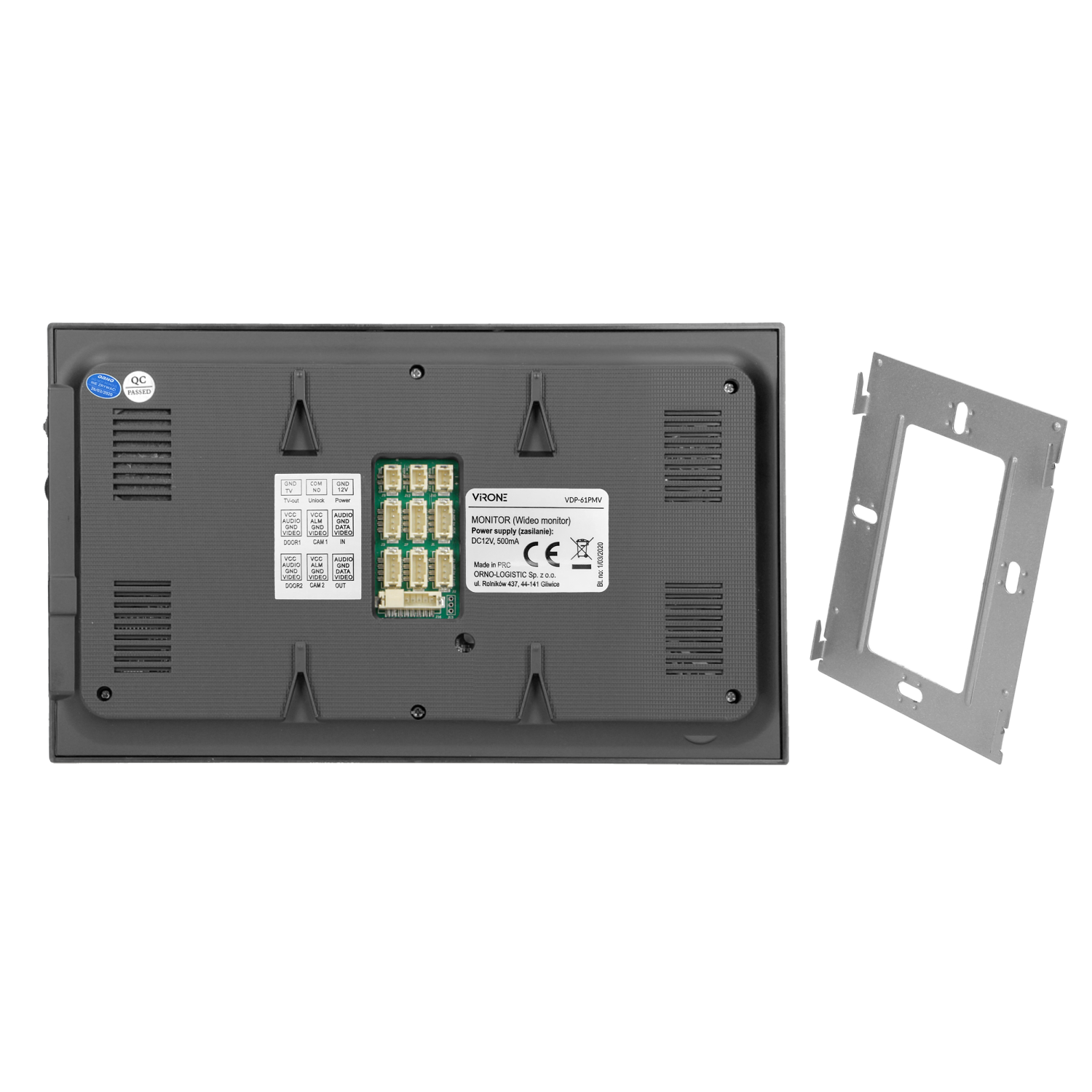

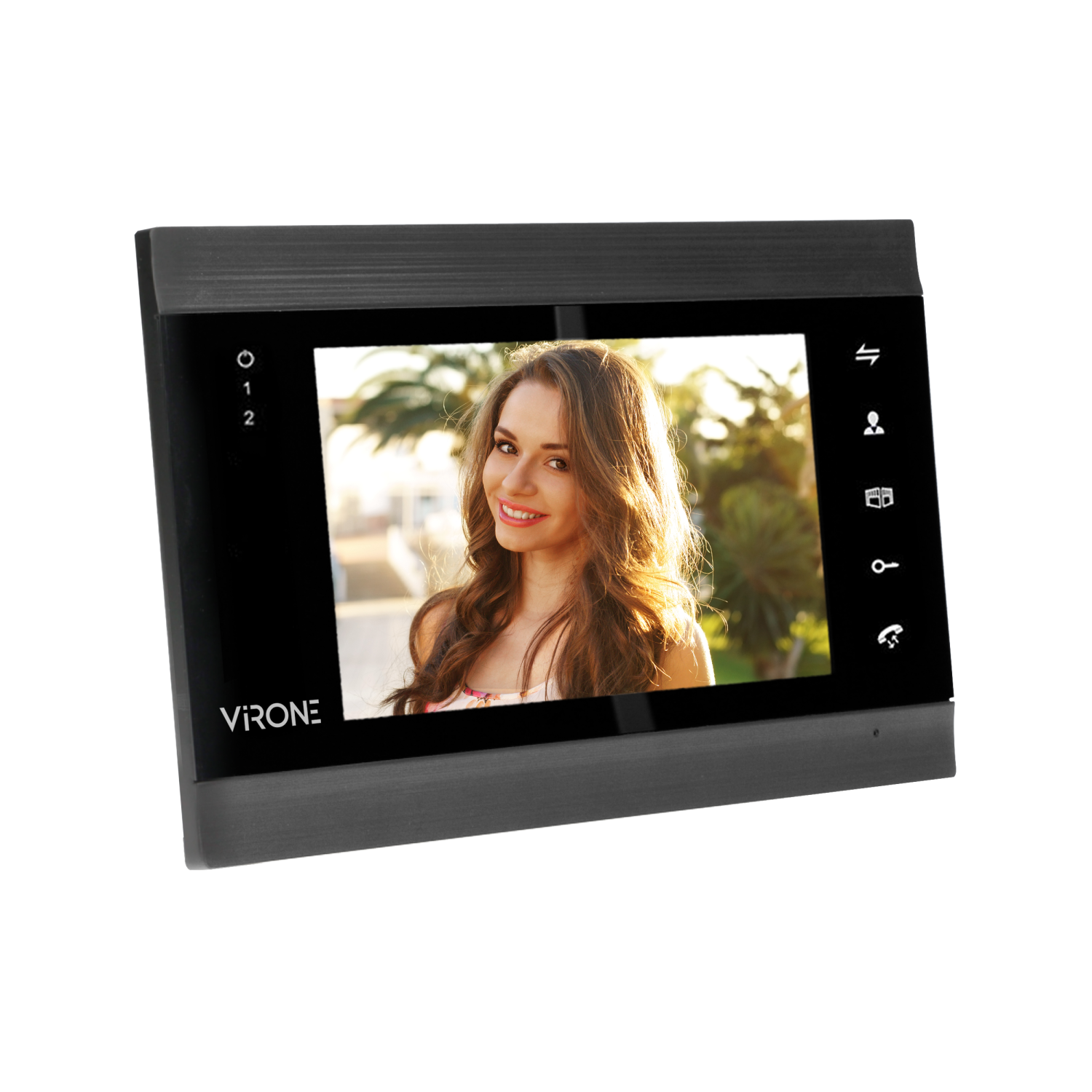

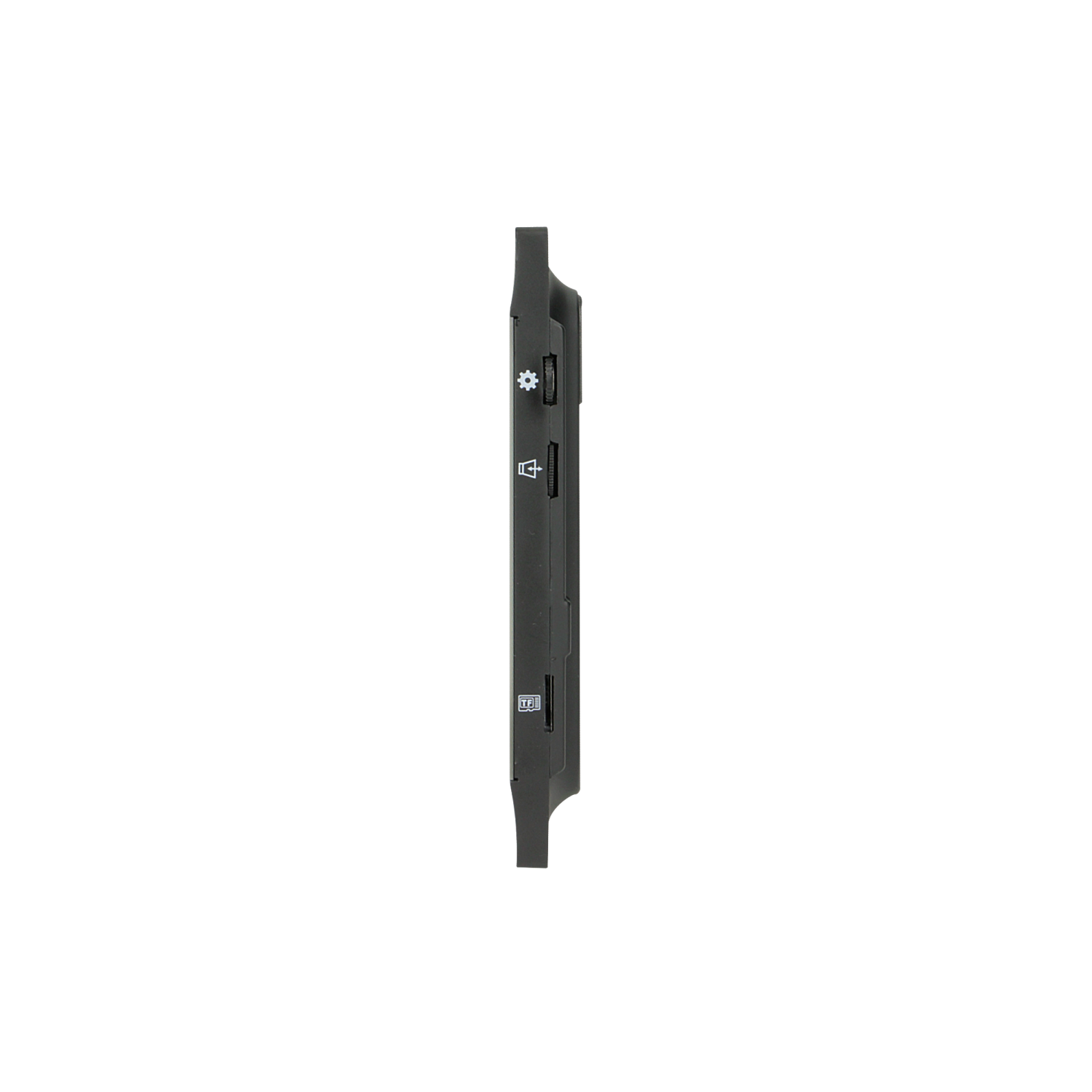

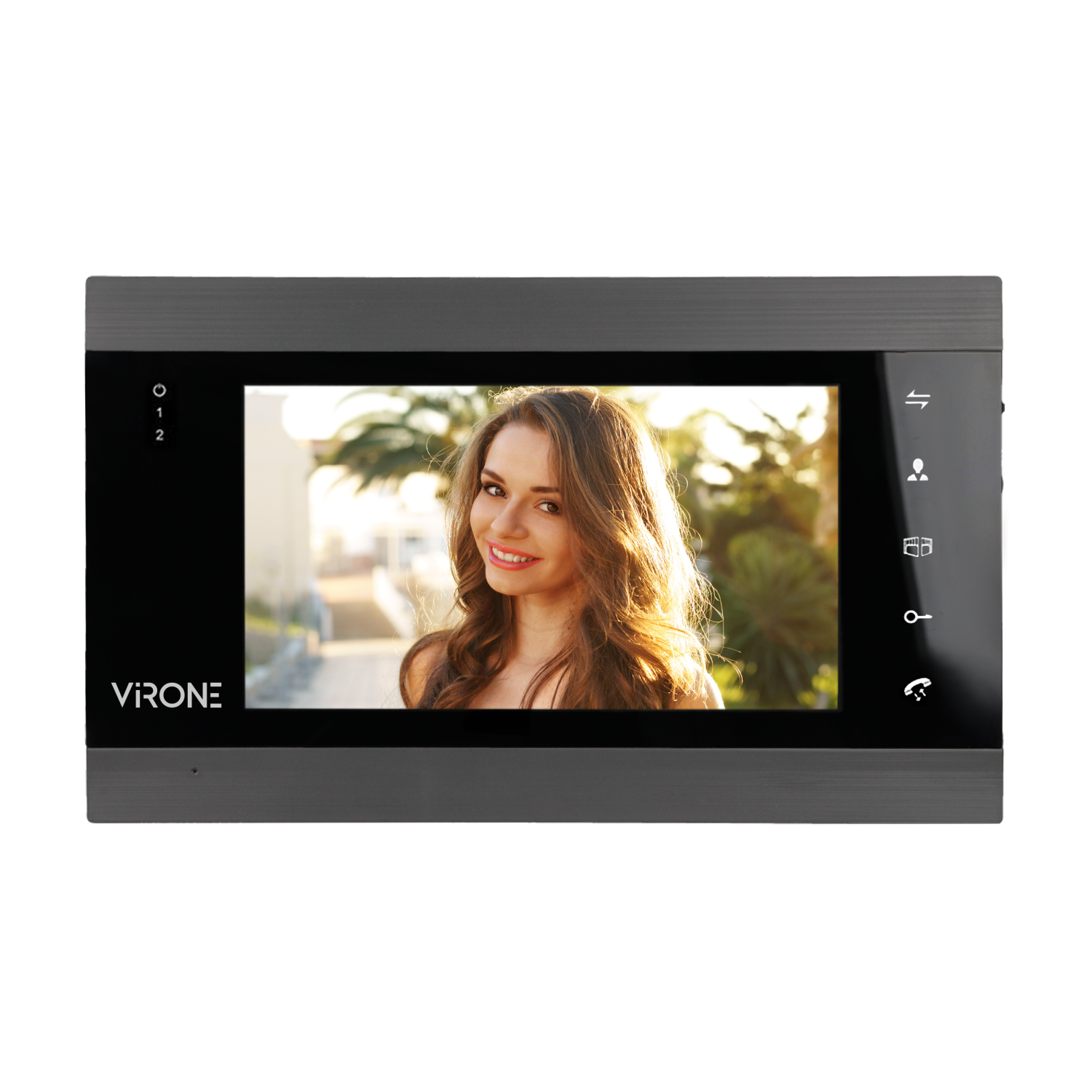

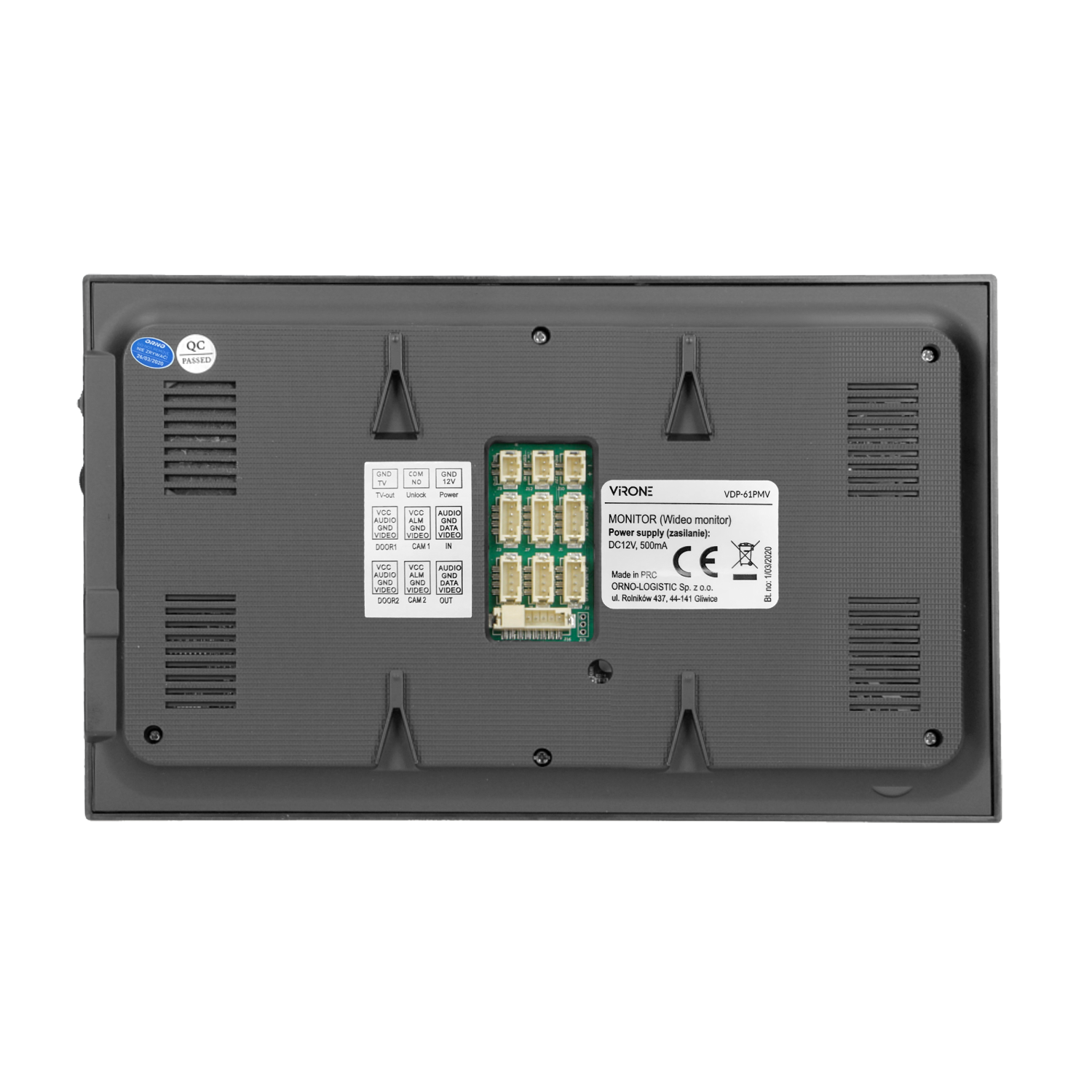

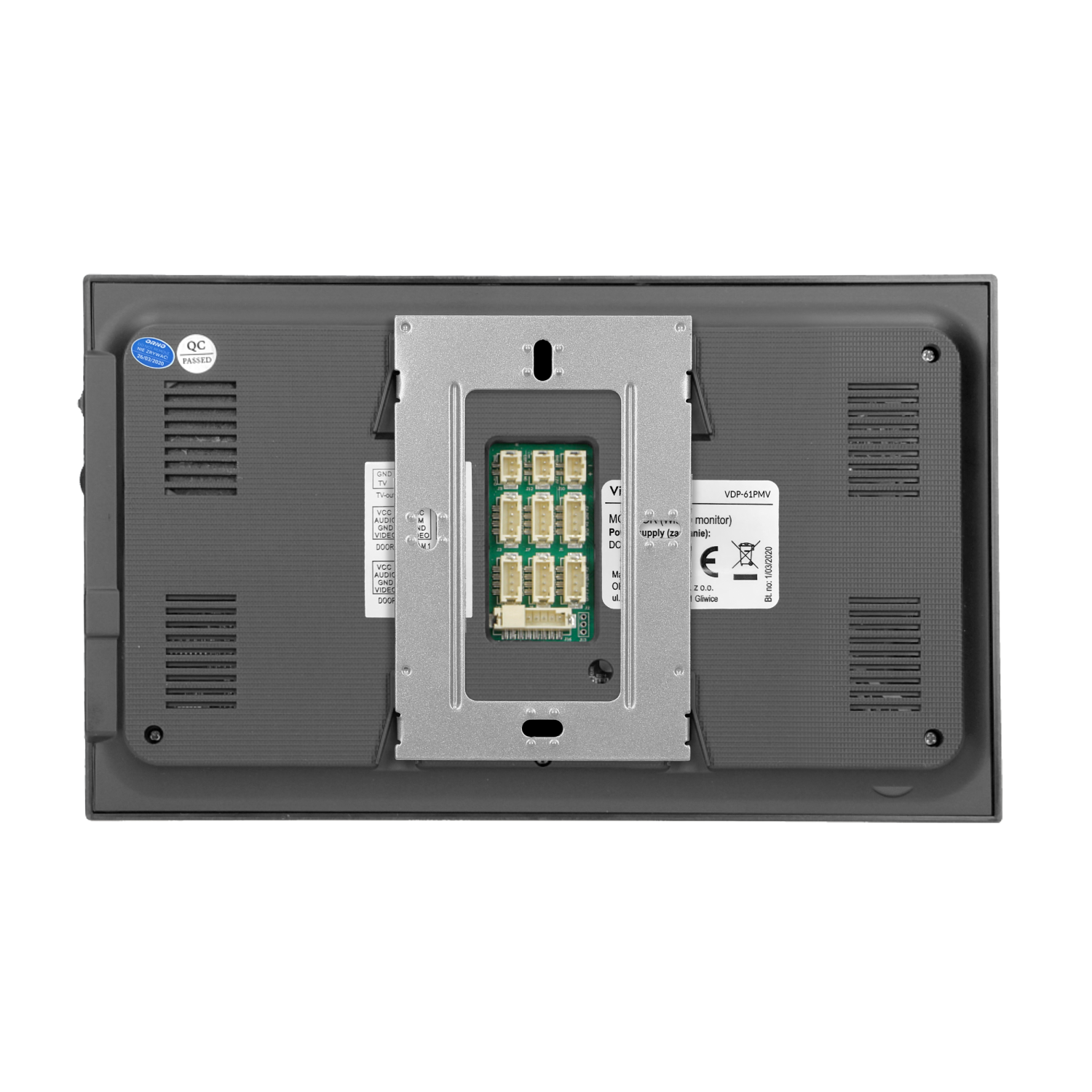

| Monitor: | |
|---|---|
| SD card reader: | Yes |
| Operation: | hands-free |
| Display: | 7 " |
| Resolution of the monitor's screen: | 1024/600 |
| Colour of the monitor: | black |
| Memory: | Yes |
| Intercom function: | Yes |
| Touch screen: | No |
| Other features of the monitor: | Wi-Fi - Android/iOS APP DVR, digital frame, MP3, answering machine, clock |
| Dimensions of the of the monitor - width (mm): | 145 mm |
| Dimensions of the of the monitor - height (mm): | 235 mm |
| Dimensions of the of the monitor - depth (mm): | 61 mm |

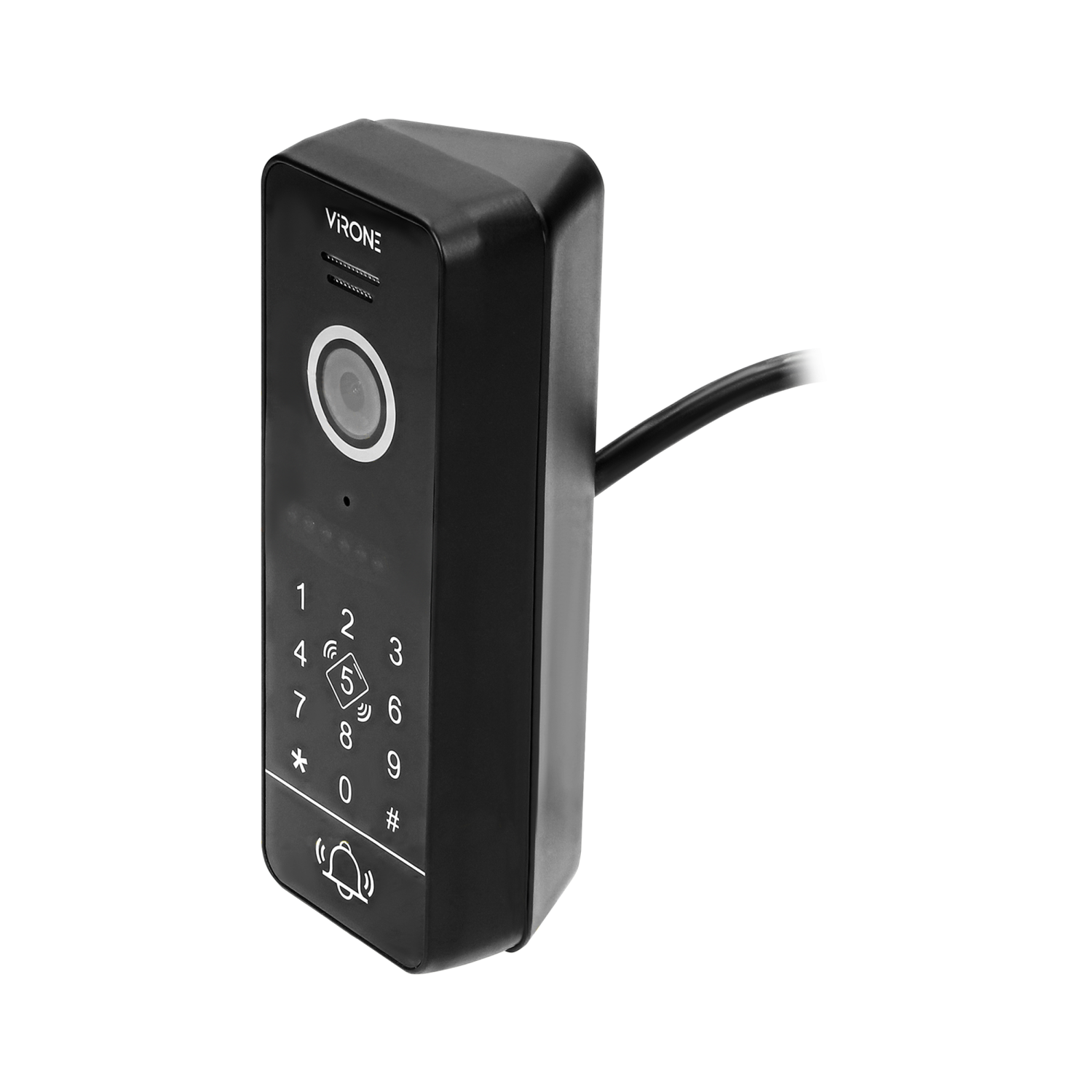

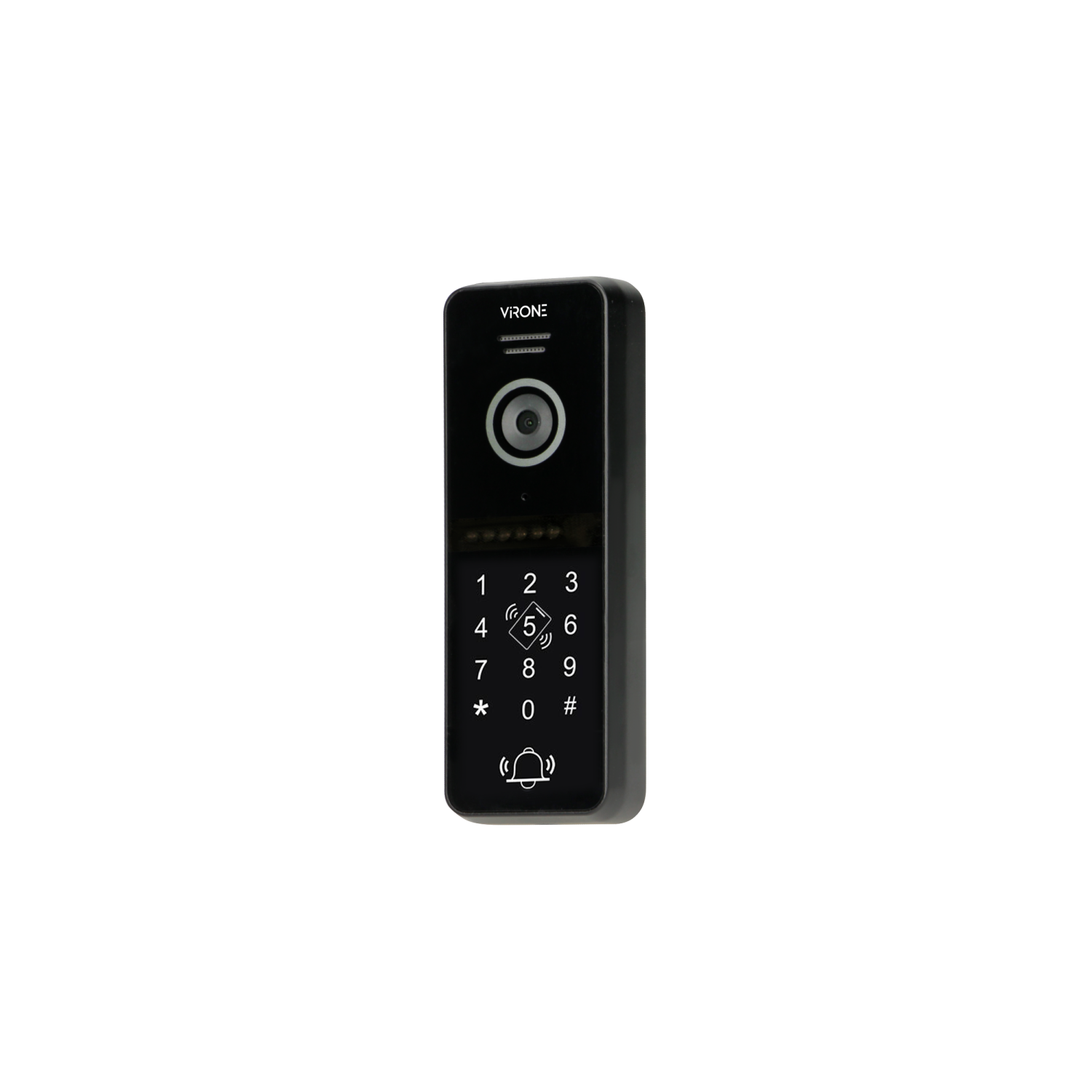

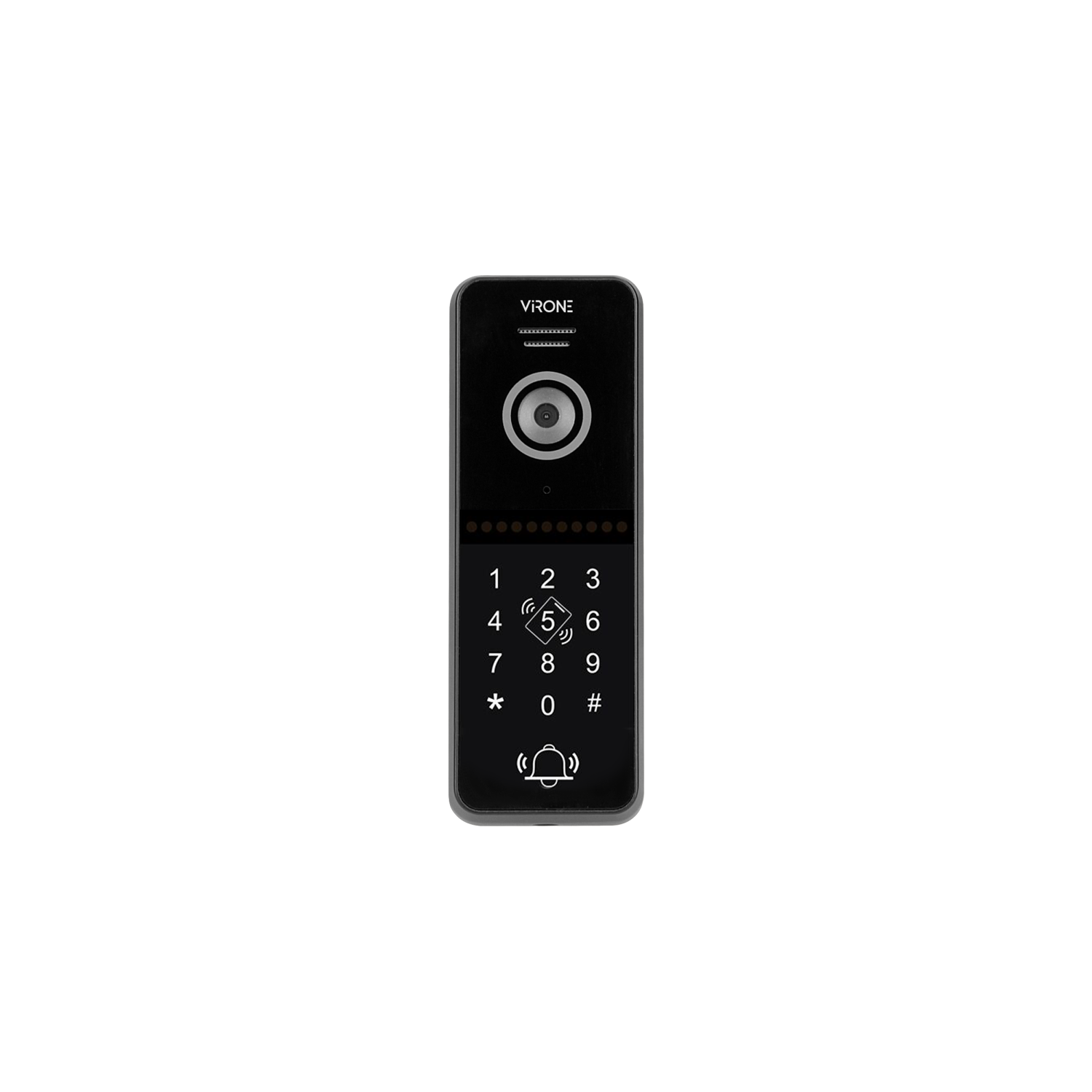

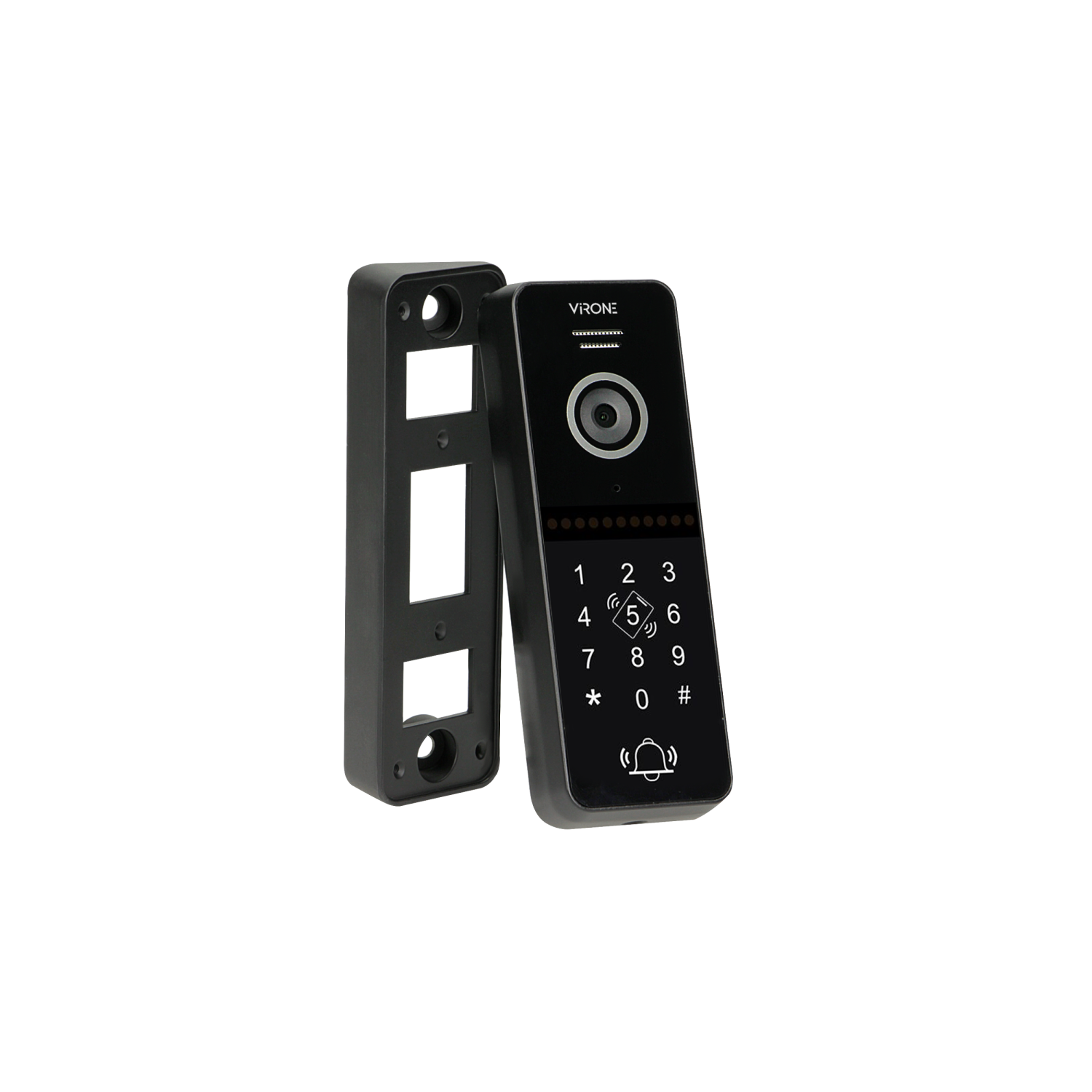

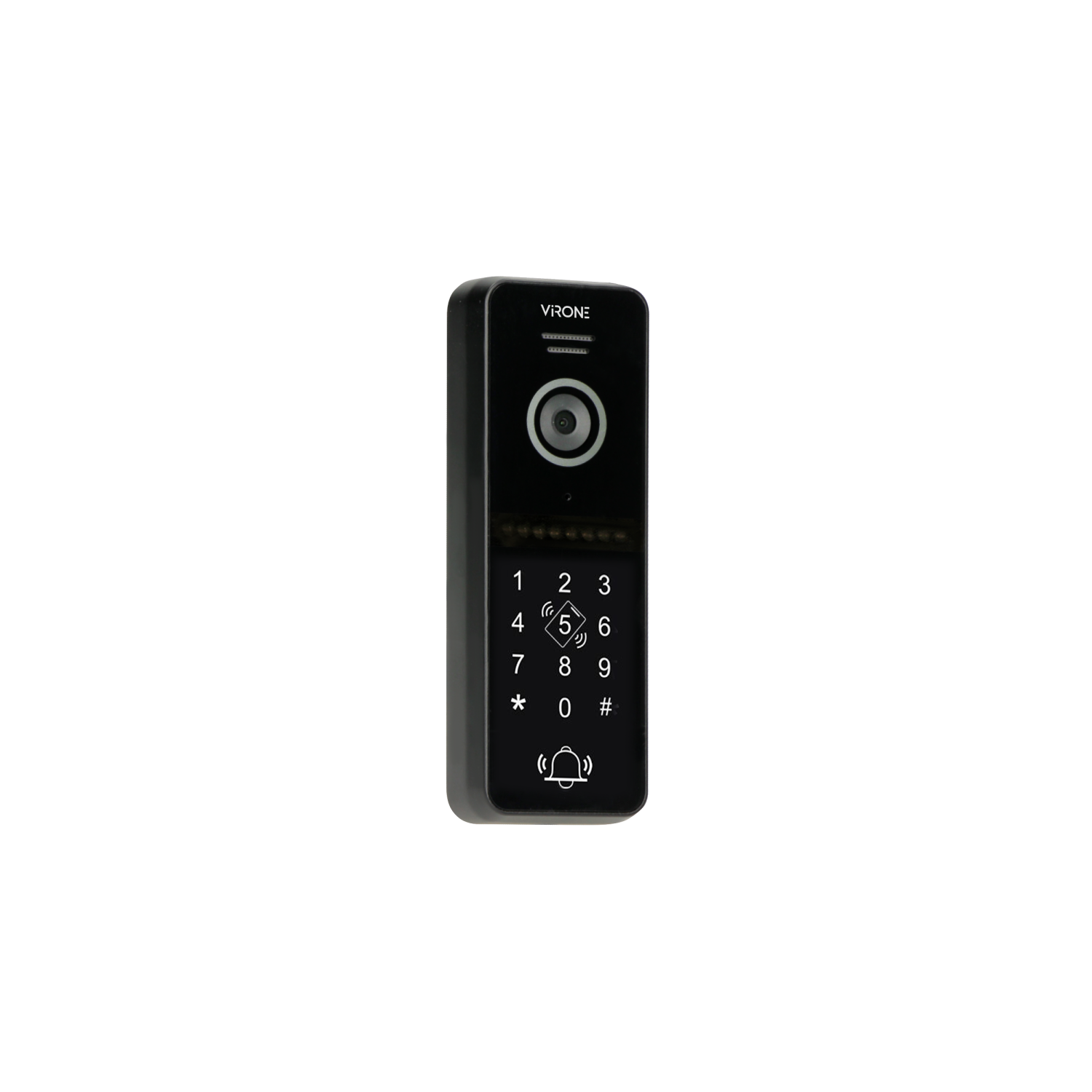

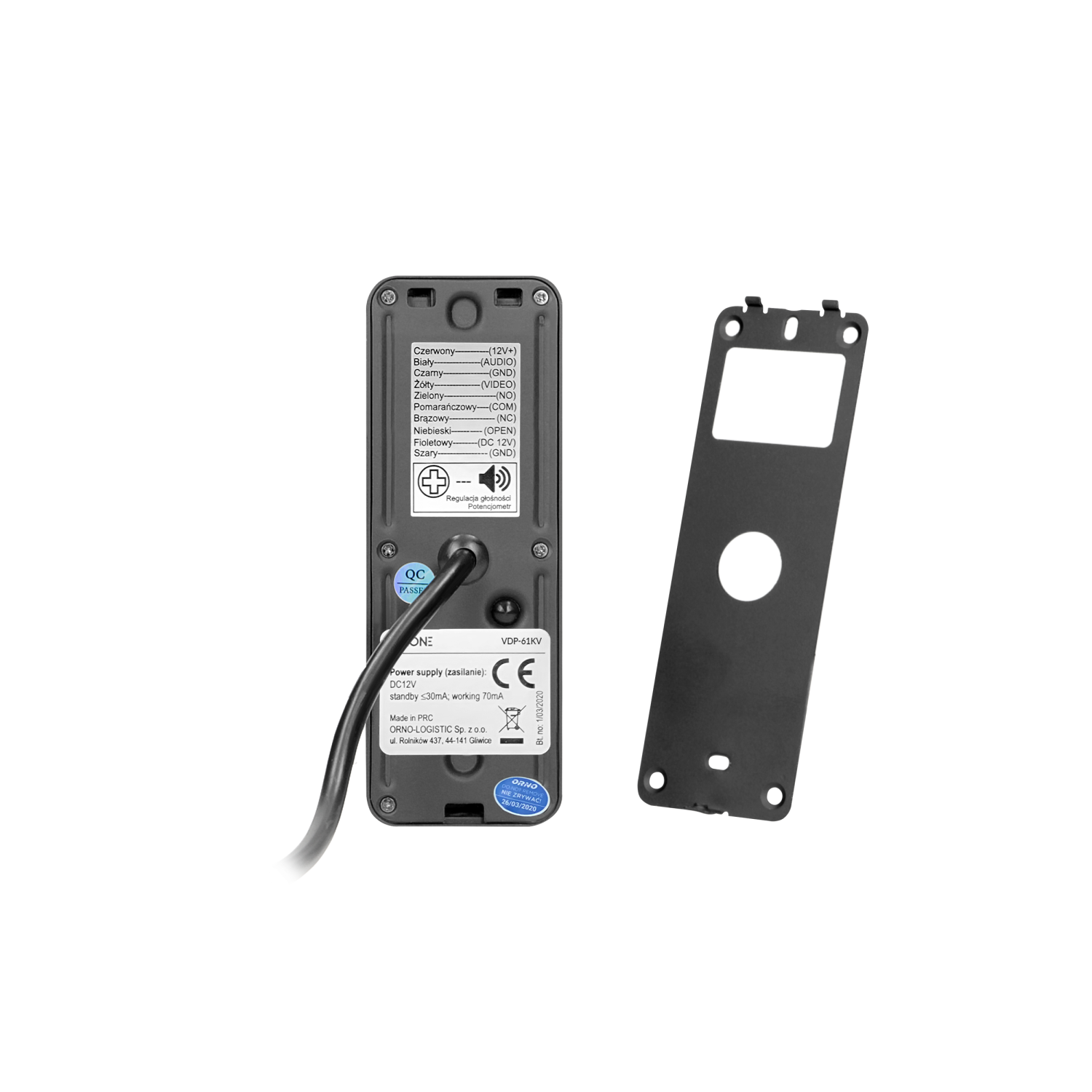

| External panel with a camera: | |
|---|---|
| Resolution of the camera: | 960 P |
| Vertical/horizontal camera's view angle: | 58,5 ° /110 ° |

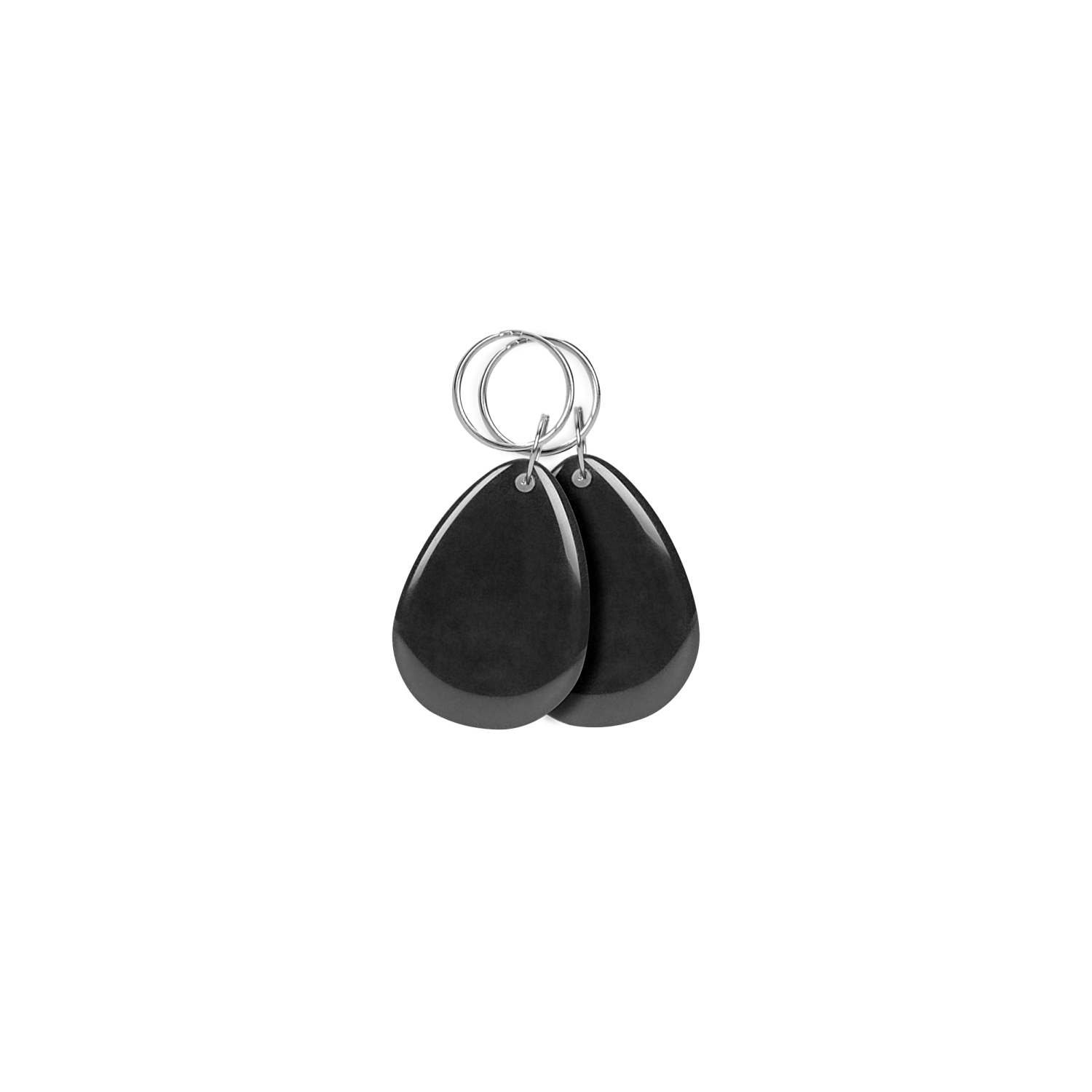

| Card and proximity tags reader: | Yes |
| Type of camera: | traditional lens |
| Installation: | surface mounting |
| Keypad: | Yes |
| Night lighting: | IR |

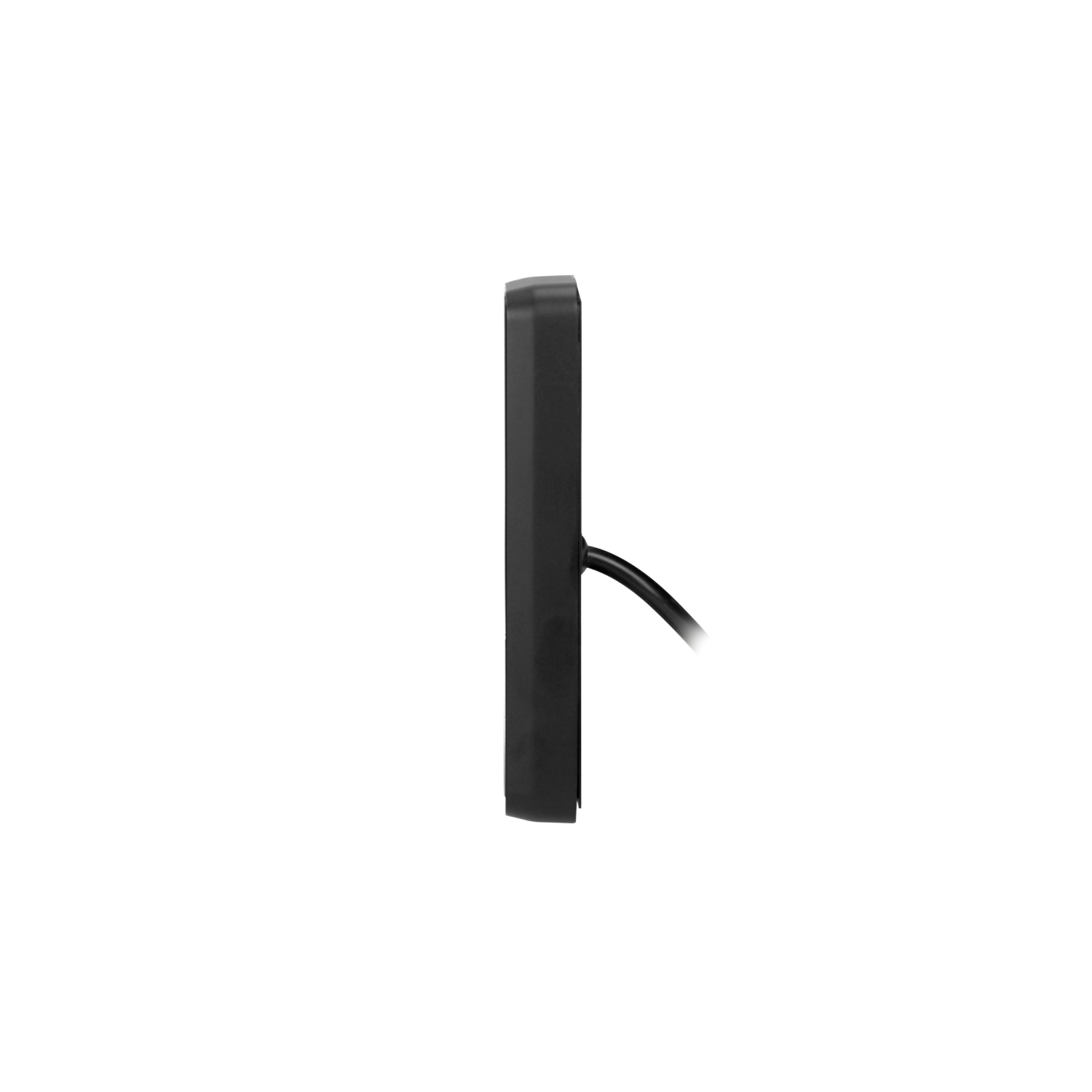

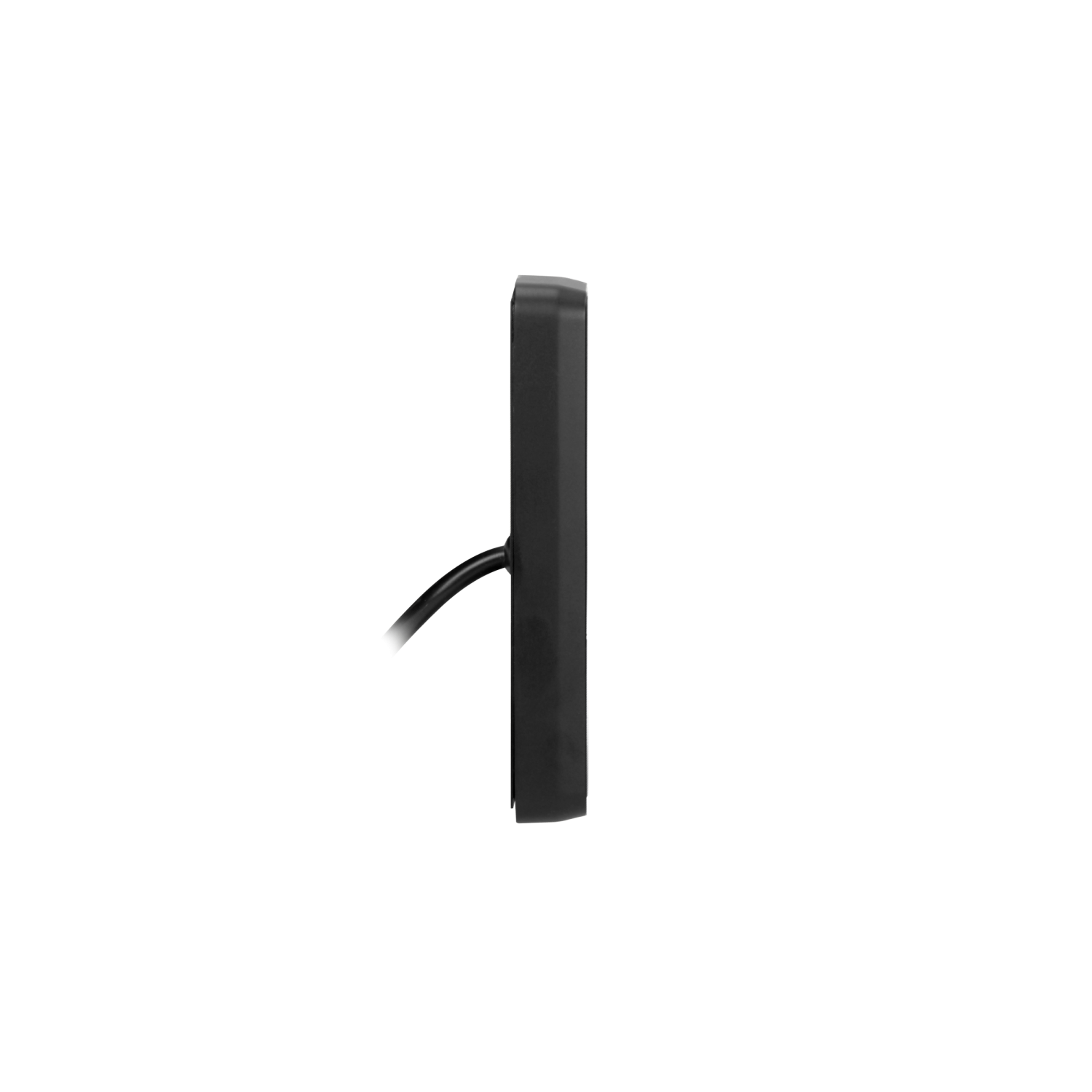

| Dimensions of the external panel - depth: | 22 mm |
| Dimensions of the external panel - width: | 48 mm |
| Dimensions of the external panel - height: | 133 mm |
