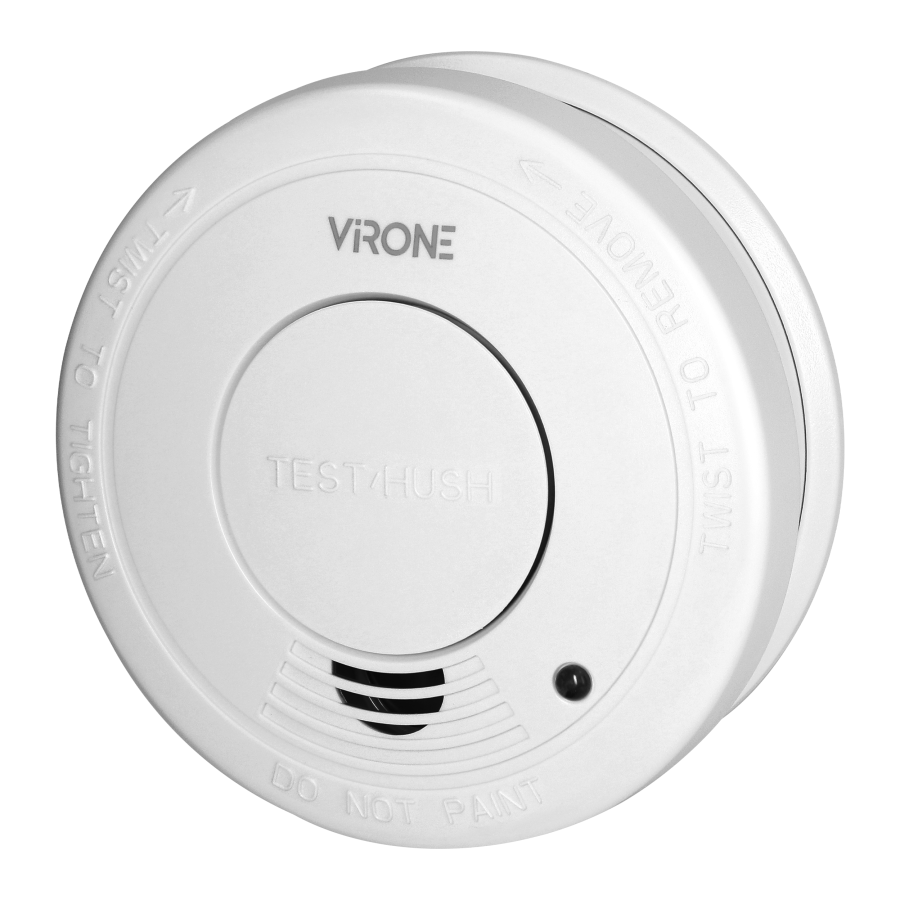

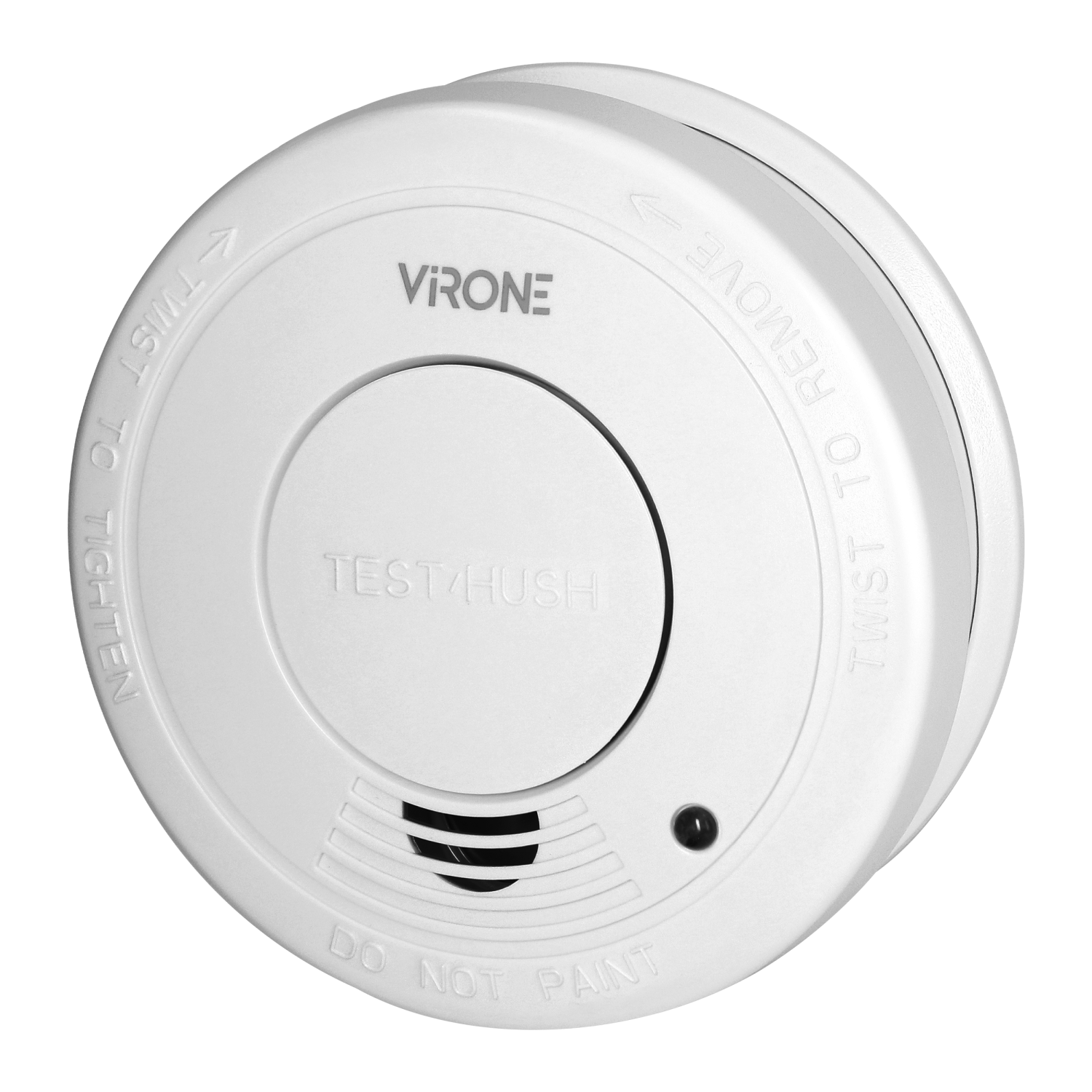

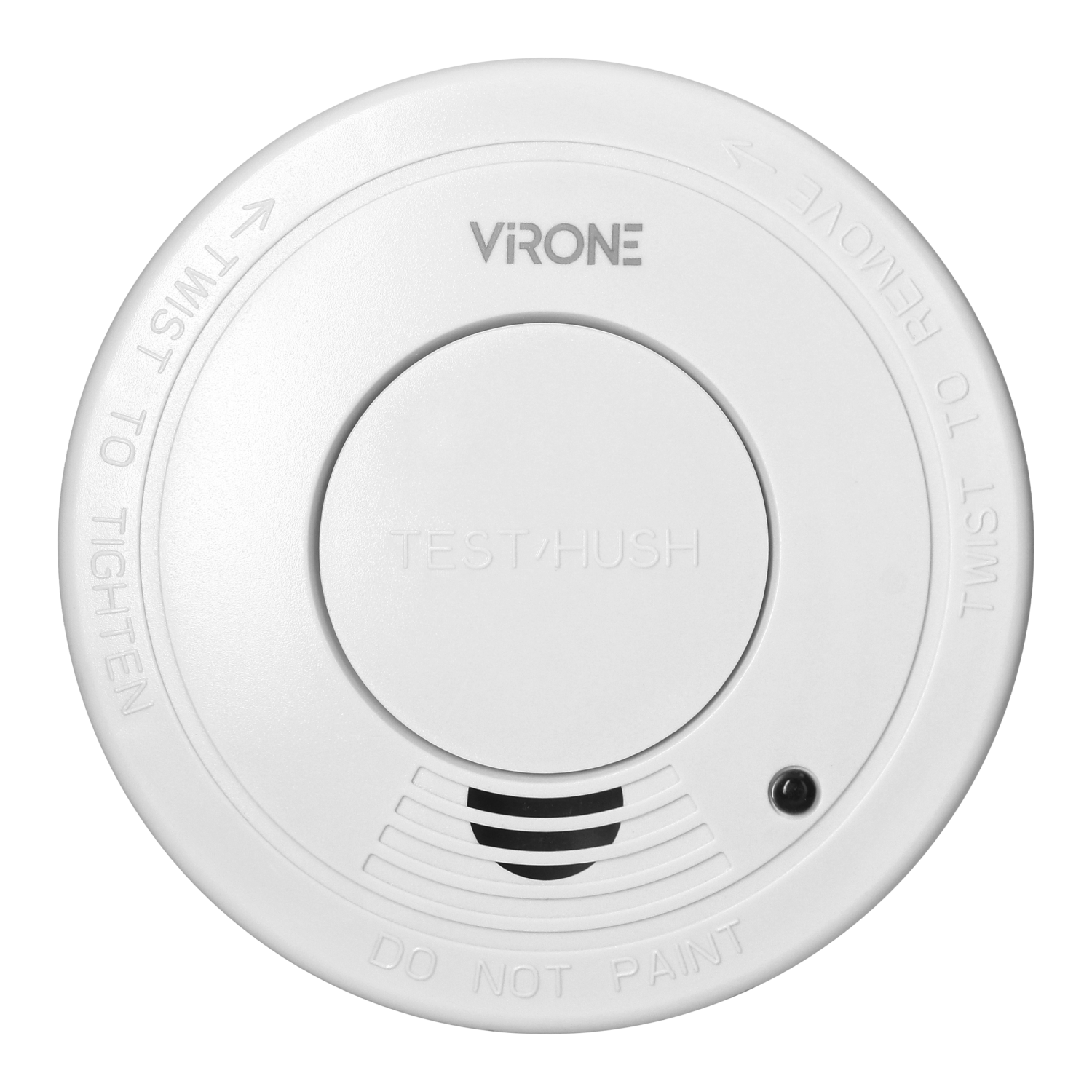

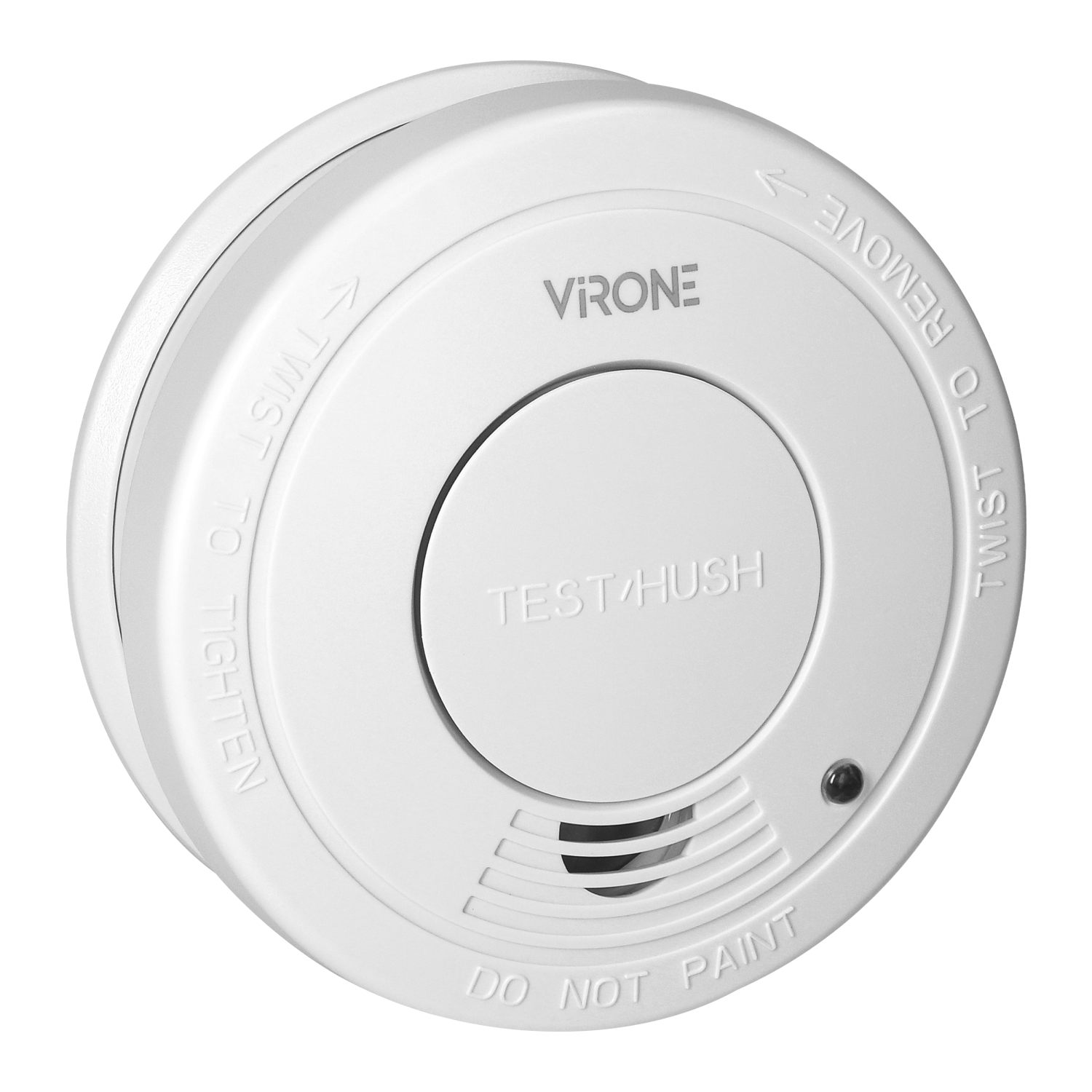

A battery-operated smoke detector is a device that identifies smoke particles in a closed room and alerts of the danger at an early stage of a possible fire. The photoelectric smoke detector works well as an additional means of monitoring the hazard and thus protecting wherever there is a risk of fire ignition.

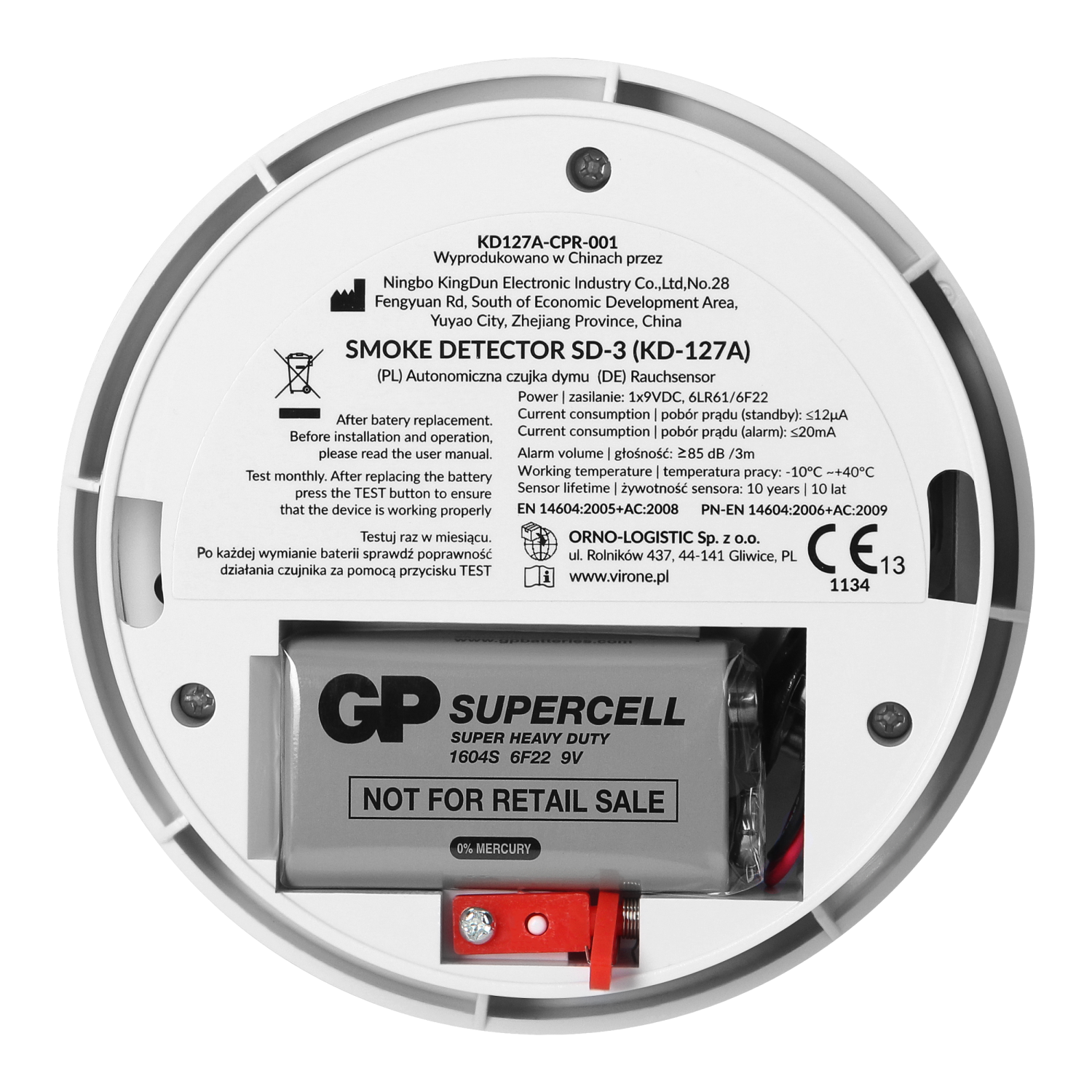

The small and lightweight autonomous smoke detector is designed for self-assembly and operation. Powered by included 6LR61 or 6F22 batteries. The device alarms of danger (the alarm volume is 85dB) and also indicates when to replace a depleting battery. In addition, it is equipped with LED for visual indication.
The lifetime of the sensor is 10 years and the whole device is compliant with standards: EN 14604:2006+AC:2009, EN 14604:2005/AC1:2008 as certified by ANPI. The battery-operated smoke detector also has a TEST button to check that the device is functioning correctly.
| General information: | |
|---|---|
| Operating principle: | Optyczny |
| Optical notification: | Tak |
| Acoustic notification: | Tak |
| Loudness [dB(A)]: | ≥85db/3m |
| Response temperature [°C]: | -10°C ~ +40°C |
| Smoke switcher: | Tak |
| Type of test-/pause button: | Kombinowany |

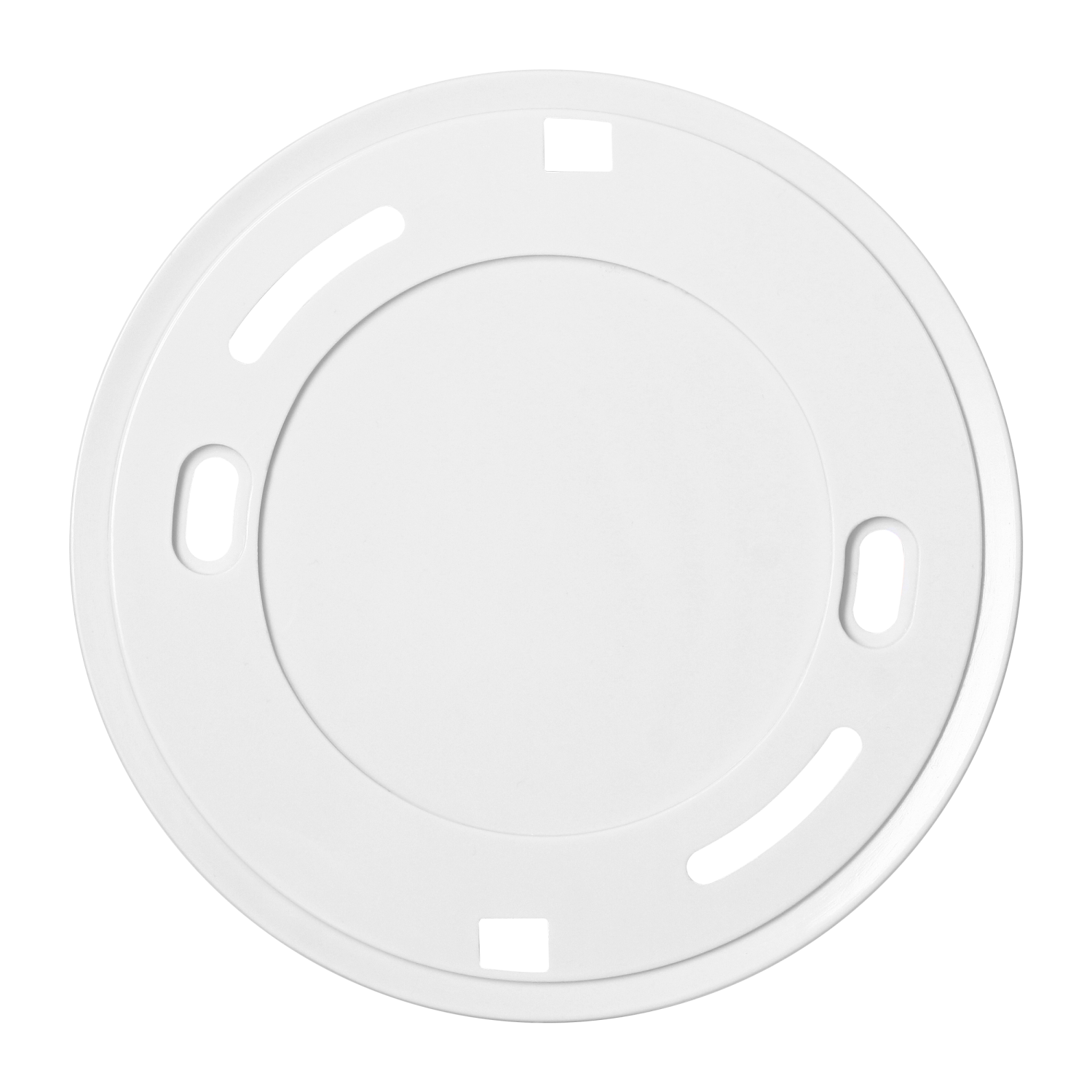

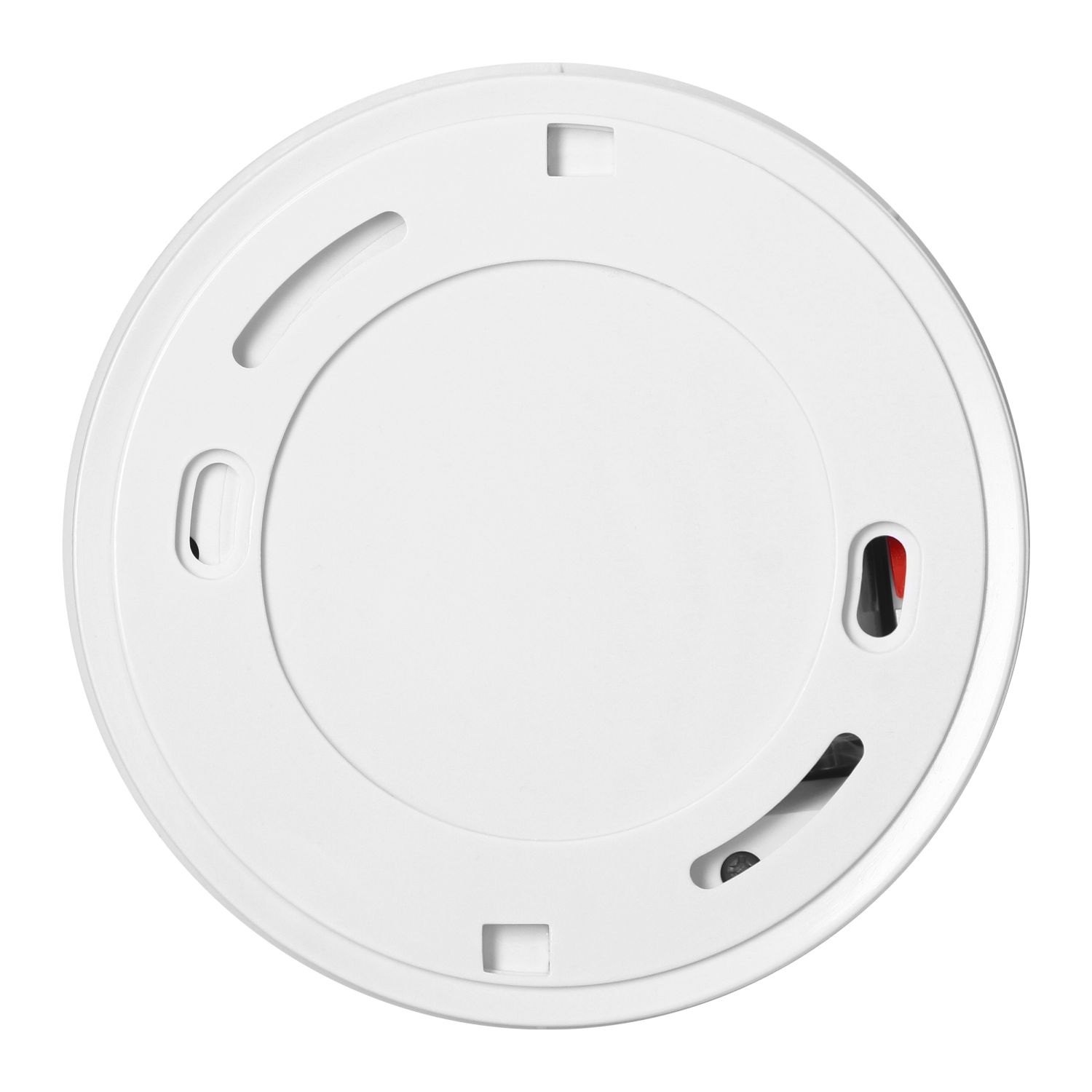

| Mounting method: | Montaż powierzchniowy |
| Self-adhesive: | Nie |
| Standalone: | Tak |
| Current supply primary: | Bateria/akumulator |
| Voltage type (supply voltage): | DC |
| Supply voltage DC [V]: | 9 |
| With backup battery: | Tak |
| Battery included: | Tak |
| Voltage type (operating voltage): | DC |
| Operating voltage DC [V]: | 9 |
| Colour: | Biały |
| Degree of protection (IP): | IP20 |
| Height/depth [mm]: | 36 |
| Diameter [mm]: | 102 |
| Type of sensor: | fotoelektryczny |
| Sensor lifetime: | 10 lat |
| Compliant standards: | EN 14604:2005+AC:2008; PN-EN 14604:2006+AC:2009 |
| Certification authority: | ANPI |
| Manufacturer name: | NINGBO KINGDUN ELECTRONIC INDUSTRY CO.,LTD. NO.8 FENGYUAN ROAD,SOUTH OF ECONOMIC DEVELOPMENT AREA,YUYAO CITY, ZHEJIANG PROVINCE CHINA |
