Transmitters

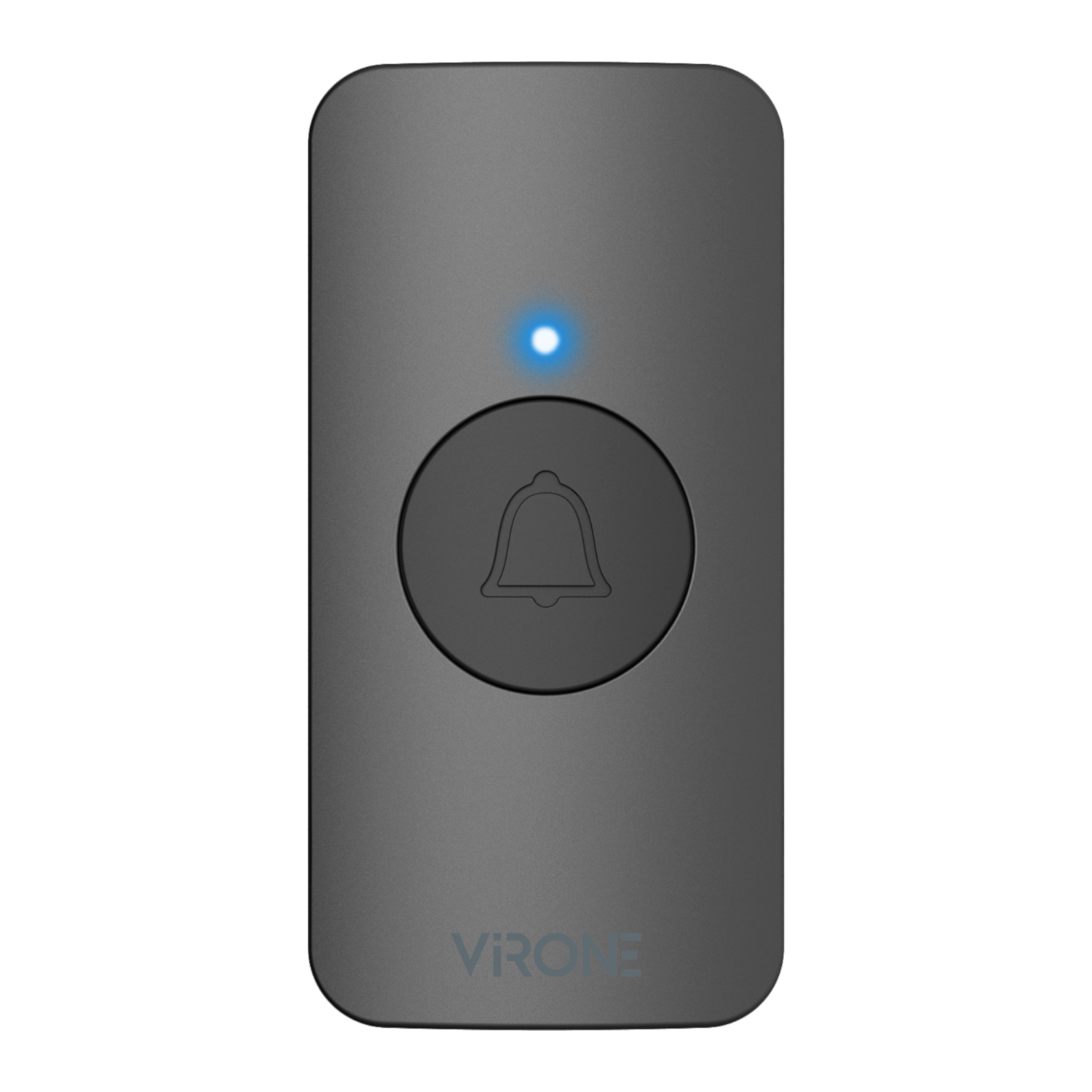

The battery-operated wireless button to extend ENGA series is a functional and convenient solution that requires no complicated installation. The transmitter can be placed at the door or wicket, and a range of up to 200 m in an open field allows installation at a considerable distance from the building.
The transmitter uses the supplied CR2032 battery. The unit operates on a frequency of 433.92 MHz. The IP44 rate guarantees resistance to dust and moisture, ensuring reliable operation in a variety of weather conditions. Additional backlighting increases visibility and comfort of use.
Thanks to the learning system, it is possible to add further transmitters and connect them to a single ENGA receiver. Transmitter dimensions: 30x60x15 mm. Black colour.
| General information: | |
|---|---|
| Wireless: | tak |
| Type of current: | DC |
| Nominal voltage [V]: | 3 |
| Battery - type and quantity : | CR2032 |
| Built-in battery: | tak |
| Transmitter max. power [mW]: | 10 |
| Degree of protection (IP): | IP44 |
| With lighting: | tak |
| With name plate: | nie |
| Shape: | Prostokątny |
| Colour: | Czarny |
| Material: | Tworzywo sztuczne |
| Mounting method: | Montaż natynkowy |
| Width [mm]: | 30 |
| Height [mm]: | 60 |
| Depth [mm]: | 15 |
