Transmitters

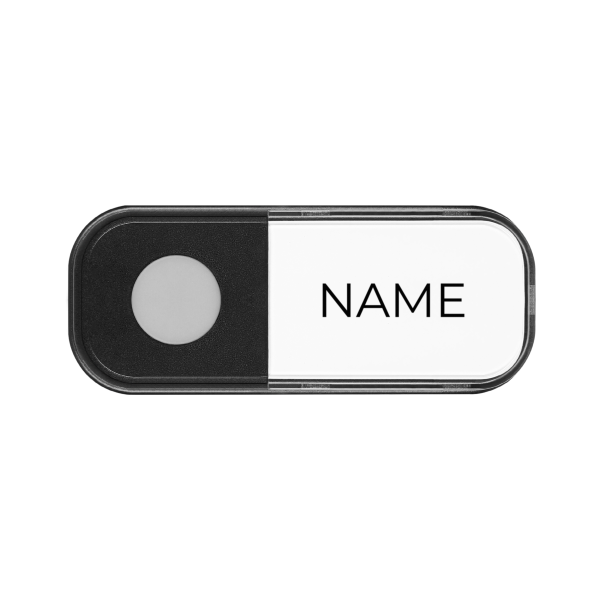

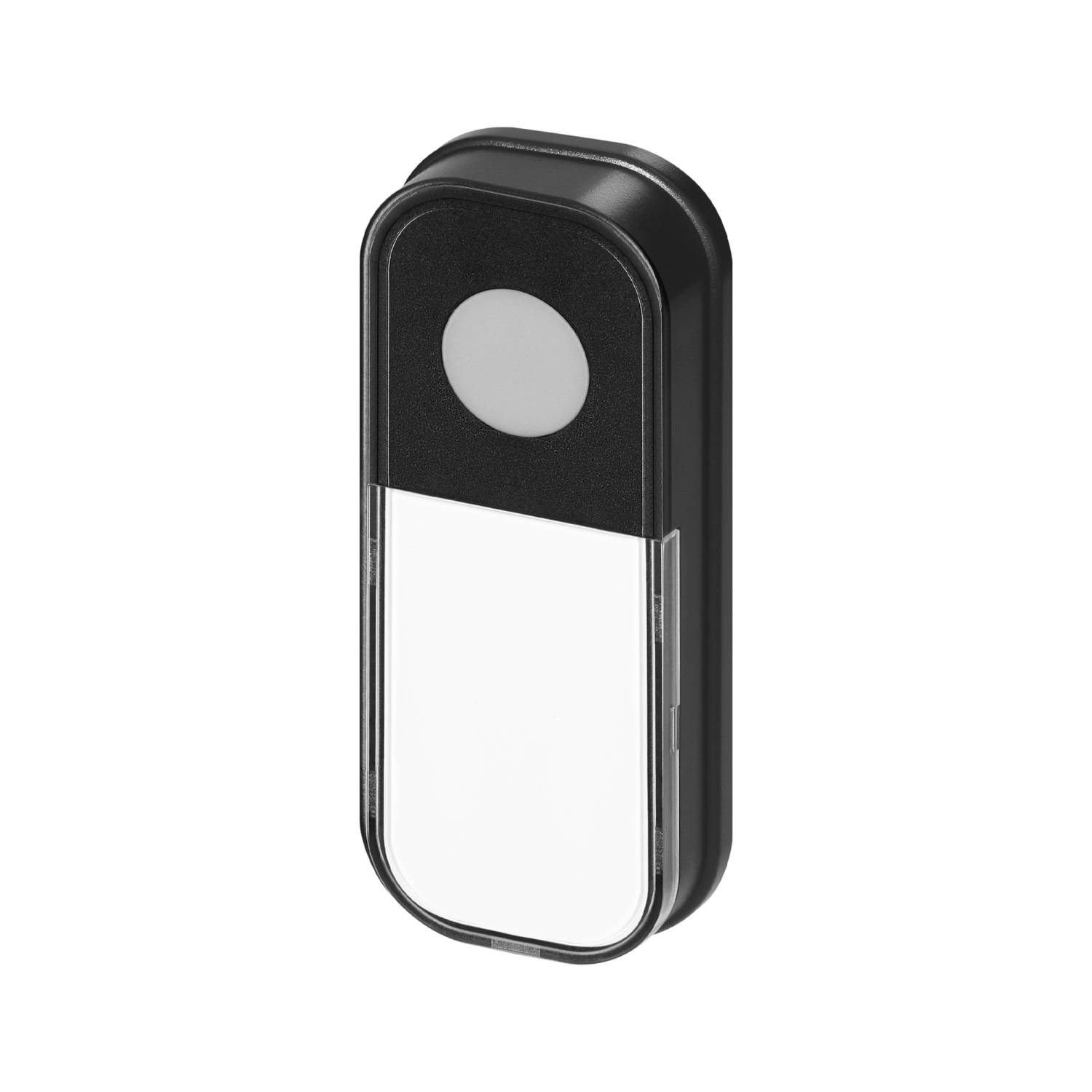

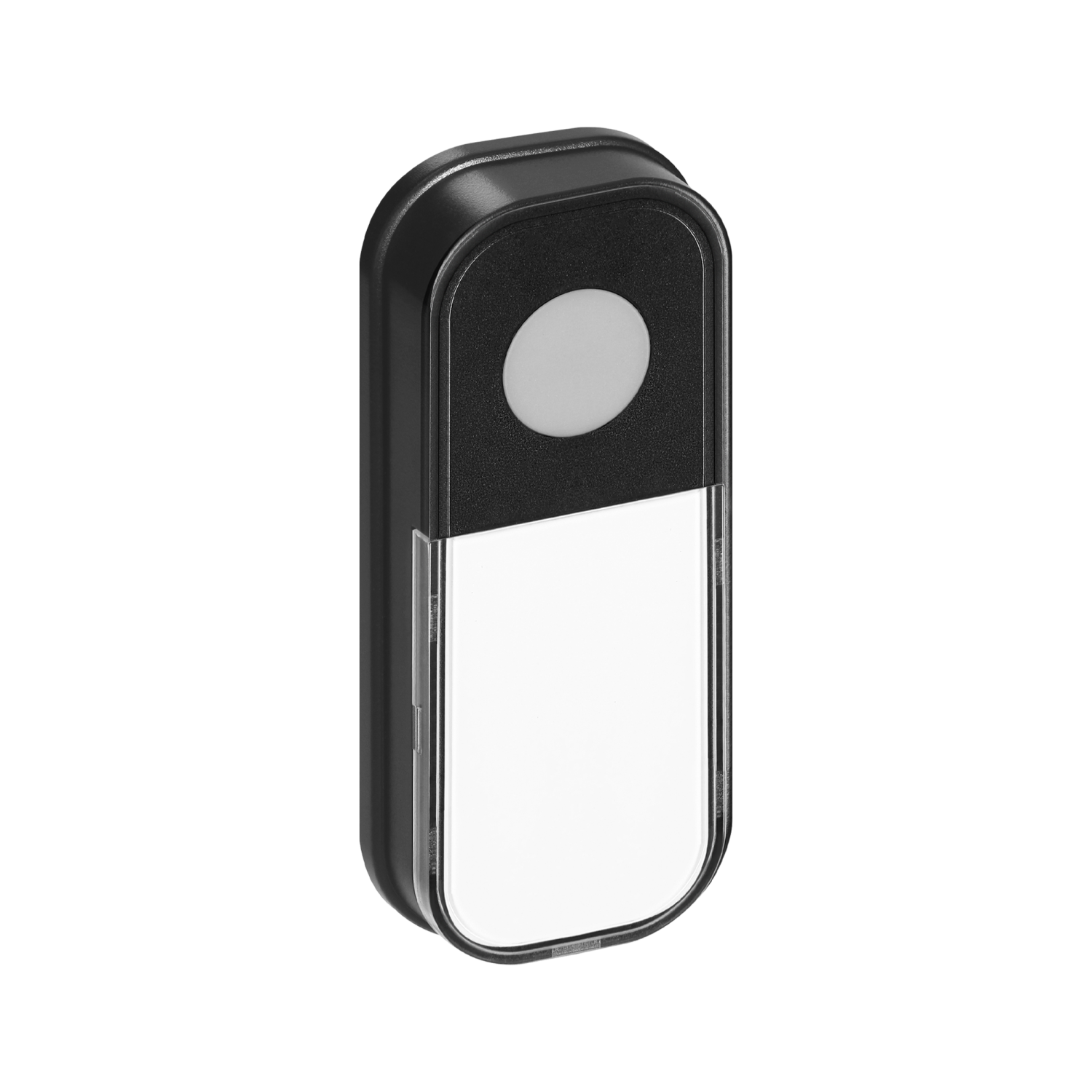

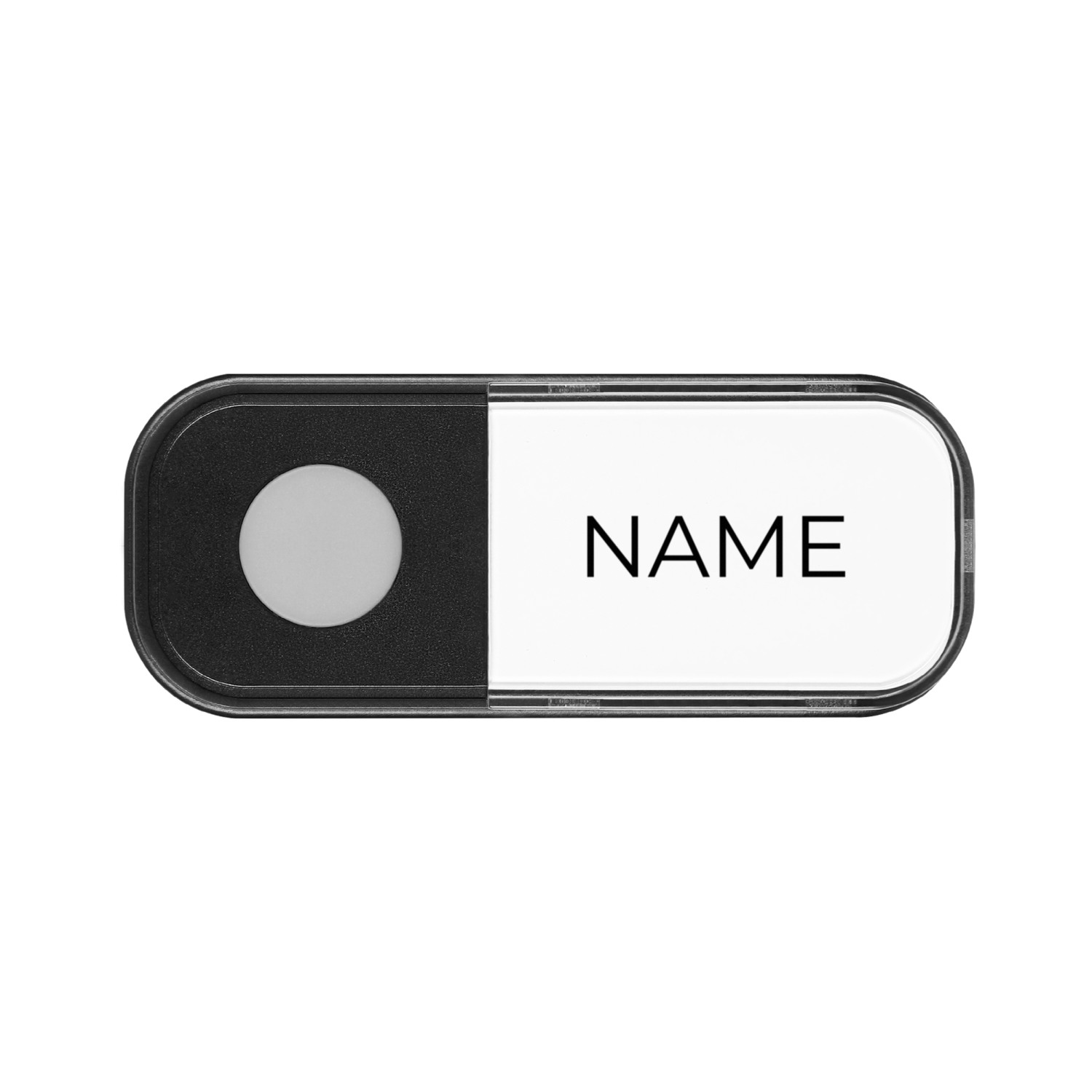

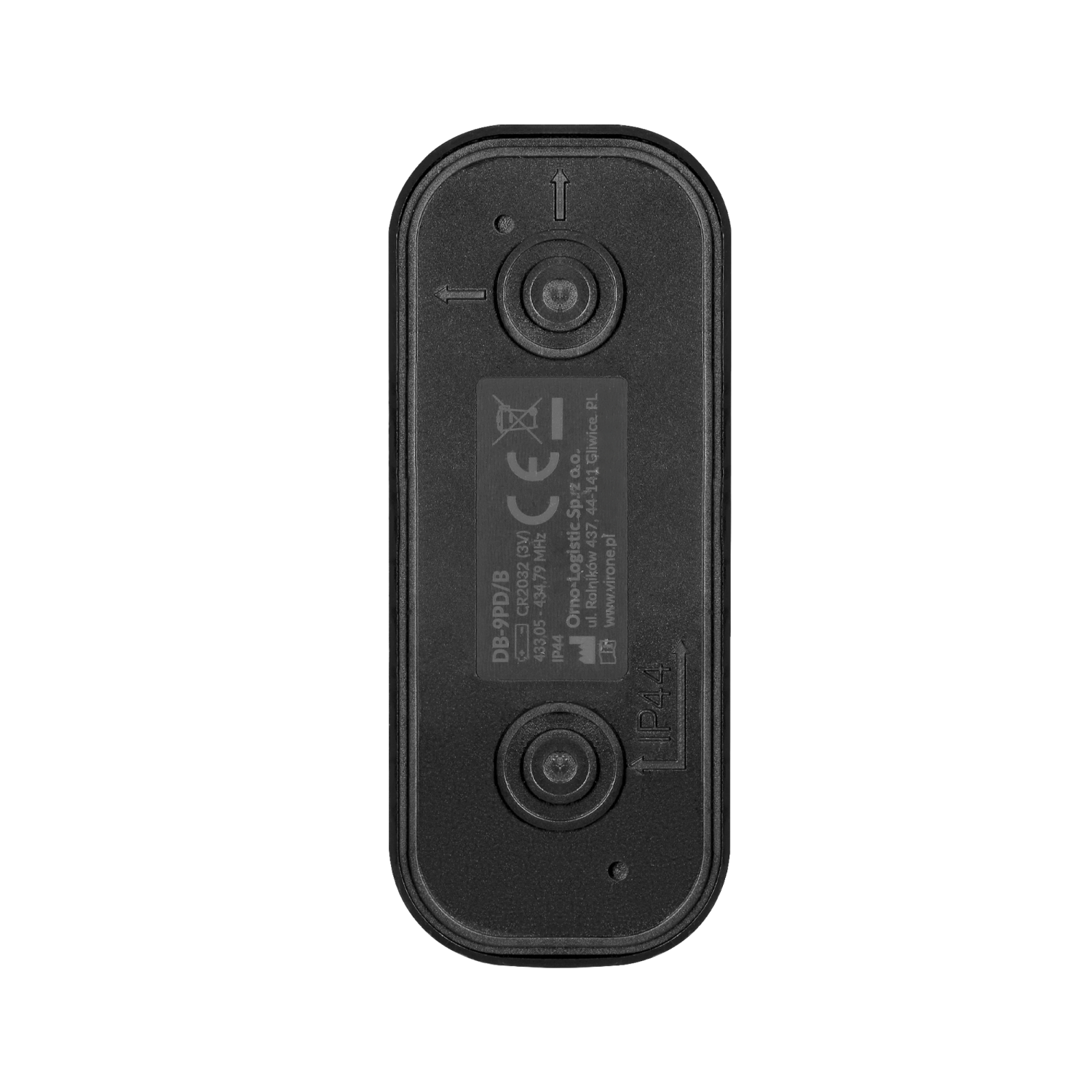

The battery-operated wireless button for the extension of FUDU series is a device that is completely independent of the electrical installation. The transmitter uses a CR2032 battery (battery included). The device operates on a stable frequency of 433.92MHz. It reaches the range of up to 180 m in the open field.
The IP44 rate guarantees resistance to moisture and dust. As a result, the transmitter may be installed at the door, wicket or gate without worrying about its durability in changing weather conditions. In addition, it is equipped with a backlit and a name plate, which increases its functionality and facilitates identification. Dimensions measure 89x36x16 mm. Black colour.
| General information: | |
|---|---|
| Wireless: | tak |
| Type of current: | DC |
| Nominal voltage [V]: | 3 |
| Battery - type and quantity : | CR2032 |
| Built-in battery: | tak |
| Transmitter max. power [mW]: | 10 |
| Degree of protection (IP): | IP44 |
| With lighting: | tak |
| With name plate: | tak |
| Shape: | Prostokątny |
| Colour: | Czarny |
| Material: | Tworzywo sztuczne |
| Mounting method: | Montaż natynkowy |
| Width [mm]: | 89 |
| Height [mm]: | 36 |
| Depth [mm]: | 16 |
